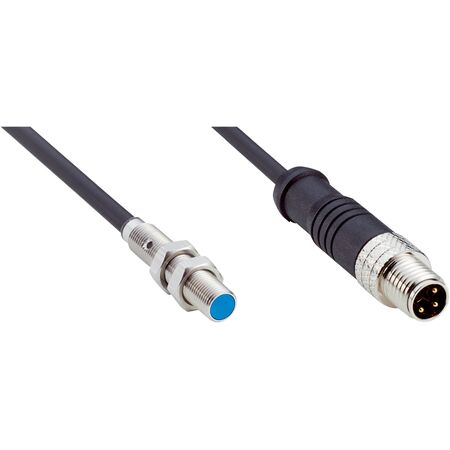

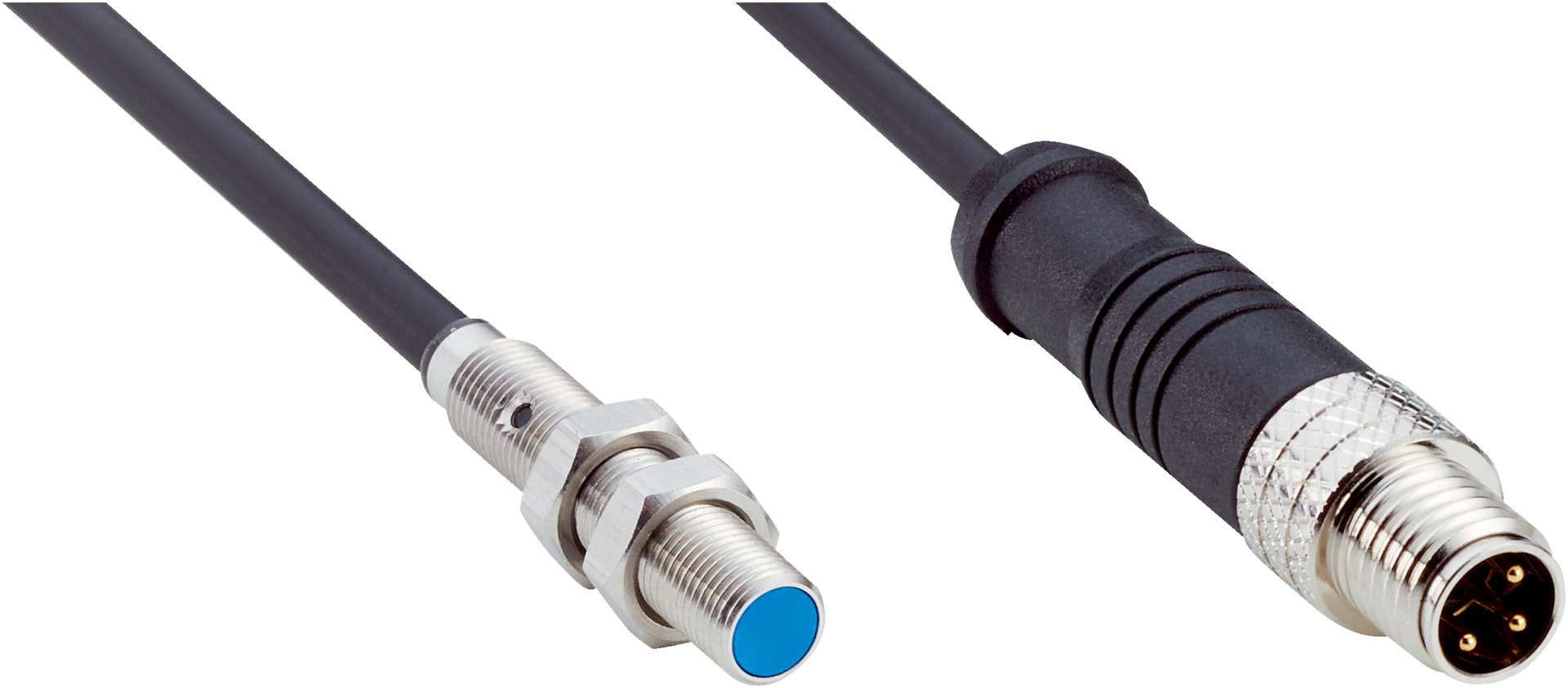

M5 Inductive Proximity Sensor | IP67 Rated | 1.5mm Sensing Range | 4800Hz Switching Frequency | by SICK
The M5 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 1.5 mm and a robust IP67 rated enclosure. With a high switching frequency of 4,800 Hz and a durable stainless steel housing, this sensor is perfect for metal detection and position sensing in machinery, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally open (NO)
- Switching frequency: 4,800 Hz
- Sensing range (Sn): 1.5 mm
- Safe sensing range (Sa): 1.215 mm
- Connection type: Cable with M8, 3-pin connector, 0.2 m length
- Enclosure rating: IP67
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Operating temperature: -25 °C to +70 °C
- Short-circuit and power-up pulse protection included
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Dimensions (H x L x W): 5mm x 25mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type with IP67 rated enclosure
- Switching frequency up to 4,800 Hz with PNP normally open output
- Visual adjustment indicator and IO-Link communication interface
- Robust stainless steel V2A housing and plastic sensing face
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and configuration of the sensor and IO-Link communication.
Applications
- Industrial automation for object detection
- Metal detection in manufacturing processes
- Position sensing in machinery
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMM05-1B5PSVR8S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
