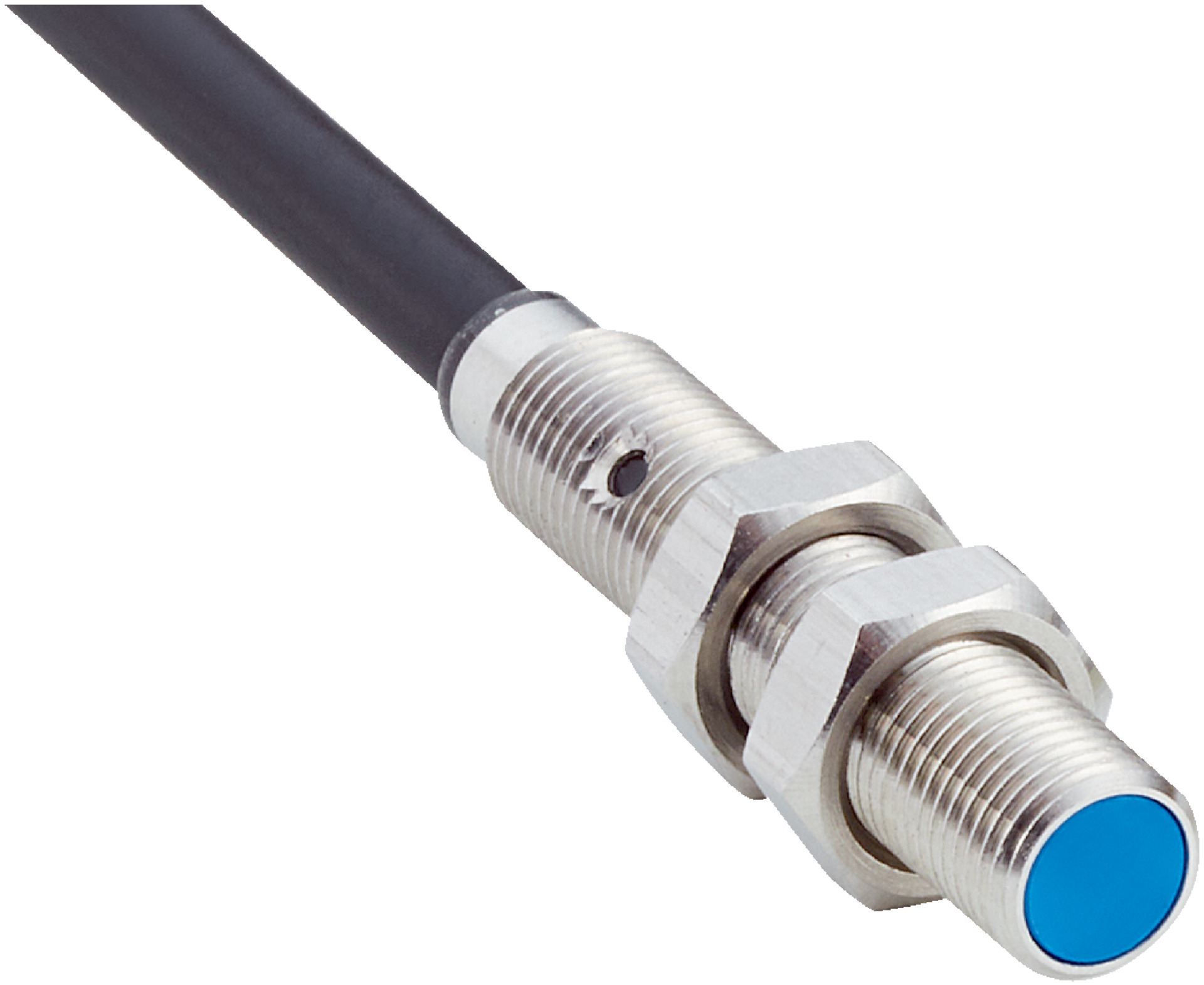

M5 Inductive Proximity Sensor | IP67 Rated | 1.5mm Sensing Range | 4800Hz Switching Frequency | by SICK
The M5 Inductive Proximity Sensor is designed for precision in industrial automation, featuring a 1.5mm sensing range and a high switching frequency of 4,800 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and position sensing in manufacturing lines. Its durable stainless steel housing and visual adjustment indicator enhance usability and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M5 x 0.5
- Diameter: 5 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Installation type: Flush
- Switching frequency: 4,800 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Visual adjustment indicator included
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- EMC: EN 60947-5-2 compliant
- Continuous current Ia: ≤ 200 mA
- Cable diameter: 2.9 mm
- Short-circuit and power-up pulse protection
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -30 °C to +70 °C
- Housing length: 25 mm
- Thread length: 23 mm
- Tightening torque max: ≤ 1.5 Nm
- Dimensions (H x L x W): 25mm x 25mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Flush installation type with 1.5 mm sensing range
- High switching frequency of 4,800 Hz
- PNP switching output with NC function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Supplied with stainless steel mounting nuts and washers
- Cable connection: 3-wire, 2 m PUR cable
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide operating temperature range from -30 °C to +70 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

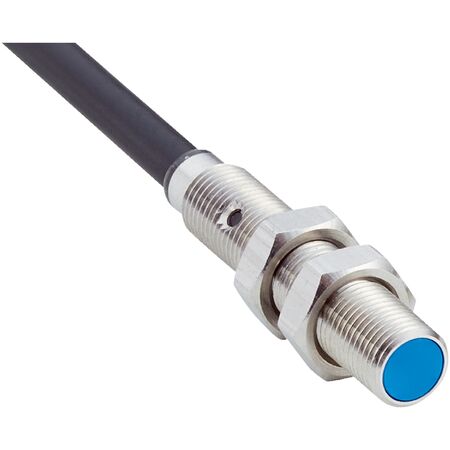

The SICK IMM05-1B5POVU2SS02 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
