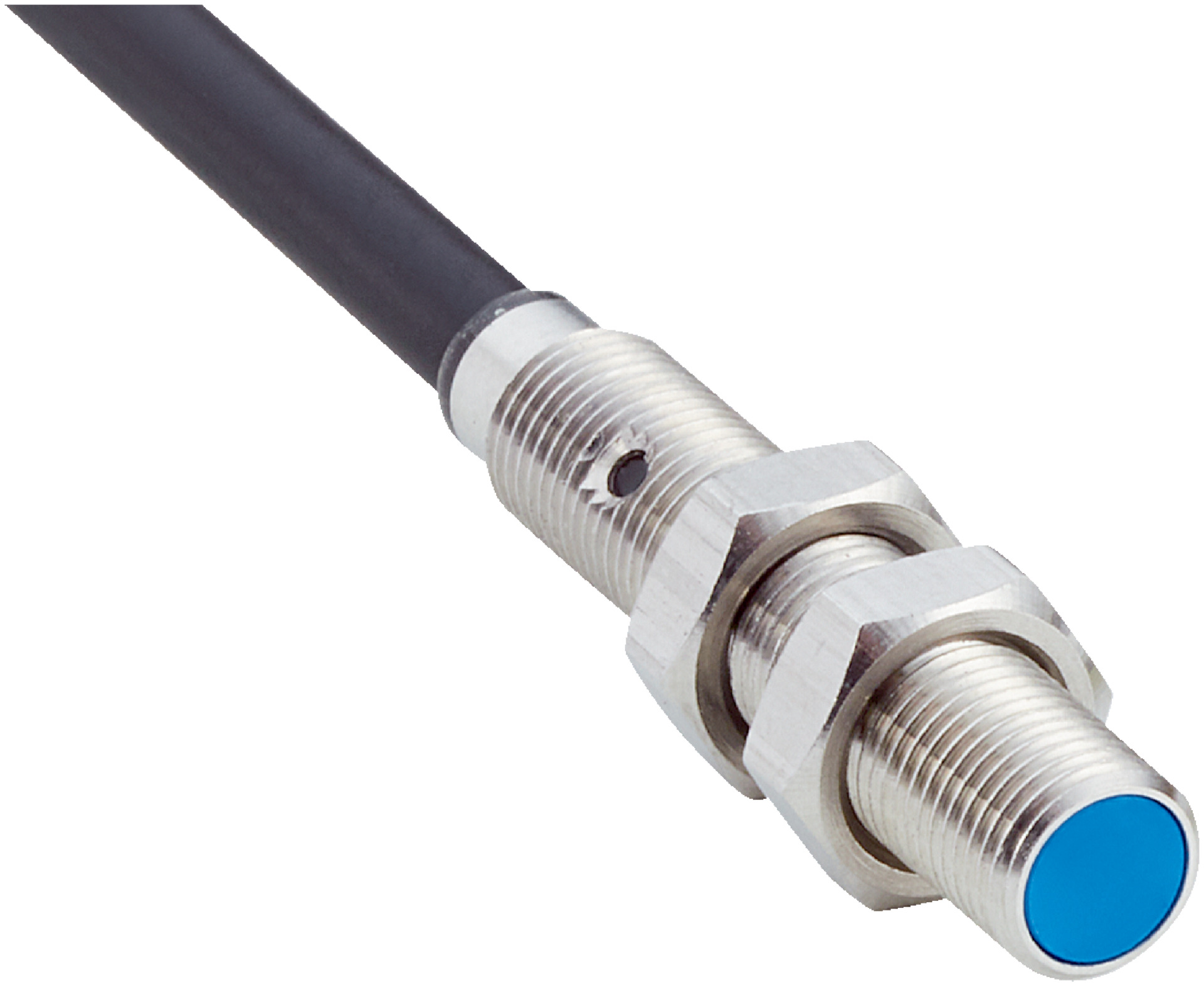

M5 Inductive Proximity Sensor | IP67 Rated | 1.5mm Sensing Range | PNP Output | by SICK
The M5 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a sensing range of 1.5 mm and an IP67 rated enclosure for robust performance. With a PNP normally closed output and a high switching frequency of 4,800 Hz, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring safety and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Switching output: PNP, normally closed (NC)
- Switching frequency: 4,800 Hz
- Connection: 3-wire cable, 2 m length, PUR material
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Short-circuit and power-up pulse protection included
- MTTFD: 1,350 years
- Mission time: 20 years
- Dimensions (H x L x W): 5mm x 25mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type with IP67 rated enclosure
- Switching frequency up to 4,800 Hz with PNP normally closed output
- Visual adjustment indicator for easy setup
- Cable connection type: 3-wire, 2 meters long
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +70 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303) with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption design supports energy efficiency
- Robust protection against environmental factors reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

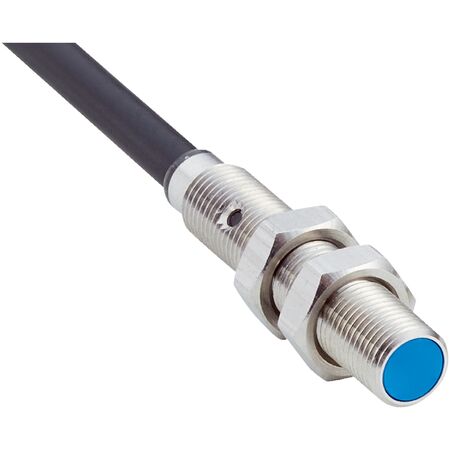

The SICK IMM05-1B5POVU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
