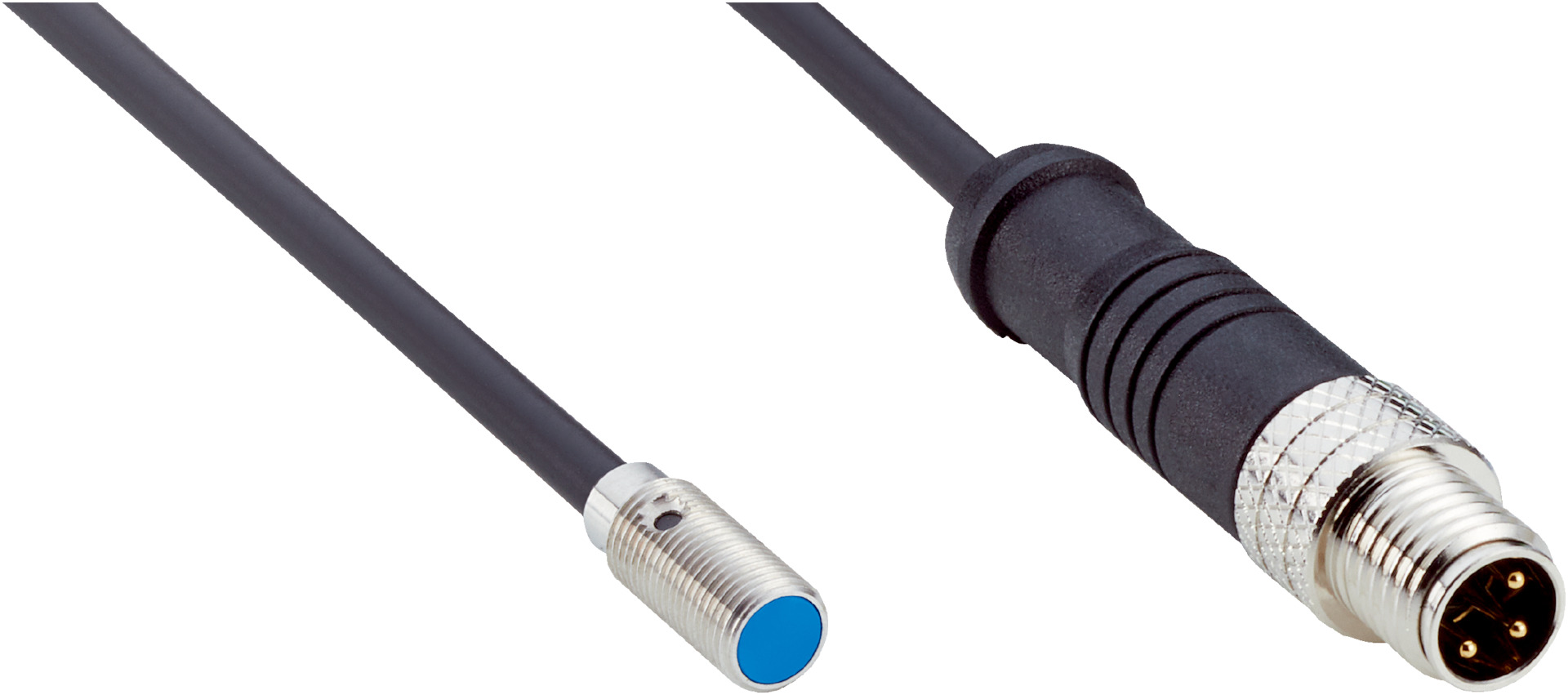

M5 Inductive Proximity Sensor | Short-body Design | 2.5mm Sensing Range | IP67 Rated | by SICK
The M5 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a short-body design and a sensing range of 2.5 mm. With an IP67 rated enclosure, it withstands harsh environments while providing reliable performance. Ideal for factory automation, this sensor supports IO-Link communication for enhanced functionality and predictive maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 100 mA
- Cable material: PUR, diameter 2.9 mm
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Thread length: 10 mm
- Tightening torque max: ≤ 1.5 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC standard: EN 60947-5-2
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 12mm x 22mm x 5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M5 x 0.5 thread size
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- Quasi-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- Cable with M8 3-pin connector, 0.2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication
- Triple sensing range capability
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Factory automation requiring precise sensing
- Harsh environments needing IP67 rated sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient sensor operation minimizes power consumption
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

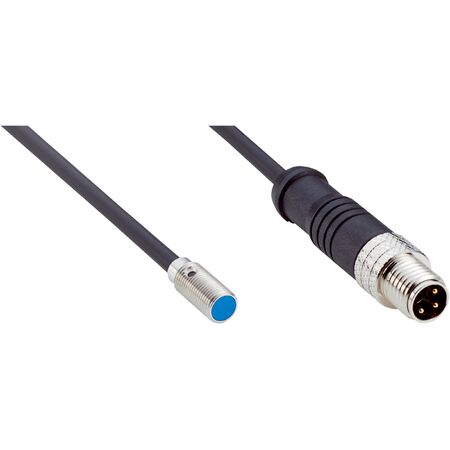

The SICK IMM05-2B5PSVR8K inductive sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
