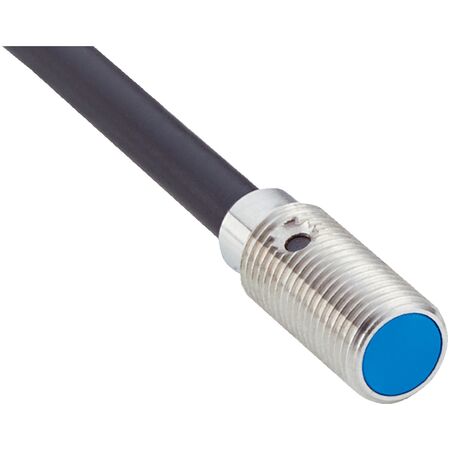

M5 Inductive Proximity Sensor | Short-body Stainless Steel | IP67 Rated | 1.5mm Sensing Range | by SICK
The M5 Inductive Proximity Sensor is designed for precision in industrial automation, featuring a short-body stainless steel housing and a sensing range of 1.5 mm. With an IP67 enclosure rating and a high switching frequency of 4,800 Hz, this sensor is perfect for object detection and position sensing in tight spaces, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M5 x 0.5
- Diameter: 5 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Installation type: Flush
- Switching frequency: 4,800 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable diameter: 2.9 mm
- Short-circuit and power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing length: 12 mm
- Thread length: 10 mm
- Tightening torque max: ≤ 1.5 Nm
- Dimensions (H x L x W): 12mm x 22mm x 5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M5 x 0.5 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type with IP67 enclosure rating
- High switching frequency of 4,800 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- Visual adjustment indicator for easy setup
- Robust stainless steel V2A housing and plastic sensing face
- Cable connection type with 2 m PUR cable
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper function and compliance.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
- Flush installation in tight spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire design
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMM05-1B5NSVU2K inductive sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
