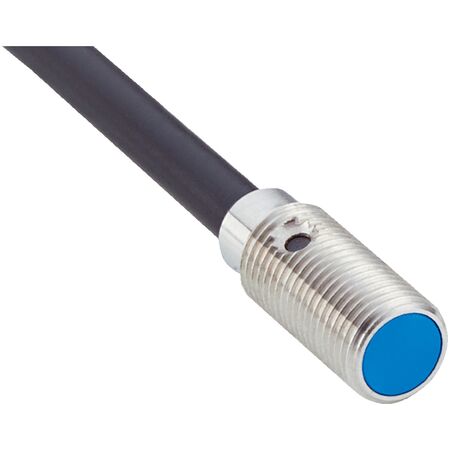

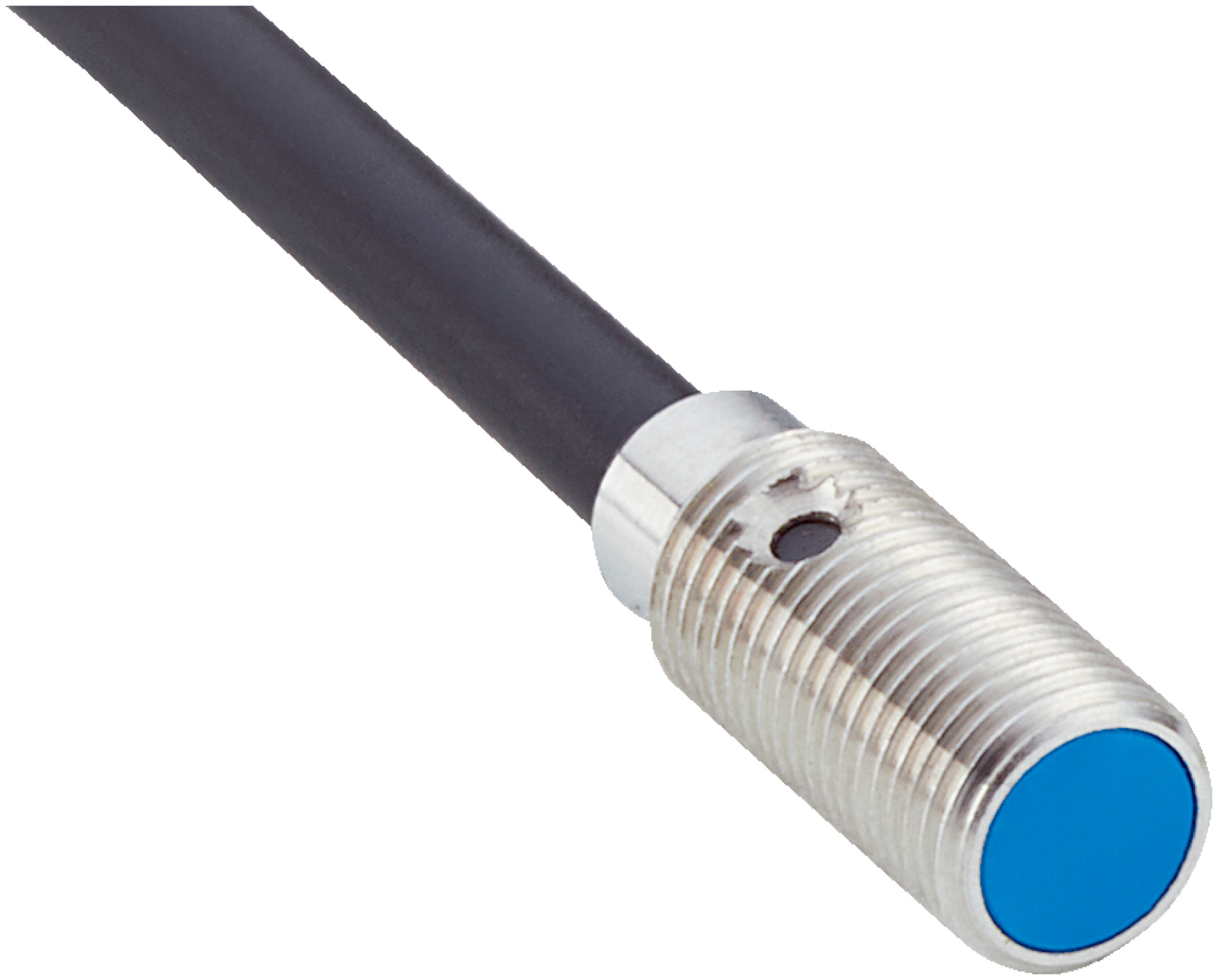

M5 Inductive Proximity Sensor | Short-body Stainless Steel | 1.5mm Sensing Range | IP67 Rated | by SICK
The M5 Inductive Proximity Sensor is designed for industrial automation, featuring a short-body stainless steel housing and a sensing range of 1.5 mm. With an IP67 rating and a high switching frequency of 4,800 Hz, this sensor is perfect for object detection and position sensing in manufacturing lines, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M5 x 0.5
- Diameter: 5 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Installation type: Flush
- Switching frequency: 4,800 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable diameter: Ø 2.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Housing length: 12 mm
- Thread length: 10 mm
- Tightening torque max: ≤ 1.5 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 12mm x 22mm x 5mm
- Weight: 0.1 kg
Key Features
- Short-body M5 housing with stainless steel V2A material
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type with IP67 rated enclosure
- High switching frequency of 4,800 Hz with PNP normally open output
- Visual adjustment indicator and IO-Link V1.1 communication interface
- Cable connection type: 3-wire, 2 m PUR cable
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure correct flush installation and compliance with IP67 protection.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring compact sensors with IO-Link communication
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link communication enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMM05-1B5PSVU2K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications requiring compact and reliable sensing solutions.
