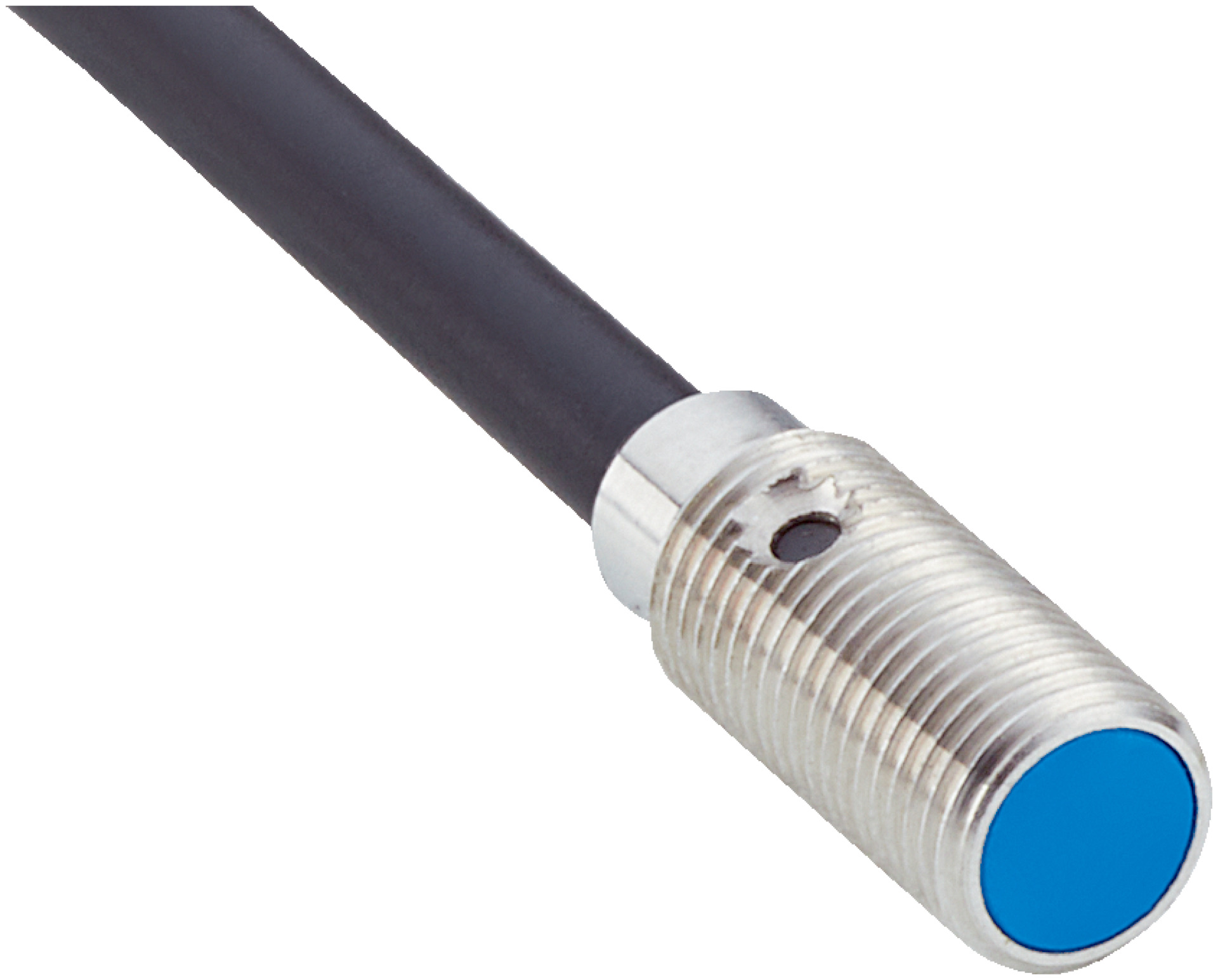

M5 Inductive Proximity Sensor | Short-body Stainless Steel | 2.5mm Sensing Range | IP67 Rated | by SICK
The M5 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a short-body stainless steel housing and a sensing range of 2.5 mm. With a high switching frequency of 4,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for position sensing in machinery and metal detection applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M5 x 0.5
- Diameter: 5 mm
- Sensing range Sn: 2.5 mm
- Safe sensing range Sa: 2.025 mm
- Installation type: Quasi-flush
- Switching frequency: 4,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR
- Conductor size: 0.14 mm²
- Cable diameter: 2.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -10 °C to +60 °C
- Sensing face material: Plastic, LCP
- Housing length: 12 mm
- Thread length: 10 mm
- Tightening torque max: ≤ 1.5 Nm
- Dimensions (H x L x W): 12mm x 22mm x 5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M5 x 0.5 thread size
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- Quasi-flush installation type
- High switching frequency of 4,000 Hz
- NPN normally open switching output
- Cable connection, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and triple sensing range
- Mounting accessories included: stainless steel nuts and washers
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide supply voltage range from 10 V DC to 30 V DC
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
- Automation systems requiring compact sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption with efficient DC 3-wire electrical wiring
- Robust design minimizes environmental impact through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

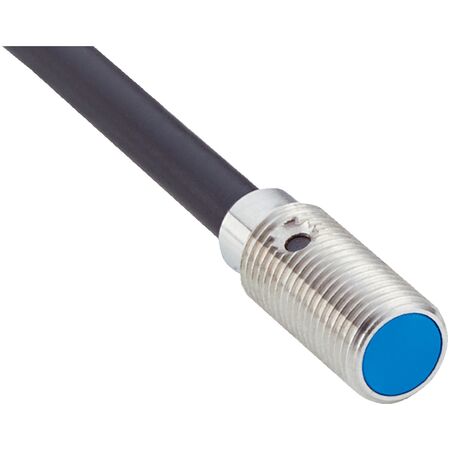

The SICK IMM05-2B5NSVU2K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
