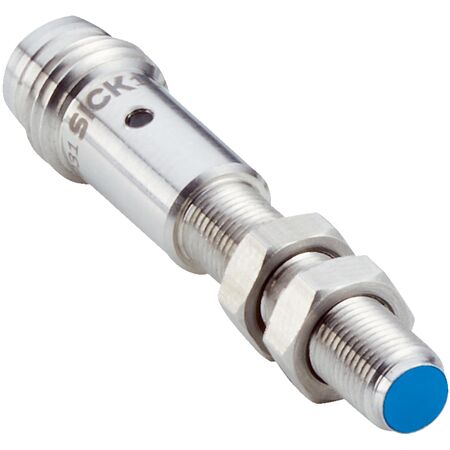

M5 Inductive Proximity Sensor | Stainless Steel V2A | 0.8mm Sensing Range | IP67 Rated | by SICK
The M5 Inductive Proximity Sensor is designed for precision in industrial automation, featuring a durable stainless steel V2A housing and a sensing range of 0.8 mm. With a high switching frequency of 5,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for applications like object detection and position sensing in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M5 x 0.5
- Diameter: 5 mm
- Sensing range Sn: 0.8 mm
- Safe sensing range Sa: 0.648 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 38 mm
- Thread length: 20 mm
- Tightening torque max: ≤ 1.5 Nm
- Dimensions (H x L x W): 38mm x 38mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Flush installation type with stainless steel V2A housing
- Sensing range of 0.8 mm with safe sensing range of 0.648 mm
- High switching frequency of 5,000 Hz
- NPN normally closed switching output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Includes mounting nuts and washers made of V2A stainless steel
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
- Complies with EMC standard EN 60947-5-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring flush mounting sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire wiring
- High reliability reduces replacement frequency and material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMM05-0B8NOVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications requiring compact, flush-mounted sensors.
