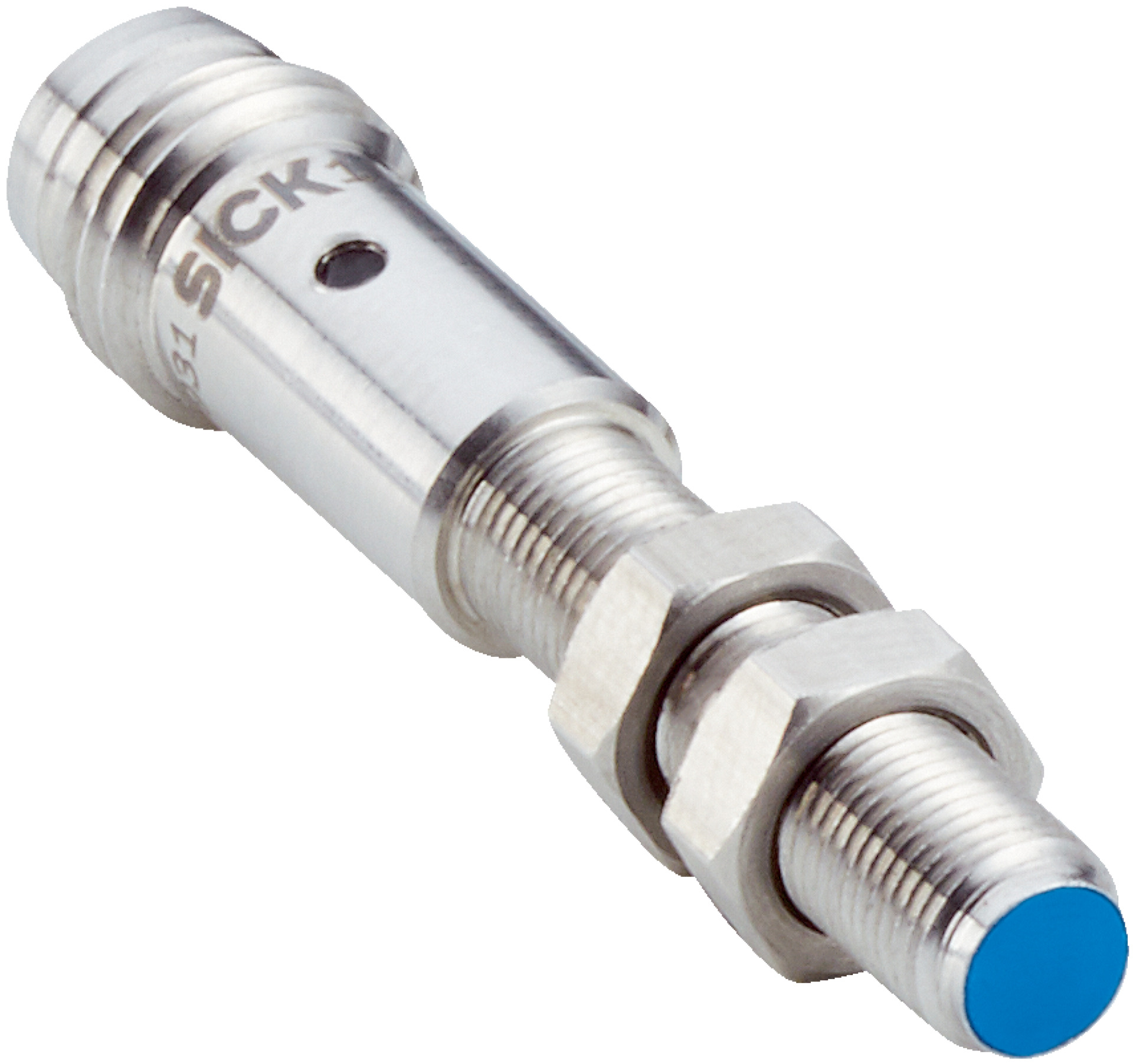

M5 Inductive Proximity Sensor | Stainless Steel Housing | 2.5mm Sensing Range | IP67 Rated | by SICK
The M5 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a durable stainless steel housing and a sensing range of 2.5 mm. With a high switching frequency of 4,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing lines and automation systems requiring reliable proximity sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A, DIN 1.4305 / AISI 303
- Thread size: M5 x 0.5
- Diameter: 5 mm
- Sensing range Sn: 2.5 mm
- Safe sensing range Sa: 2.025 mm
- Installation type: Quasi-flush
- Switching frequency: 4,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -10 °C to +60 °C
- Sensing face material: Plastic, LCP
- Housing length: 38 mm
- Thread length: 20 mm
- Tightening torque max: ≤ 1.5 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 38mm x 38mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- Quasi-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication
- Triple sensing range capability
- Includes mounting nut and stainless steel washers with locking teeth
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM05-2B5PSVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and precise proximity sensing applications.
