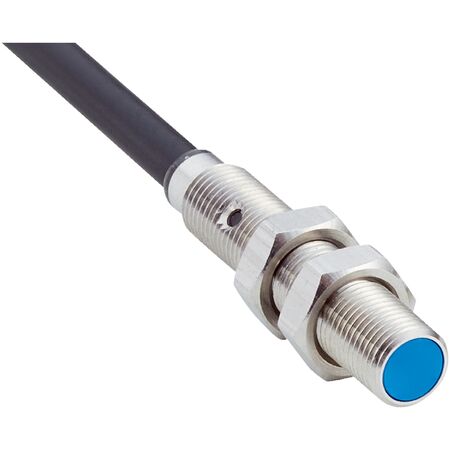

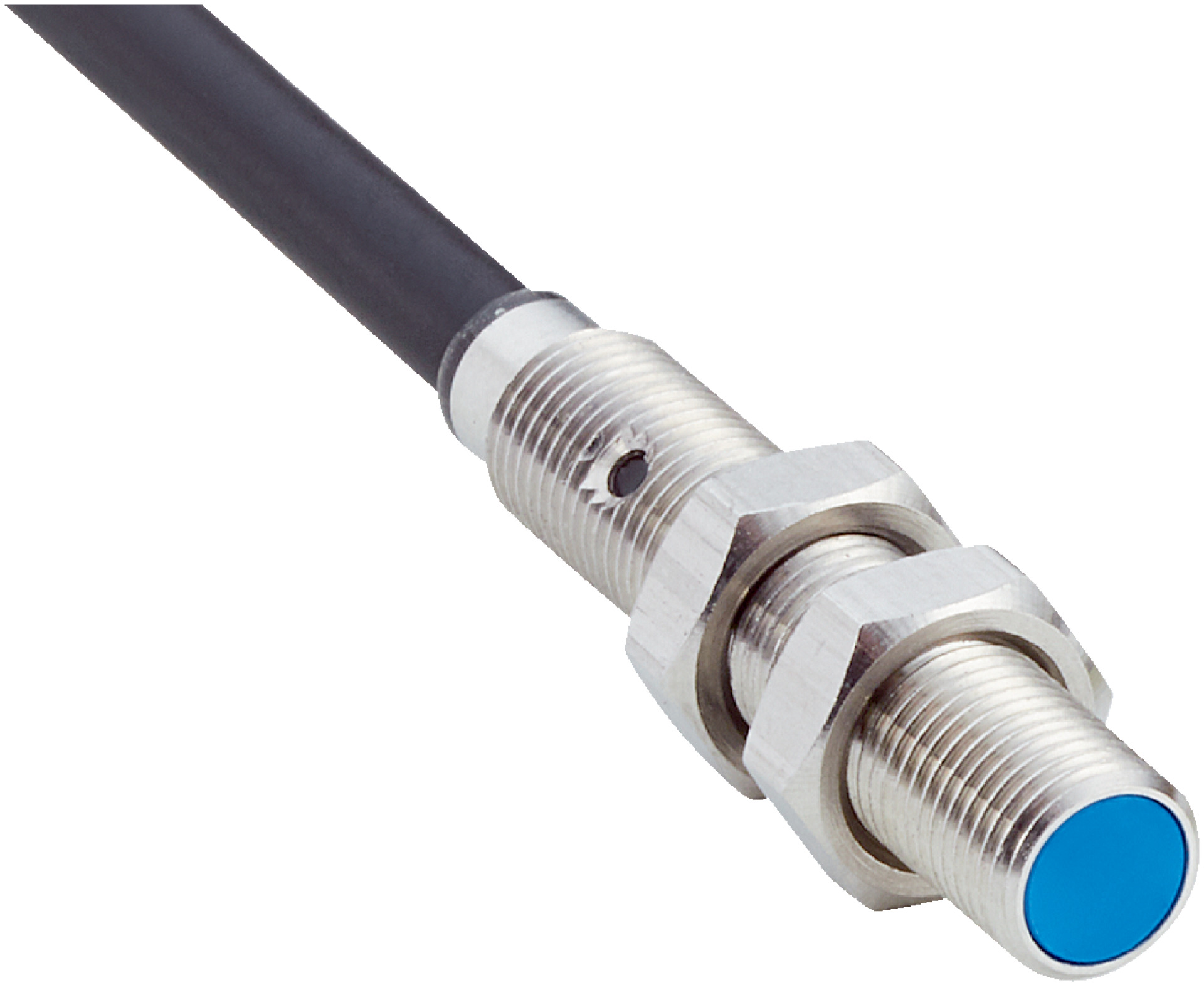

M5 Inductive Proximity Sensor | Stainless Steel Housing | IP67 Rated | 0.8mm Sensing Range | by SICK
The M5 Inductive Proximity Sensor is designed for precision in industrial automation, featuring a robust stainless steel housing and an impressive sensing range of 0.8 mm. With a high switching frequency of 5,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for applications in manufacturing lines and metal detection, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M5 x 0.5
- Diameter: 5 mm
- Sensing range Sn: 0.8 mm
- Safe sensing range Sa: 0.648 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable diameter: 2.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Dimensions (H x L x W): 5mm x 25mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 0.8 mm with safe sensing range of 0.648 mm
- Flush installation type
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Cable connection type: 3-wire, 2 m PUR cable
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Operating temperature range from -25 °C to +70 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Communication via IO-Link V1.1 with COM2 (38.4 kBaud)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush mounting sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient switching output
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMM05-0B8PSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
