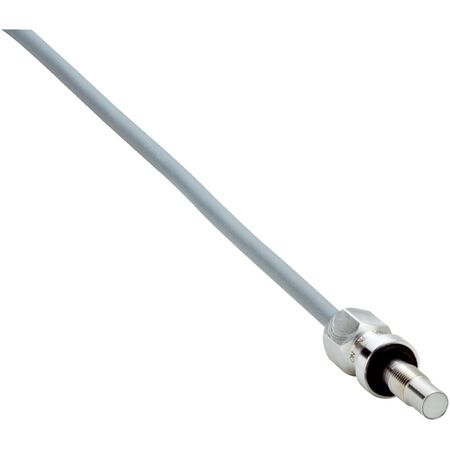

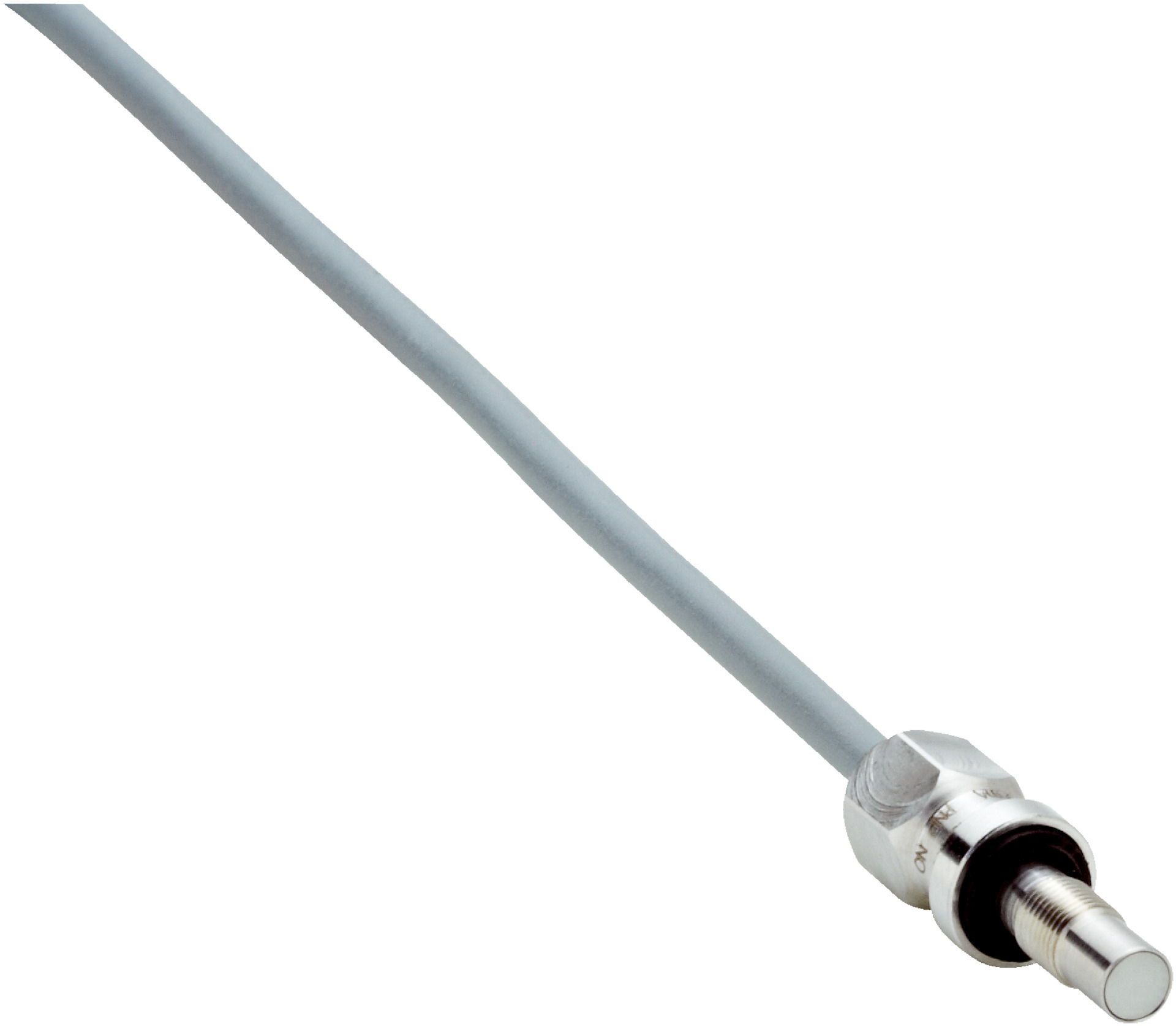

M5 Proximity Sensor | IP68 Rated | High Pressure Resistance | 1mm Sensing Range | by SICK
The M5 Proximity Sensor is designed for hydraulic applications, featuring an IP68 rating for dust and water protection, and a high pressure resistance of up to 500 bar. With a sensing range of 1 mm and a switching frequency of 1,000 Hz, this sensor is perfect for industrial automation and machinery sensing, ensuring reliable performance in environments with high shock and vibration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally open
- Switching frequency: 1,000 Hz
- Sensing range (Sn): 1 mm
- Safe sensing range (Sa): 0.8 mm
- Voltage drop: ≤ 2 V
- Ripple: ≤ 20%
- Continuous current: ≤ 200 mA
- Housing material: Phynox (DIN 2.4711)
- Sensing face material: Ceramics (ZrO2)
- Cable: PUR, 3-wire, 2 m length, 0.14 mm² conductor size
- Enclosure rating: IP68
- Operating temperature: -25 °C to +100 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Short-circuit protection: Yes
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 27mm x 27mm x 5mm
- Weight: 0.1 kg
Key Features
- Metric housing with M5 x 0.5 thread size
- Diameter of 5 mm with flush installation type
- Pressure resistance up to 500 bar
- Sensing range of 1 mm with safe sensing range of 0.8 mm
- Switching frequency of 1,000 Hz with PNP normally open output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 for dust and water protection
- High temperature resistance from -25 °C to +100 °C
- Shock and vibration resistant up to 30 g and 10-55 Hz
- Short-circuit protection included
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct mounting, wiring, and compliance with safety standards.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Environments with high shock and vibration
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy efficient operation with low voltage DC supply
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMP05-01BPSVU2S proximity sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure and temperature resistance.
