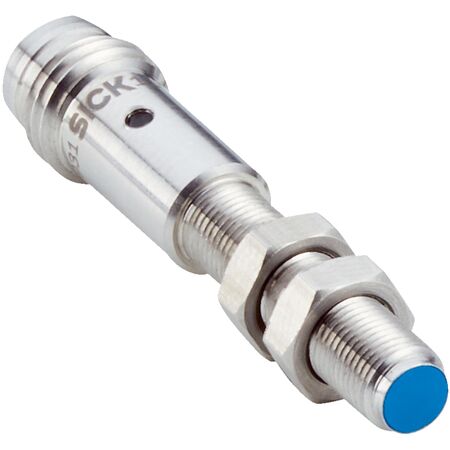

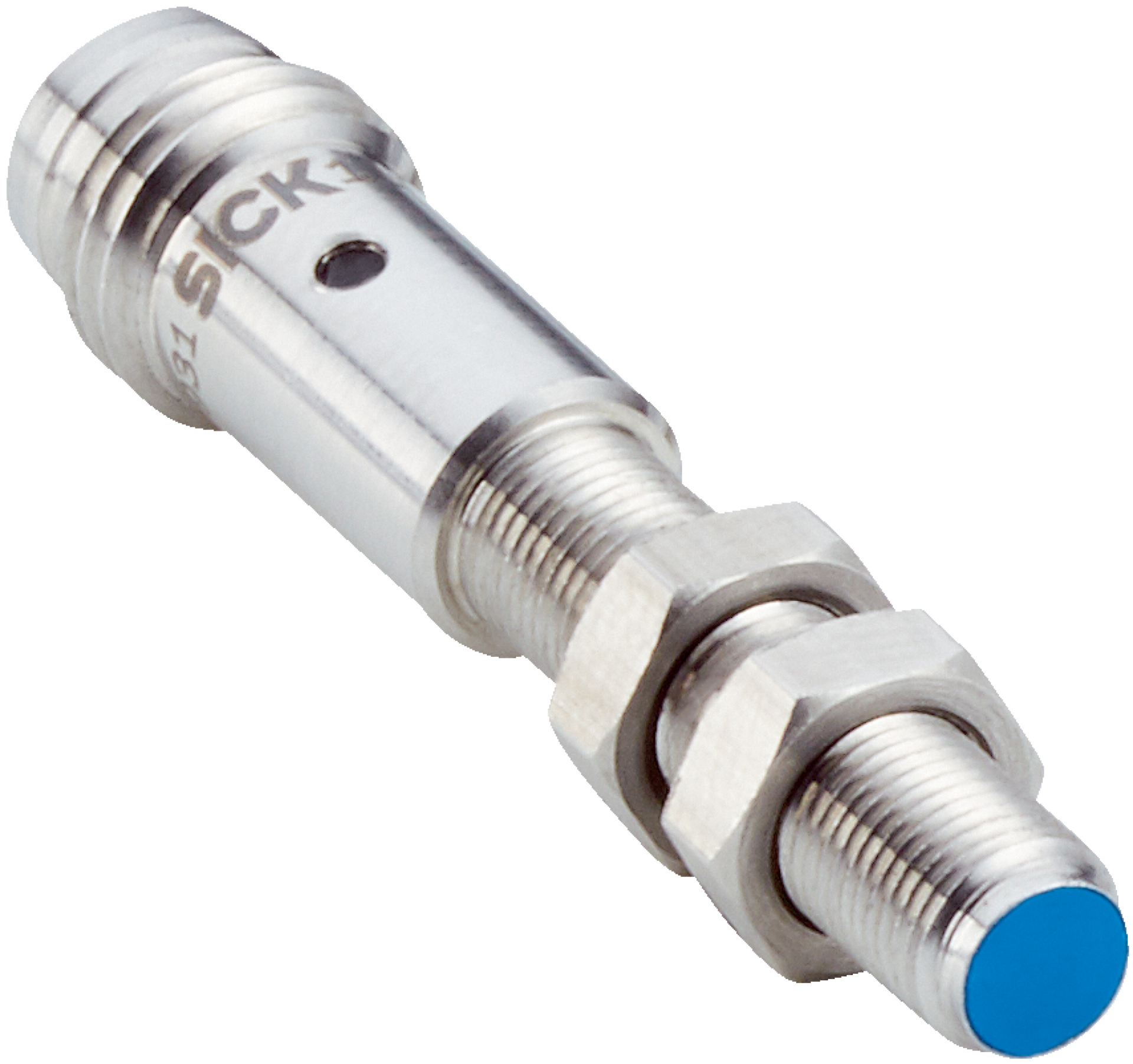

M5 Proximity Sensor | NPN NC Switching Output | IP67 Rated | Flush Mount | by SICK
The M5 Proximity Sensor is designed for reliable object detection in industrial automation, featuring a robust NPN normally closed switching output and an IP67 rated enclosure for protection against dust and water. With a sensing range of 1.5 mm and a high switching frequency of 4,800 Hz, it's perfect for machine safety and control systems, ensuring precise position sensing in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Switching frequency: 4,800 Hz
- Switching output: NPN normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Connector type: M8, 3-pin
- Mounting: Flush
- Thread size: M5 x 0.5
- Housing length: 38 mm
- Thread length: 20 mm
- Tightening torque max: ≤ 1.5 Nm
- Dimensions (H x L x W): 38mm x 38mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type with IP67 rated enclosure
- Switching frequency up to 4,800 Hz
- NPN normally closed (NC) switching output
- Visual adjustment indicator for easy setup
- Includes mounting nuts and washers in stainless steel
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide operating temperature range from -25 °C to +70 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Connector M8, 3-pin connection type
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connections according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM05-1B5NOVT0S proximity sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
