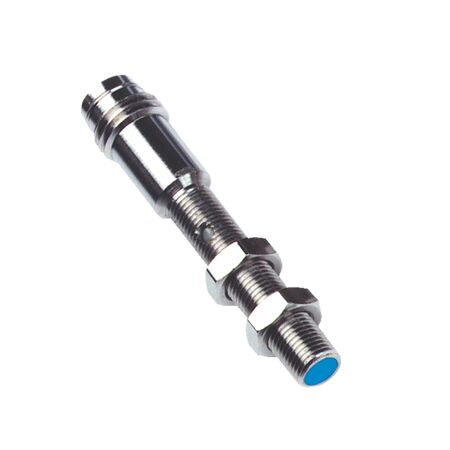

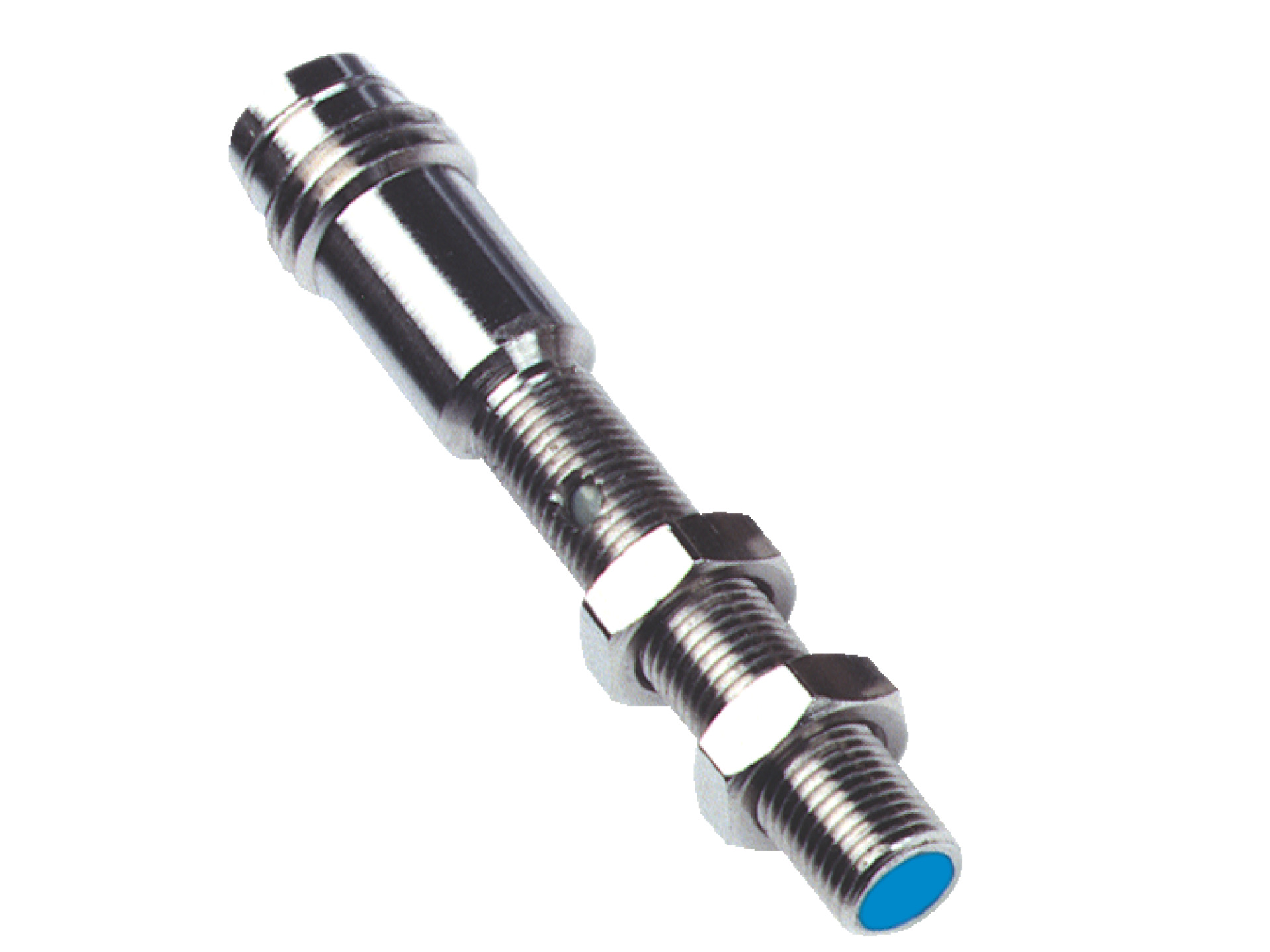

M5 Proximity Sensor | Stainless Steel Housing | 1.5mm Sensing Range | IP67 Rated | by SICK
The M5 Proximity Sensor is designed for precision in industrial automation, featuring a durable stainless steel housing and a sensing range of 1.5 mm. With a high switching frequency of 3,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for machine safety and control systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Stainless steel V2A, DIN 1.4305 / AISI 303
- Thread size: M5 x 0.5
- Diameter: 5 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Installation type: Flush
- Switching frequency: 3,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP
- Output function: NC
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- EMC: EN 60947-5-2, IEC 61000-4-2 (Testlevel 2), IEC 61000-4-4 (Testlevel 3)
- Short-circuit protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +70°C
- Housing length: 38 mm
- Thread length: 22 mm
- Tightening torque max: ≤ 1.8 Nm
- Dimensions (H x L x W): 5mm x 38mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with M5 x 0.5 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 3,000 Hz
- PNP switching output with NC output function
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Short-circuit protection and shock/vibration resistance
- Wide operating temperature range from -25°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper flush installation and secure connection.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Metal detection in manufacturing lines
- Robotics and assembly line sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IM05-1B5POVT0S proximity sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
