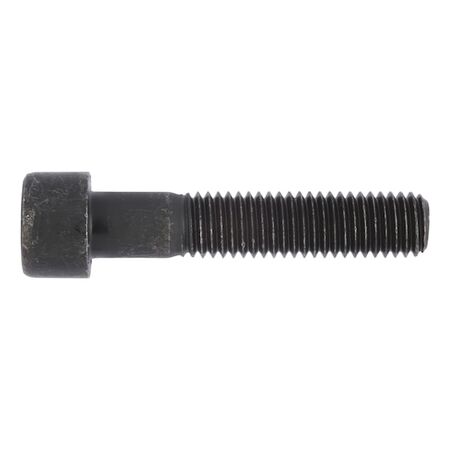

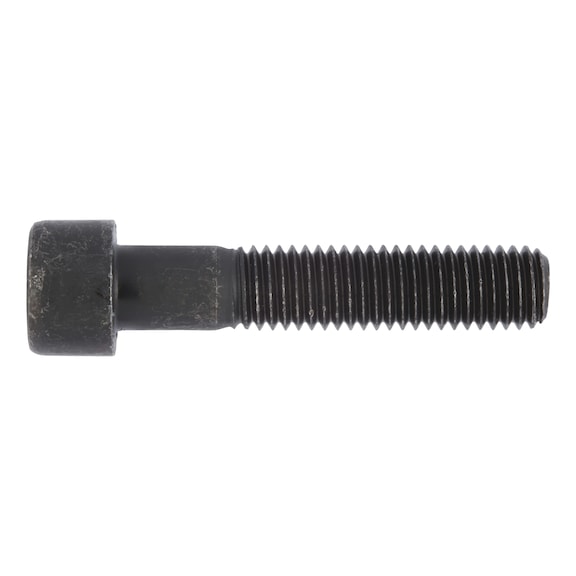

M5 Socket Head Cap Screw | High-Strength Steel | Hexagon Drive | RoHS Compliant | by Wurth
The M5 Socket Head Cap Screw is crafted from high-strength steel with a property class of 12.9, ensuring durability and reliability in mechanical assemblies. Featuring a hexagon internal drive for secure tightening, this screw is perfect for industrial machinery, automotive, and engineering applications. Its plain surface finish and RoHS compliance make it an environmentally safe choice for your fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Socket Head Cap Screw | High-Strength Steel | Hexagon Drive | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 83535
Alternatively Known As: M5 Socket Head Cap Screw, Hex Socket Bolt M5, Metric Socket Head Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 35 mm
- Head diameter (dk): 8.5 mm
- Head height (k1): 5 mm
- Standards: ISO 4762
- Material: Steel
- Property class: 12.9
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive (s1): HS4
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 5mm x 35mm x 8.5mm
- Weight: 0.1 kg
Key Features
- Made from high-strength steel with property class 12.9
- Socket head with hexagon internal drive (HS4) for secure tightening
- Plain surface finish
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel using appropriate hex key tools is recommended to ensure proper torque and safety.
Applications
- Mechanical assemblies requiring high-strength fastening
- Industrial machinery and equipment
- Automotive and engineering applications
Standards & Compliance
- AS/NZS 4762 – Socket Head Cap Screws (aligned with ISO 4762)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances impact
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M5 x 35mm Socket Head Bolt is available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
