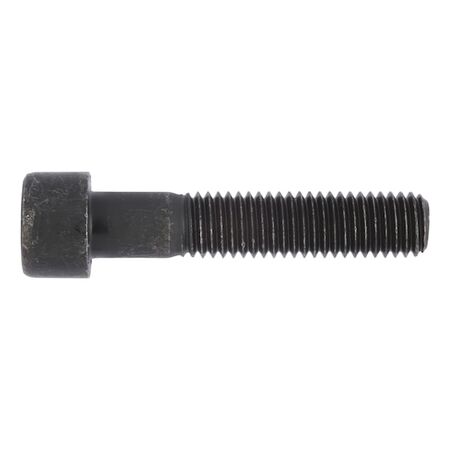

M5 Socket Head Cap Screw | High-Strength Steel | Hexagon Socket Drive | RoHS Compliant | by Wurth
The M5 Socket Head Cap Screw is crafted from high-strength steel with a property class of 12.9, making it ideal for mechanical assemblies requiring robust fastening. Featuring a hexagon socket drive for secure installation, this screw is RoHS-compliant, ensuring environmental safety. Perfect for industrial machinery, automotive, and engineering applications, it guarantees reliability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Socket Head Cap Screw | High-Strength Steel | Hexagon Socket Drive | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 83512
Alternatively Known As: M5 Socket Head Cap Screw, Hex Socket Bolt M5, Metric Socket Head Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 12 mm
- Head diameter (dk): 8.5 mm
- Head height (k1): 5 mm
- Standards: ISO 4762
- Material: Steel
- Property class: 12.9
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive (s1): HS4
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 5mm x 12mm x 8.5mm
- Weight: 0.1 kg
Key Features
- Made from high-strength steel with property class 12.9
- Socket head with hexagon internal drive (HS4) for secure fastening
- Metric thread type with standard metric thread form
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and fastening integrity.
Applications
- Mechanical assemblies requiring high strength fasteners
- Industrial machinery and equipment
- Automotive and engineering applications
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances impact
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth M5 x 12mm Socket Head Bolt is available for immediate purchase, ideal for industrial and mechanical fastening applications.
