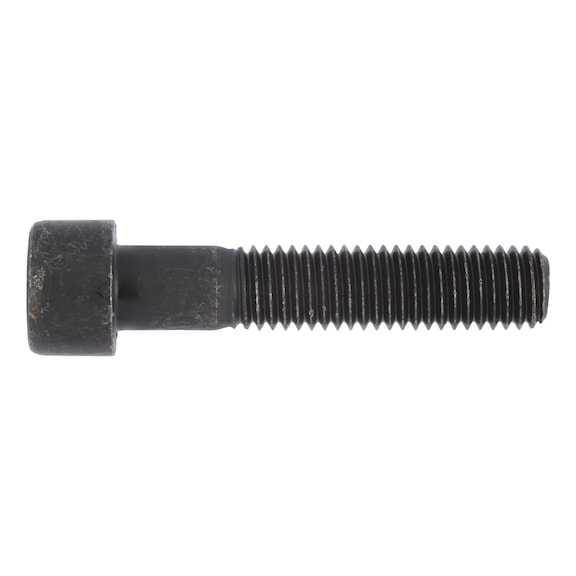

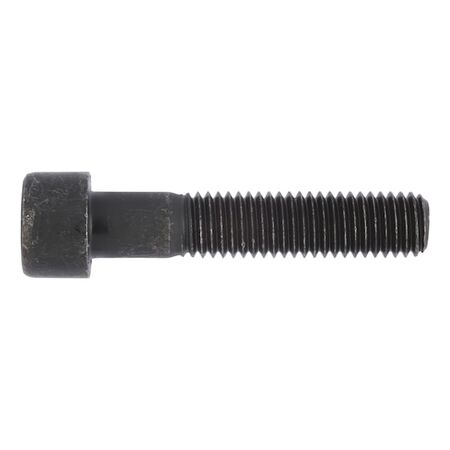

M5 Socket Head Cap Screw | High Strength Steel | RoHS Compliant | by Wurth
The M5 Socket Head Cap Screw is crafted from high strength steel with a property class of 12.9, making it ideal for mechanical assemblies and industrial applications. Featuring a hexagon socket drive and RoHS-compliant plain surface, this bolt ensures reliability and safety in automotive and engineering projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Socket Head Cap Screw | High Strength Steel | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 83520
Alternatively Known As: M5 Socket Head Cap Screw, Hex Socket Bolt M5, Metric Socket Head Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 20 mm
- Head diameter (dk): 8.5 mm
- Head height (k1): 5 mm
- Standards: ISO 4762
- Material: Steel
- Property class: 12.9
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive (s1): HS4
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 5mm x 20mm x 8.5mm
- Weight: 0.1 kg
Key Features
- High strength steel with property class 12.9
- Metric thread with standard metric thread form
- Socket head with hexagon internal drive (HS4)
- RoHS-compliant plain surface finish
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate tools to ensure correct torque and safety.
Applications
- Mechanical assemblies requiring high strength fasteners
- Industrial machinery and equipment
- Automotive and engineering applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth M5 x 20mm Socket Head Bolt is available for immediate purchase, ideal for industrial and mechanical fastening applications.
