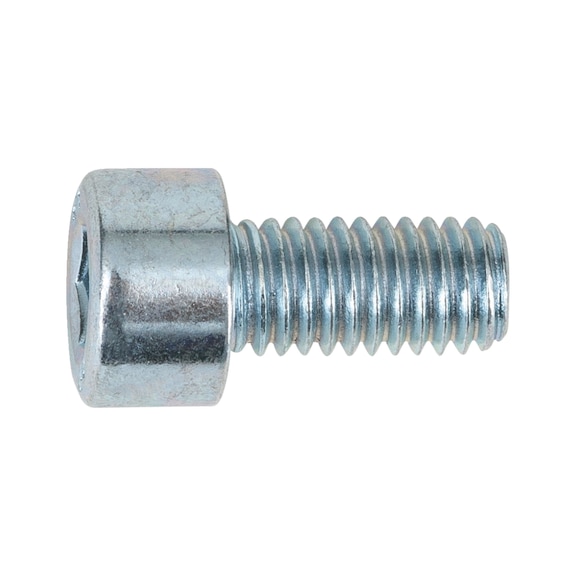

M5 Socket Head Cap Screw | Zinc Plated Steel | ISO 4762 Compliant | by Wurth
The M5 Socket Head Cap Screw is crafted from high-strength steel with a zinc plated surface for enhanced corrosion resistance. Ideal for mechanical assemblies, industrial machinery, and automotive applications, this screw features a secure hexagon socket drive for reliable fastening. With a full metric thread and compliance to ISO 4762 standards, it ensures durability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Socket Head Cap Screw | Zinc Plated Steel | ISO 4762 Compliant | by Wurth
Brand: Wurth
SKU: 847570
Alternatively Known As: Socket Head Cap Screw, Hex Socket Bolt, Metric Socket Head Bolt M5
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 70 mm
- Head diameter (dk): 8.5 mm
- Head height (k1): 5 mm
- Standards: ISO 4762
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive: HS4
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Thread design: Full thread
- Thread length (metric thread): 70 mm
- Product class: A
- Dimensions (H x L x W): 5mm x 70mm x 8.5mm
- Weight: 0.1 kg
Key Features
- Made from high-strength steel with property class 8.8
- Zinc plated surface for corrosion resistance
- Socket head with hexagon internal drive (HS4) for secure tightening
- Full metric thread with 0.8 mm pitch for reliable fastening
- Complies with ISO 4762 standard
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure correct torque and secure fastening.
Applications
- Mechanical assemblies requiring strong, reliable fastening
- Industrial machinery and equipment
- Automotive repairs and manufacturing
- Construction and structural applications
Standards & Compliance
- AS/NZS 4762 – Socket Head Cap Screws (aligned with ISO 4762)
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth M5 x 70mm Zinc Plated Steel Socket Head Bolt is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
