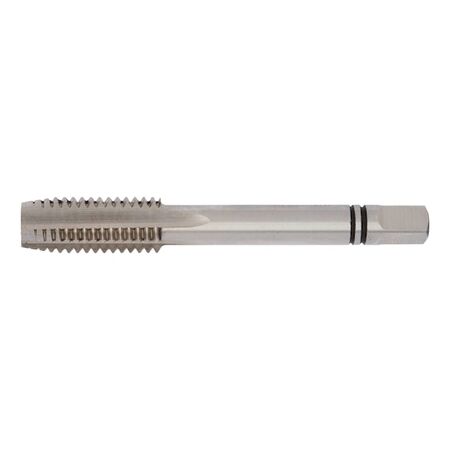

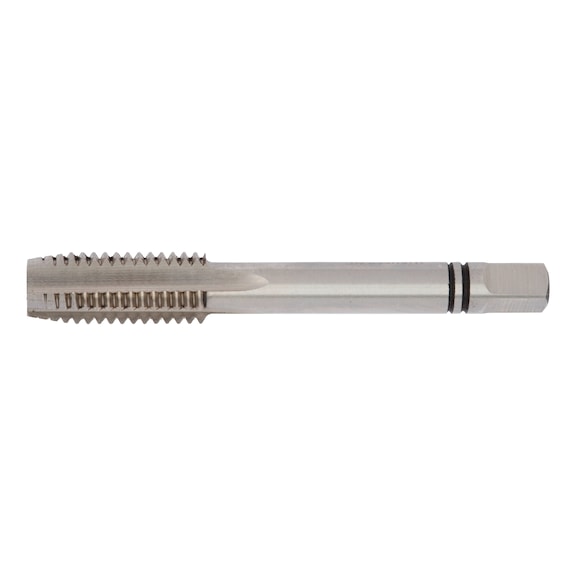

M5 Thread Tap | High-Speed Steel | DIN 352 Compliant | Trim Cut Form D | by Wurth
The M5 Thread Tap is crafted from high-speed steel (HSS) for durability and precision in thread cutting. Designed to produce metric ISO standard threads by hand, it features a 0.8 mm pitch and complies with DIN 352 standards. Ideal for machining applications on steel, non-ferrous metals, and cast iron, this tap ensures reliable performance in both through and blind holes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Thread Tap | High-Speed Steel | DIN 352 Compliant | Trim Cut Form D | by Wurth
Brand: Wurth
SKU: 64025
Alternatively Known As: M5 Thread Tap, Metric Thread Cutter, HSS Threading Tap, Hand Tap M5
Technical Specifications
- Type description: Second tap
- Standards: DIN 352
- Thread type x nominal diameter: M5
- Pitch: 0.8 mm
- Length: 50 mm
- Thread length (metric thread): 16 mm
- Shank diameter: 6 mm
- Size of square: 4.9 mm
- Core hole diameter: 4.20 mm
- Material: High-Speed Steel (HSS)
- Thread type: Metric thread
- Dimensions (H x L x W): 50mm x 50mm x 6mm
- Weight: 0.1 kg
Key Features
- Trim cut form D for precise thread cutting
- Complies with DIN 13 and DIN 352 standards
- High-speed steel (HSS) material for durability
- Metric thread type M5 with 0.8 mm pitch
Professional Installation Requirements
- No professional installation required; suitable for manual use by trained machinists or technicians.
Applications
- Machining: Producing metric ISO standard threads by hand
- Suitable for steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength
- Used in through holes and blind holes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable HSS material reduces frequency of replacement and waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth M5 Metric Thread Cutter Tap is available now for immediate purchase. Ideal for machining applications requiring precise metric thread cutting.
