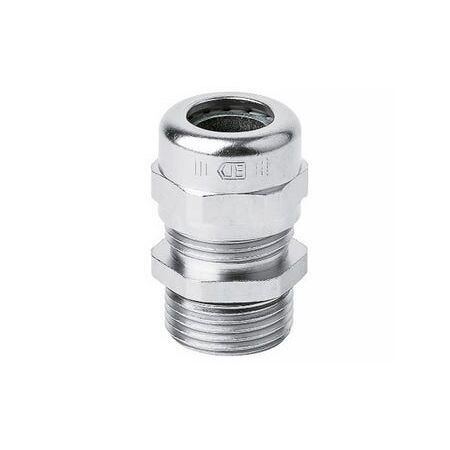

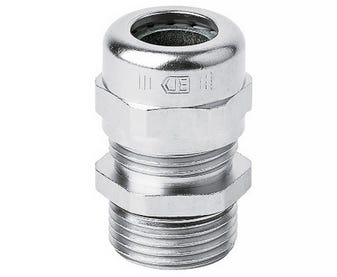

M50 Cable Gland | IP68 Rated | Nickel Plated Brass | 26-35mm by Cabac
The Cabac Nickel Plated Brass Gland M50 is an unarmoured metric cable gland designed for PVC, XLPE, and synthetic cables. It features a nickel plated brass body, IP68 rating, and a camera shutter style seal for wide cable diameter compatibility and excellent ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac Nickel Plated Brass Gland M50 Cable OD 26-35mm
Brand: Cabac
SKU: GU50
Alternatively Known As: M50 Cable Gland, Nickel Plated Brass Cable Gland, IP68 Cable Gland, Metric Cable Gland M50, GU50 Cable Gland
Technical Specifications
- IP Rating: IP68
- Material: Nickel plated brass body, Polyamide 6 insert (self-extinguishing), Neoprene seal and O-ring (self-extinguishing)
- Cable Diameter Range: 24mm to 35mm
- Operating Temperature: -20°C to +100°C
- Strain Relief and Twisting Protection: To DIN VDE 0619
- Threading: According to IEC 423, IEC 423A and EN 60423
- Chemical Resistance: Resistant to normal organic solvents, mineral, animal and vegetable oils, fat and petrol
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.1 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Rated IP68 for superior ingress protection
- Camera shutter style sealing mechanism fits wide cable diameter range
- Strain relief and twisting protection rated to DIN VDE 0619
- Fully insulated seal ensuring fluid tightness
- Chemical resistant to organic solvents, oils, fats, and petrol
- Operating temperature range from -20°C to +100°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical standards.
Applications
- Sealing and securing PVC, XLPE, and synthetic cables in industrial and commercial electrical installations
- Use in environments requiring high ingress protection and corrosion resistance
- Suitable for unarmoured metric cables in wiring and cable management systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel plated brass construction reduces need for frequent replacements
- Chemical resistance extends product life, minimizing waste
- High ingress protection prevents environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nickel Plated Brass Gland M50 Cable OD 26-35mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
