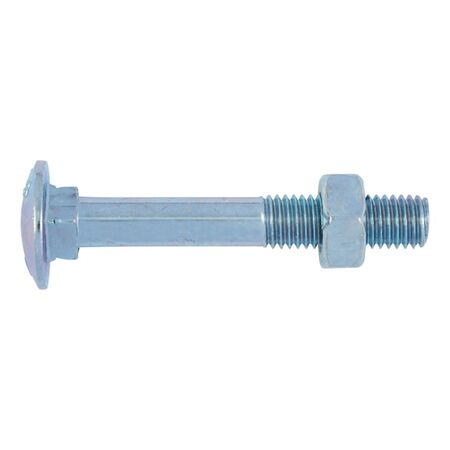

M6 Cup Head Square Neck Bolt | Zinc Plated Steel | DIN 603 Compliant | by Wurth
The M6 Cup Head Square Neck Bolt is designed for secure fastening in mechanical assemblies, automotive repairs, and industrial applications. Made from durable zinc-plated steel, it offers excellent corrosion resistance and complies with DIN 603 standards. Ideal for professionals, this bolt ensures reliable performance in various construction and structural projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M6 Cup Head Square Neck Bolt | Zinc Plated Steel | DIN 603 Compliant | by Wurth
Brand: Wurth
SKU: 223620
Alternatively Known As: Square Neck Cup Head Bolt, M6 Cup Head Bolt, Zinc Plated Square Neck Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 20 mm
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- Head diameter (dk): 16.55 mm
- Head height (k1): 3.88 mm
- Square width (V): 6.48 mm
- Square height (f): 4.6 mm
- Standards: DIN 603
- RoHS-compliant: Yes
- Design: With nut
- Head type: Cup head square neck
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Standard metric thread
- Product class: C
- Dimensions (H x L x W): 20mm x 20mm x 16.55mm
- Weight: 0.1 kg
Key Features
- Flat square neck fixes the round head screw in a slot allowing tightening from the nut side without counter-tensioning
- Made from steel with zinc plating for corrosion resistance
- Cup head with square neck design for secure fit
- Complies with DIN 603 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive repairs and maintenance
- Industrial machinery and equipment
- Construction and structural applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Wurth provides standard warranty against manufacturing defects as per company policy.
Available Now
The Wurth M6 x 20mm Zinc Plated Cup Head Square Neck Bolt is available for immediate purchase, ideal for mechanical, automotive, and industrial fastening applications.
