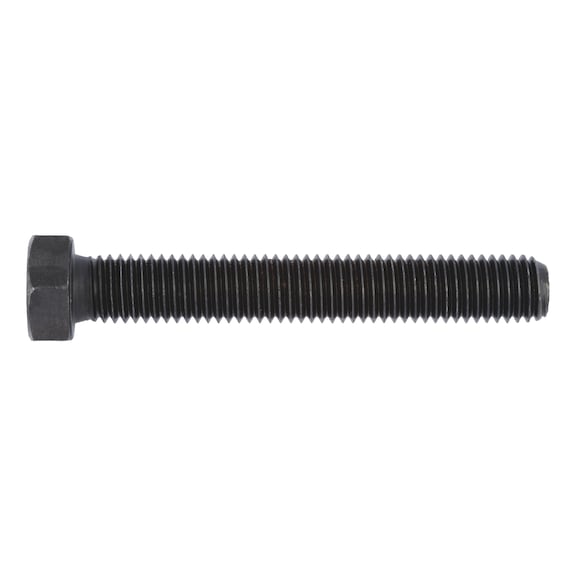

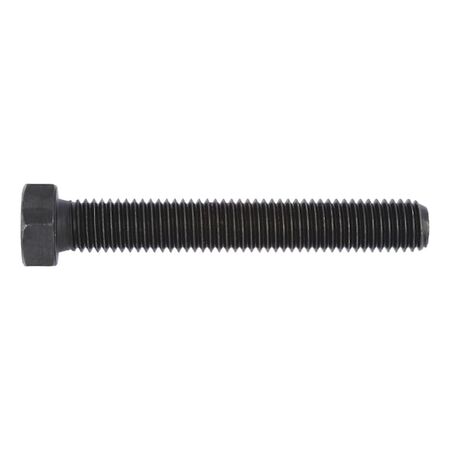

M6 Hexagon Head Bolt | 20mm Length | High Strength Steel | RoHS Compliant | by Wurth
The M6 Hexagon Head Bolt is designed for high-strength fastening in mechanical assemblies, automotive, and industrial applications. With a 20mm length and made from high-strength steel (property class 12.9), this bolt features a full metric thread design for secure fastening. Its plain surface finish and RoHS compliance ensure safety and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M6 Hexagon Head Bolt | 20mm Length | High Strength Steel | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 61620
Alternatively Known As: Hex bolt M6 20mm, Metric hex bolt, High tensile bolt M6, Steel hex head bolt
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 20 mm
- Head height (k1): 4 mm
- External drive (s1): WS10
- Standards: ISO 4017
- Material: Steel
- Property class: 12.9
- Surface: Plain
- Corrosion protection period: 0 h
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4mm x 20mm x 6mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Full metric thread design for secure fastening
- Made from high strength steel, property class 12.9
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring high strength fastening
- Automotive and machinery construction
- General industrial fastening applications
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M6 x 20mm Hexagon Head Bolt is available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
