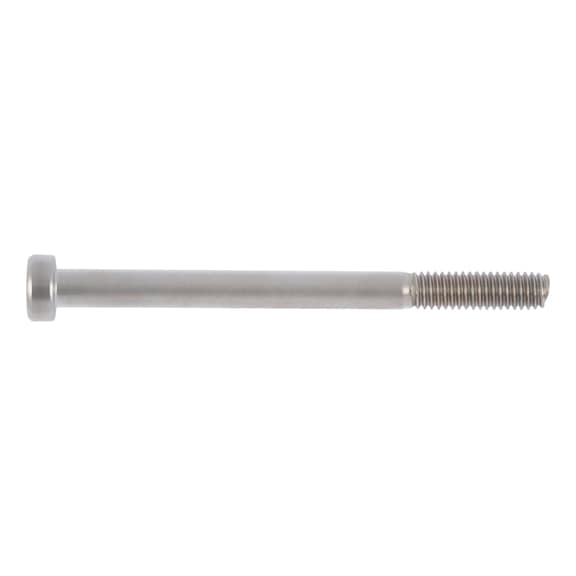

M6 Socket Low Head Bolt | Stainless Steel A2 | RoHS Compliant | Hexagon Socket Design | by Wurth
The M6 Socket Low Head Bolt is crafted from stainless steel A2, ensuring exceptional corrosion resistance and durability. With a unique low head design and hexagon socket drive, it provides secure fastening for mechanical assemblies in industrial, automotive, and construction applications. RoHS-compliant, this bolt meets environmental safety standards, making it a reliable choice for your fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M6 Socket Low Head Bolt | Stainless Steel A2 | RoHS Compliant | Hexagon Socket Design | by Wurth
Brand: Wurth
SKU: 98620
Alternatively Known As: M6 Socket Low Head Bolt, Stainless Steel Hexagon Socket Bolt, Metric Socket Head Cap Screw
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 20 mm
- Head diameter (dk): 10 mm
- Head height (k1): 4 mm
- Standards: DIN 6912
- Material: Stainless steel A2
- Property class: 070
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Socket low head
- Drive type: Hexagon socket with keyway
- Internal drive (s1): HS5
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 4mm x 20mm x 6mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Socket low head design with hexagon socket and keyway for secure drive
- RoHS-compliant ensuring environmental safety
- Standard metric thread (M6) with property class 070
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Industrial machinery and equipment
- Automotive and construction applications
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Stainless steel construction enhances product longevity reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth M6 x 20mm Stainless Steel Socket Low Head Bolt is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
