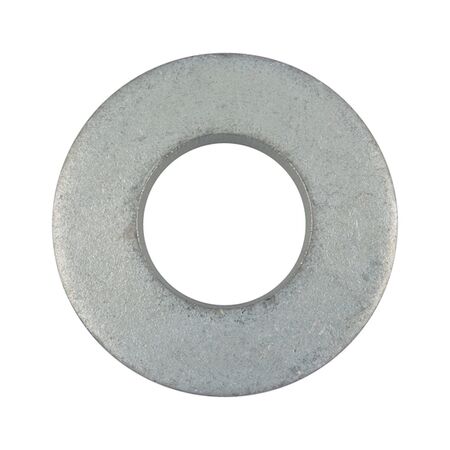

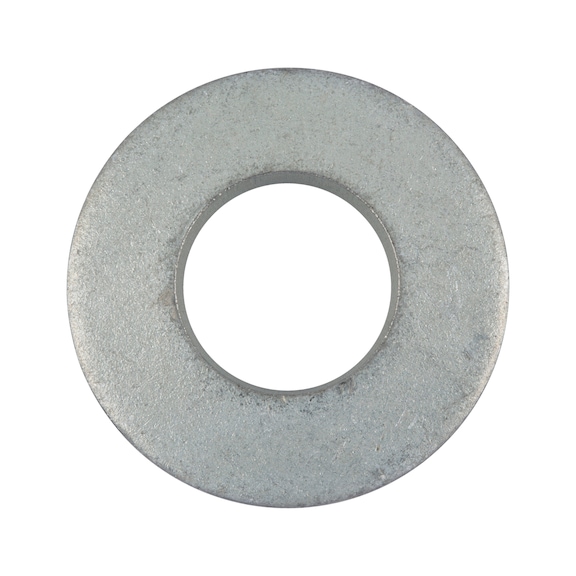

M6 Spring Washer | Zinc Plated | DIN 6796 Compliant | Embedding Locking Device | by Wurth
The M6 Spring Washer is designed to provide secure fastening in mechanical assemblies, featuring a zinc-plated finish for corrosion resistance and an embedding locking device to prevent loosening. Ideal for applications requiring vibration resistance, this washer meets DIN 6796 standards and is RoHS-compliant, making it a reliable choice for industrial use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M6 Spring Washer | Zinc Plated | DIN 6796 Compliant | Embedding Locking Device | by Wurth
Brand: Wurth
SKU: 41316
Alternatively Known As: M6 Spring Washer, Zinc Plated Lock Washer, DIN 6796 Washer, Resilient Washer
Technical Specifications
- Suitable for screw thread: M6
- Internal diameter (d1): 6.4 mm
- Outer diameter (d2): 14 mm
- Height (h1): 2 mm
- Thickness (s1): 1.5 mm
- Material: Spring steel
- Surface: Zinc plated
- Locking function: Embedding locking device
- Standards: DIN 6796
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2mm x 14mm x 14mm
- Weight: 0.1 kg
Key Features
- Spring washers are co-stressed elements that maintain pre-tensioning force to counteract loosening
- Made from spring steel with zinc plating for corrosion resistance
- Embedding locking device provides effective locking function
- Compliant with DIN 6796 standard
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure correct application and secure fastening.
Applications
- Used in screw connections requiring secure fastening with property class 8.8 and 10.9
- Suitable for mechanical assemblies needing vibration resistance and loosening prevention
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; contact Wurth for details.
Available Now
Wurth M6 Zinc Plated Spring Washer DIN 6796 is available for immediate purchase, ideal for industrial and mechanical fastening applications.
