Trade Discount 20%

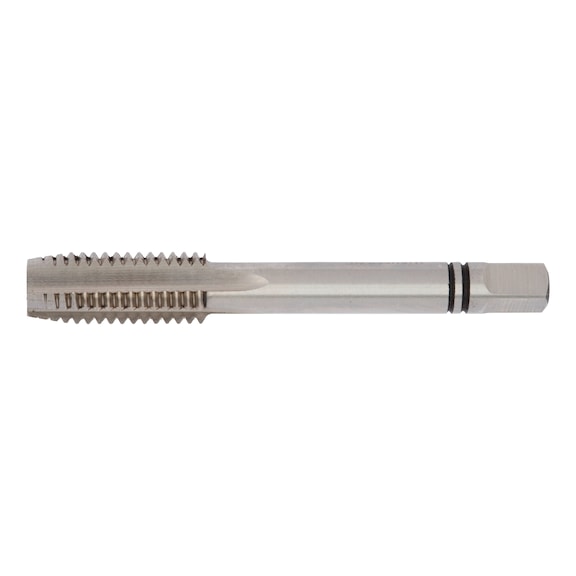

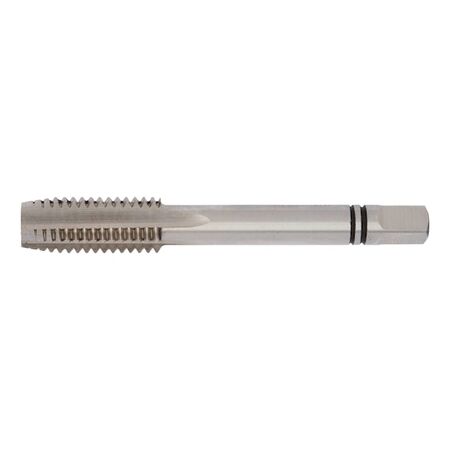

M6 Thread Tap | HSS Material | Trim Cut Form D | DIN 352 Compliant | by Wurth
The M6 Thread Tap is crafted from high-speed steel (HSS) for durability and precision in thread cutting. Designed for second tapping operations, it complies with DIN 352 standards, making it ideal for producing metric ISO standard threads in steel, non-ferrous metals, and cast iron. Perfect for trained machinists, this tap ensures reliable performance in both through and blind holes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M6 Thread Tap | HSS Material | Trim Cut Form D | DIN 352 Compliant | by Wurth
Brand: Wurth
SKU: 64026
Alternatively Known As: M6 Thread Tap, Metric Thread Cutter, HSS Tap, Second Tap M6
Technical Specifications
- Type description: Second tap
- Standards: DIN 352
- Thread type x nominal diameter: M6
- Pitch: 1.0 mm
- Length: 56 mm
- Thread length (metric thread): 19 mm
- Shank diameter: 6 mm
- Size of square: 4.9 mm
- Core hole diameter: 5.00 mm
- Material: HSS
- Thread type: Metric thread
- Dimensions (H x L x W): 56mm x 56mm x 6mm
- Weight: 0.1 kg
Key Features
- Trim cut form D for precise thread cutting
- Complies with DIN 13 for metric ISO standard threads
- High-speed steel (HSS) material for durability
- Designed for second tapping operations
Professional Installation Requirements
- No professional installation required; suitable for use by trained machinists or technicians.
Applications
- Machining: Producing metric ISO standard threads by hand
- Suitable for steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength
- Used in through holes and blind holes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable HSS material reduces frequency of replacement, minimizing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth M6 HSS Second Tap Thread Cutter is available now for immediate purchase. Ideal for precision machining and thread cutting applications.
