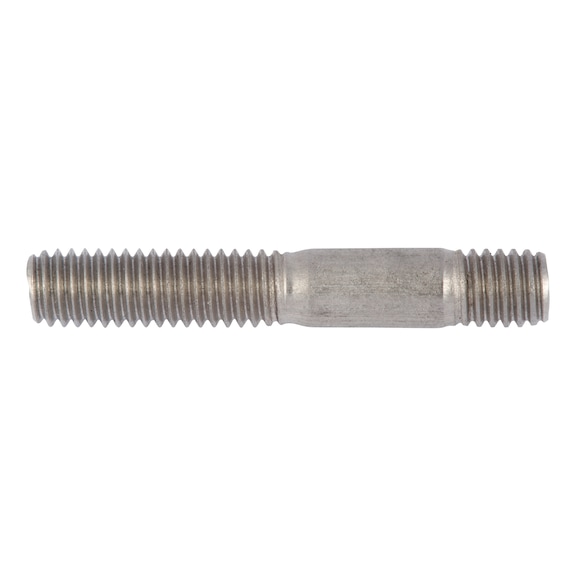

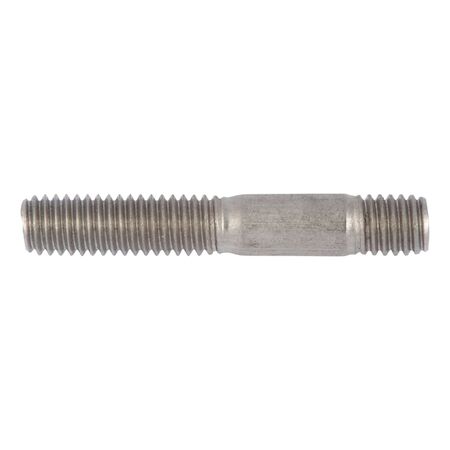

M6 Threaded Stud Bolt | Stainless Steel A2 | DIN 939 Compliant | Headless Design | by Wurth
The M6 Threaded Stud Bolt is crafted from durable stainless steel A2, ensuring corrosion resistance and compliance with DIN 939 standards. With a headless design and a 1 mm pitch metric thread, it's perfect for mechanical assemblies, automotive repairs, and construction applications. This versatile stud bolt is ideal for secure fastening in various industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M6 Threaded Stud Bolt | Stainless Steel A2 | DIN 939 Compliant | Headless Design | by Wurth
Brand: Wurth
SKU: 272625
Alternatively Known As: Threaded Stud Bolt M6, Stainless Steel Stud Bolt, DIN 939 Stud, Metric Thread Stud
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 25 mm
- Thread length (metric thread) (l2): 18 mm
- Thread length 2 (metric thread) (l3): 7.5 mm
- Standards: DIN 939
- Material: Stainless steel A2
- Property class: 70
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Without head
- Drive type: Without drive
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Standard metric thread
- Shank diameter: 6 mm
- Product class: A
- Dimensions (H x L x W): 6mm x 25mm x 6mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Complies with DIN 939 standard
- Metric thread with 1 mm pitch
- Plain surface finish
- Property class 70 for strength
- Headless design for specific fastening applications
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive repairs and manufacturing
- Construction and structural applications
- General industrial fastening needs
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel material is recyclable and durable, reducing replacement frequency and waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M6 x 25mm Stainless Steel Threaded Stud Bolt DIN 939 is available for immediate purchase, ideal for mechanical, automotive, and construction fastening applications.
