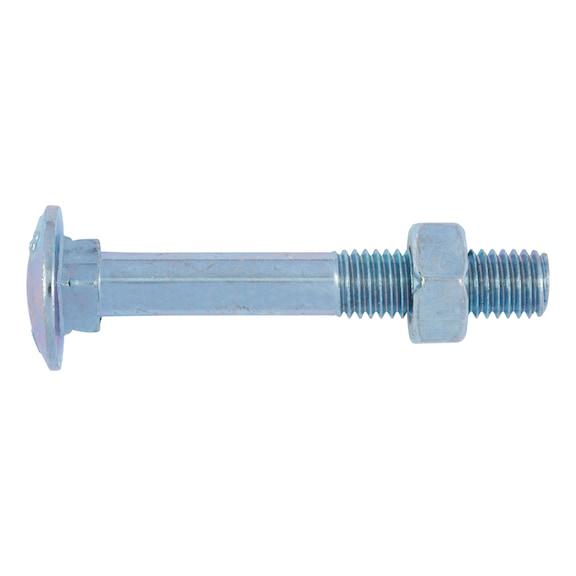

M6 Zinc Plated Cup Head Square Neck Bolt | 100mm Length | Corrosion Resistant Steel | DIN 603 Compliant | by Wurth
The M6 Zinc Plated Cup Head Square Neck Bolt is designed for secure fastening in mechanical assemblies and construction applications. Made from durable steel with a zinc plating for corrosion resistance, this bolt features a flat square neck that allows for easy tightening from the nut side. Ideal for automotive repairs and general fastening needs, it complies with DIN 603 standards for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M6 Zinc Plated Cup Head Square Neck Bolt | 100mm Length | Corrosion Resistant Steel | DIN 603 Compliant | by Wurth
Brand: Wurth
SKU: 2236100
Alternatively Known As: Square Neck Cup Head Bolt, M6 Zinc Plated Bolt, DIN 603 Bolt, Metric Thread Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 100 mm
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- Head diameter (dk): 16.55 mm
- Head height (k1): 3.88 mm
- Square width (V): 6.48 mm
- Square height (f): 4.6 mm
- Standards: DIN 603
- RoHS-compliant: Yes
- Design: With nut
- Head type: Cup head square neck
- Head details: With square neck
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Standard metric thread
- Thread length (metric thread) (b): 18 mm
- Product class: C
- Dimensions (H x L x W): 3.88mm x 100mm x 16.55mm
- Weight: 0.1 kg
Key Features
- Flat square neck fixes the round head screw in a slot for secure positioning
- Allows tightening from the nut side without counter-tensioning
- Made from steel with zinc plating for corrosion resistance
- Cup head with square neck design for enhanced grip
- Complies with DIN 603 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring secure fastening
- Construction and industrial equipment
- Automotive and machinery repairs
- General fastening applications with nut tightening
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Wurth provides standard warranty against manufacturing defects as per company policy.
Available Now
The Wurth M6 Zinc Plated Cup Head Square Neck Bolt 100mm is available for immediate purchase, ideal for industrial, construction, and mechanical fastening applications.
