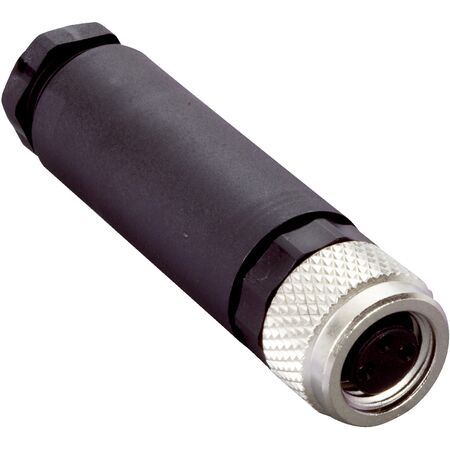

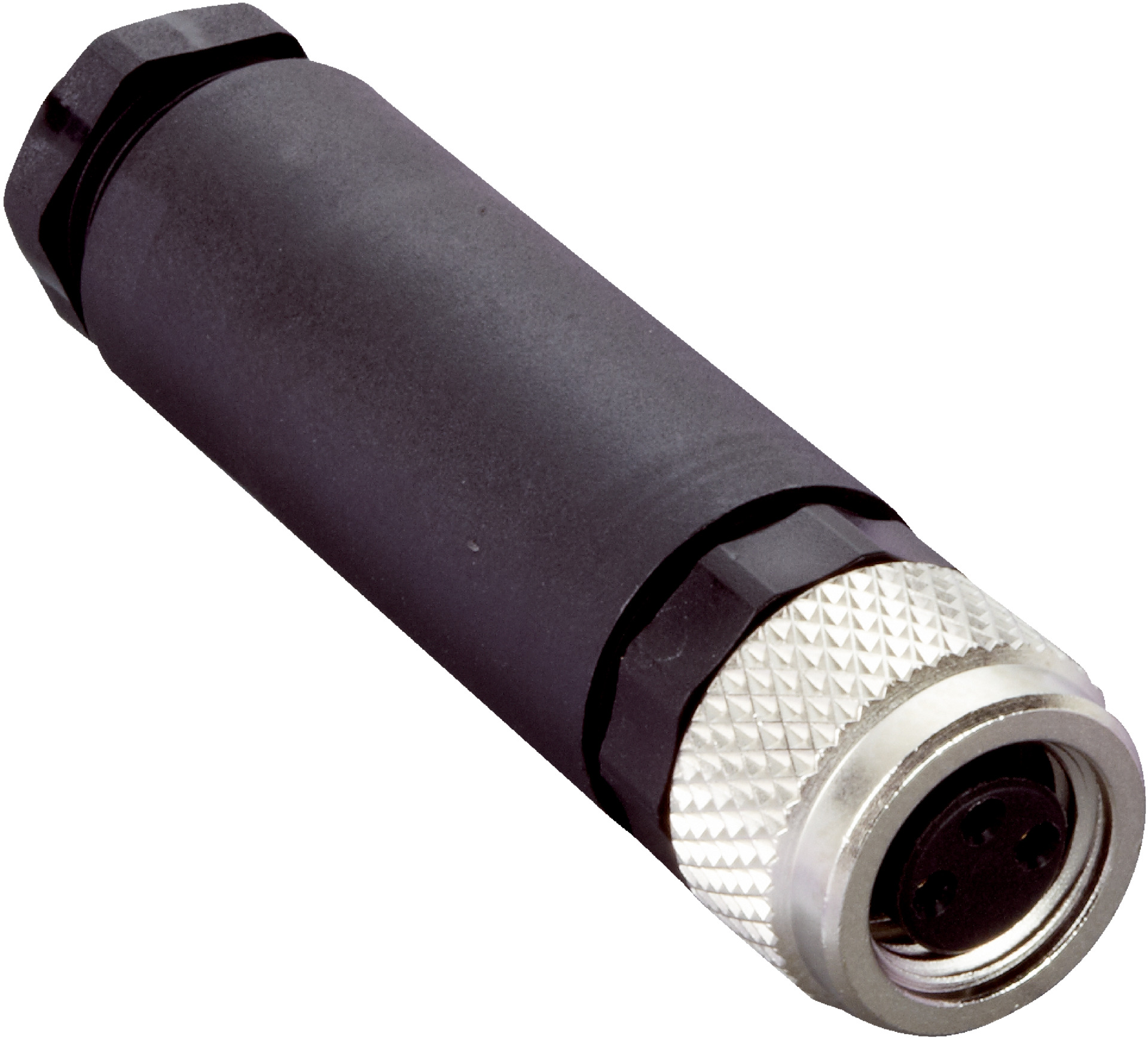

M8 3-Pin Female Connector Cable | IP67 Rated | Durable PBT/PA Material | by SICK
The M8 3-pin female connector cable is designed for reliable industrial automation sensor connections. With a robust IP67 rating for dust and water protection, this connector features screw-type terminals for secure wiring and operates within a temperature range of -40°C to +85°C. Ideal for machine building and factory automation, it ensures optimal signal transmission in control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 3-Pin Female Connector Cable | IP67 Rated | Durable PBT/PA Material | by SICK
Brand: SICK
SKU: 7902077
Alternatively Known As: M8 3-pin female connector cable, Industrial sensor connector, SICK M8 connector
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type: Screw-type terminals
- Connector material: PBT/PA
- Connector color: Black
- Locking nut material: CuZn
- Tightening torque: 0.4 Nm
- Shielding: Unshielded
- Permitted cross-section: 0.14 mm² to 0.5 mm²
- Reference voltage: ≤ 60 V
- Current loading: 4 A
- Enclosure rating: IP67
- Operating temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Female M8, 3-pin straight connector with A-coding
- Screw-type terminals for secure wiring
- Connector made of durable PBT/PA material
- Locking nut made of CuZn for reliable connection
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +85°C
- Current loading capacity of 4 A
- Unshielded cable design
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical connectors to ensure proper connection and safety.
Applications
- Industrial automation sensor connections
- Machine building and factory automation
- Signal transmission in control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DOS-0803-G M8 3-pin female connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
