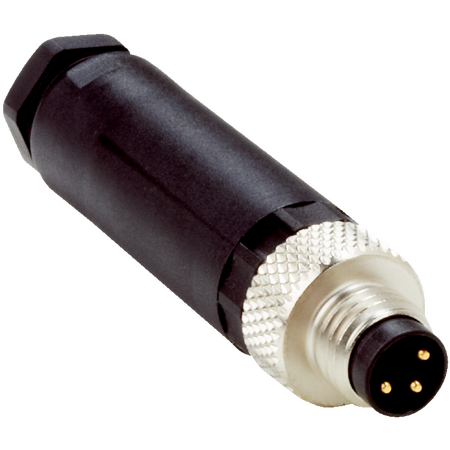

M8 3-Pin Male Connector Cable | IP67 Rated | Screw-Type Terminals | Black | by SICK
The M8 3-pin male connector cable is designed for reliable industrial automation and sensor connectivity. Featuring screw-type terminals for secure connections and an IP67 rating for dust and water protection, this durable cable operates in extreme temperatures from -40 °C to +85 °C. Ideal for machine building and factory automation, it ensures optimal signal transmission in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 3-pin male connector cable, SICK sensor connector, industrial M8 connector
Technical Specifications
- Connection type head A: Male connector, M8, 3-pin, straight, A-coded
- Connection type: Screw-type terminals
- Connector material: PBT/PA
- Connector color: Black
- Locking nut material: CuZn
- Tightening torque: 0.6 Nm
- Shielding: Unshielded
- Permitted cable diameter: 3.5 mm to 5 mm
- Permitted cross-section: 0.14 mm² to 0.5 mm²
- Reference voltage: ≤ 60 V
- Current loading: 4 A
- Enclosure rating: IP67
- Operating temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 20mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector, M8, 3-pin, straight, A-coded
- Screw-type terminals for secure connection
- Connector material: PBT/PA with black color
- Locking nut made of CuZn for durability
- Tightening torque of 0.6 Nm
- Unshielded design
- Permitted cable diameter from 3.5 mm to 5 mm
- Permitted cross-section from 0.14 mm² to 0.5 mm²
- Current loading capacity of 4 A
- Enclosure rating IP67 for dust and water protection
- Operating temperature range from -40 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and sensor connectivity
- Machine building and factory automation
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Compliant with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK STE-0803-G M8 3-pin male connector cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
