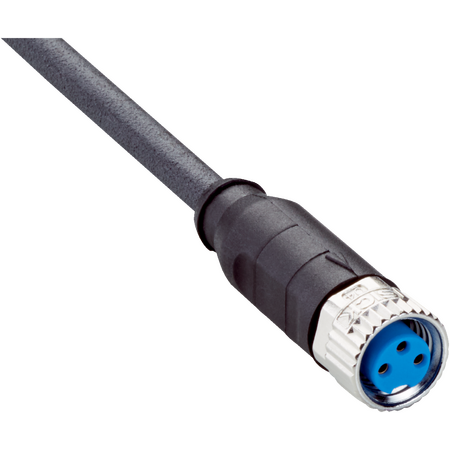

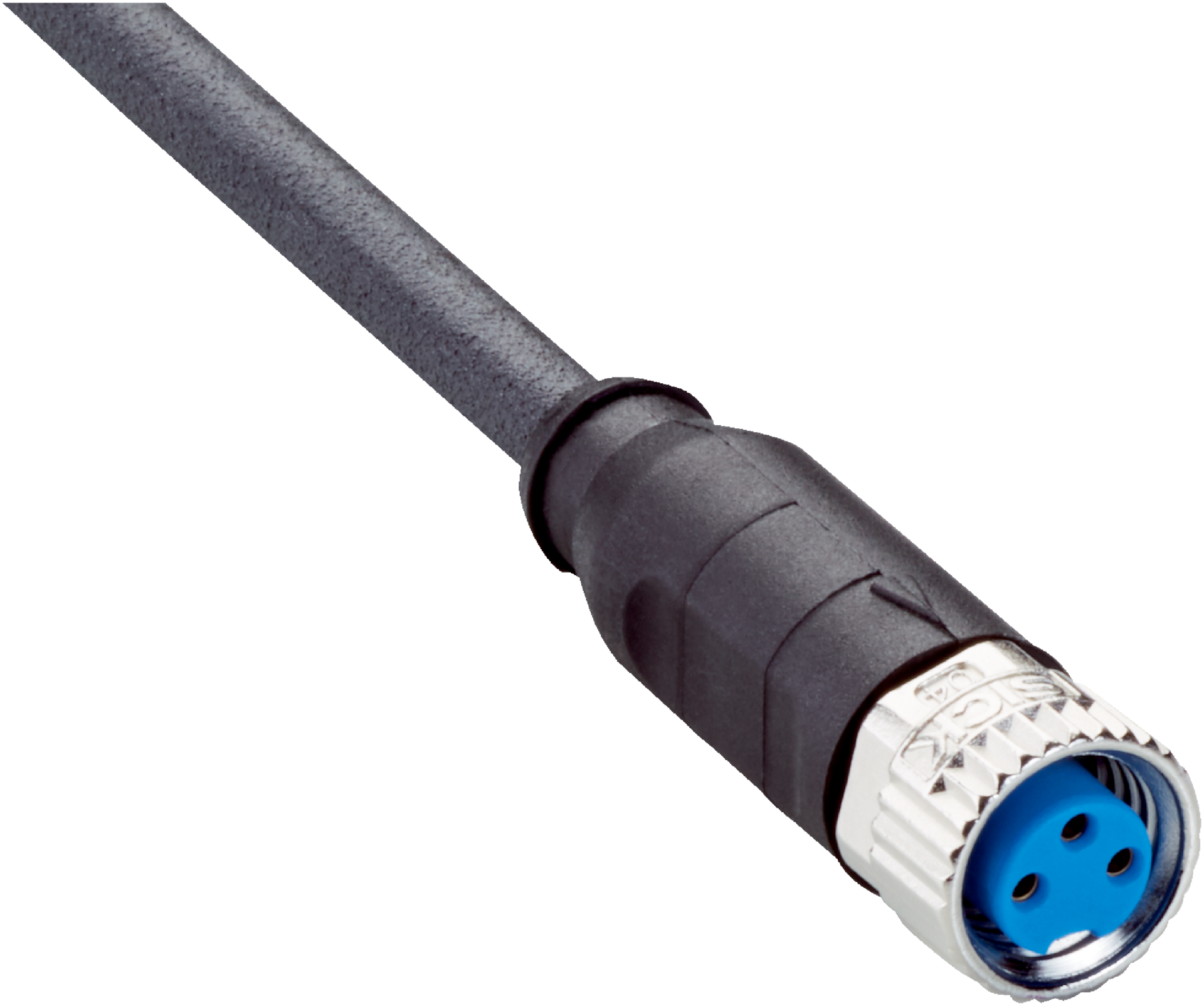

M8 3-Pin Sensor Actuator Cable | 2m Halogen-Free PUR | IP65/IP66/IP67 Rated | by SICK
The M8 3-Pin Sensor Actuator Cable is designed for reliable connections in industrial automation and robotics. With a 2m halogen-free PUR cable, it offers exceptional flexibility and durability, making it ideal for drag chain operations. Rated IP65/IP66/IP67, this cable withstands harsh environments, ensuring optimal performance in zones with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M8 3-pin, Actuator cable PUR halogen-free, Drag chain cable SICK, M8 female connector cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 2 m
- Cable type: 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Current loading: 4 A
- Torsion force: 180° per meter
- Torsion cycles: 2,000,000
- Bending cycles: 10,000,000
- Overvoltage category: III
- Insulation resistance: 100 MΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 2000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, straight, A-coded
- 2 m, 3-wire, PUR, halogen-free cable
- Screw connection locking plug
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- UL and cULus certified
- Flame retardant cable according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor cabling standards to ensure proper connection and compliance with safety regulations.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF8U13-020UA1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
