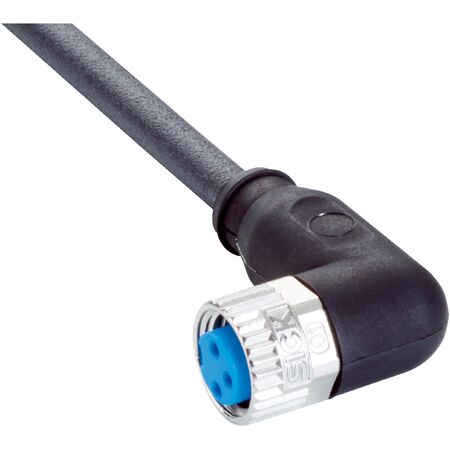

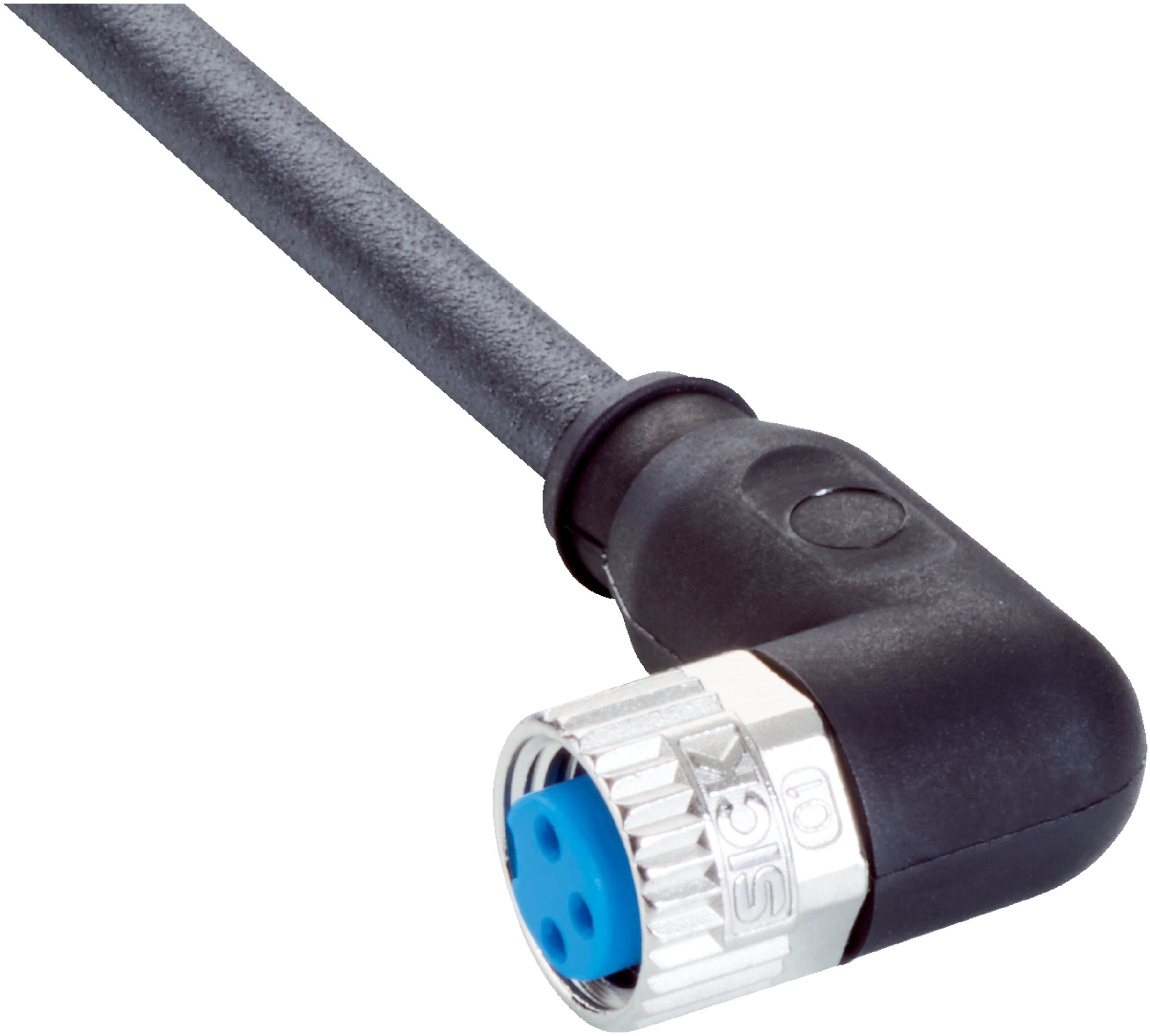

M8 3-Pin Sensor Actuator Cable | 3m Length | IP65/IP66K/IP67 Rated | by SICK
The M8 3-Pin Sensor Actuator Cable is designed for reliable connections in industrial automation and robotic applications. With a 3m length, IP65/IP66K/IP67 enclosure rating, and a flexible operating temperature range from -40 °C to +85 °C, this halogen-free PUR cable ensures durability and safety in various environments. Ideal for uncontaminated zones and drag chain operations, it features a screw connection locking plug for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 3 m
- Cable type: 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Current loading: 4 A
- Rated impulse voltage: 1.5 kV
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- UL File No.: E335179
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 15mm x 3000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, angled, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 3 m, 3-wire, PUR, halogen-free cable
- Cable diameter 4.1 mm, conductor cross section 0.25 mm²
- Unshielded cable
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Torsion force 180°/1 m with 2,000,000 torsion cycles
- Rated impulse voltage 1.5 kV and current loading 4 A
- Flame retardant according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YG8U13-030UA1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring reliable and durable cabling.
