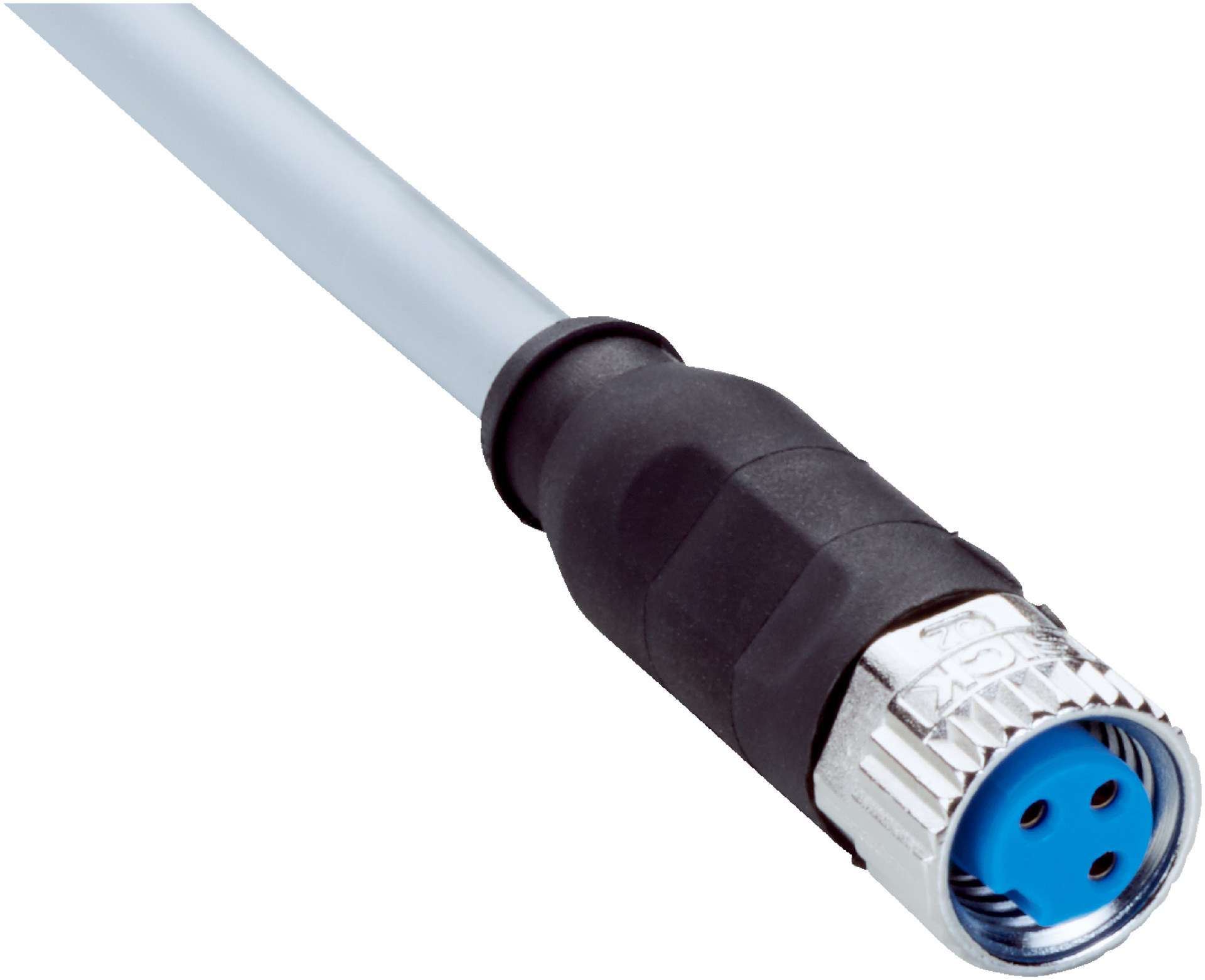

M8 3-Pin Sensor/Actuator Cable | 5m Length | IP65/IP66K/IP67 Rated | TPU Material | by SICK
The M8 3-Pin Sensor/Actuator Cable is designed for reliable connections in industrial automation, featuring a 5m length and IP65/IP66K/IP67 enclosure rating. With a durable TPU connector and screw connection locking, this cable is perfect for use in chemical zones and ensures optimal performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable: 5 m, 3-wire, PVC
- Jacket material: PVC
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 9mm x 5000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, straight, A-coded on head A
- Flying leads on head B
- Screw connection locking plug connector
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 5 m, 3-wire, PVC jacket in gray
- Cable diameter: 4.5 mm with conductor cross section 0.25 mm²
- Unshielded cable
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Nominal voltage: 300 V AC, Test voltage: 2000 V AC
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Suitable for zones with chemicals
- Uncontaminated zones
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant cable reduces fire hazards and environmental damage
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

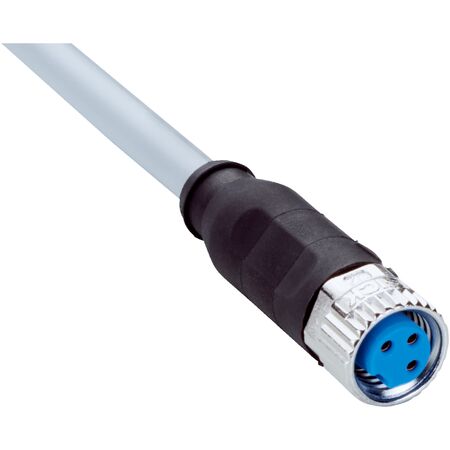

The SICK YF8U13-050VA1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
