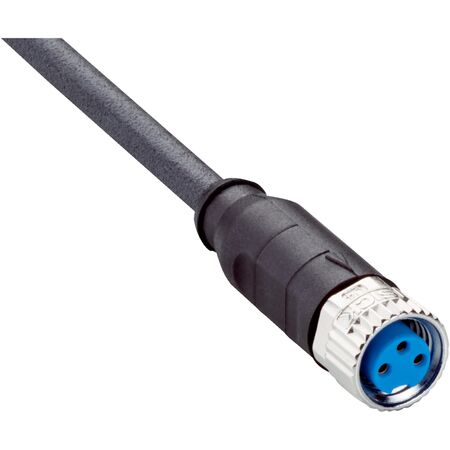

M8 3-Pin Sensor Actuator Cable | Halogen-Free PUR | IP65/IP66K/IP67 Rated | by SICK
The M8 3-Pin Sensor Actuator Cable is designed for reliable connections in industrial automation and robotics. With a durable halogen-free PUR jacket, this cable supports flexible use and drag chain operation, ensuring high performance in challenging environments. Rated for IP65/IP66K/IP67, it’s perfect for applications in uncontaminated zones and areas with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 1.5 m
- Cable type: 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Bending cycles: 10,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 15mm x 1500mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM for durability
- Cable length 1.5 m, 3-wire, PUR, halogen-free
- Cable diameter 4.1 mm with conductor cross section 0.34 mm²
- Unshielded cable with bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- High bending cycles up to 10,000,000 and torsion cycles 2,000,000
- Rated for nominal voltage 300 V AC and test voltage 2,500 V AC
- Current loading up to 4 A
- Enclosure rating IP65 / IP66K / IP67 for protection against dust and water
- UL and CE authorized with UL File No. E335179
- Flame retardant cable according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards to ensure proper connection and compliance with IP ratings.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF8U13-015UB1XLEBX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
