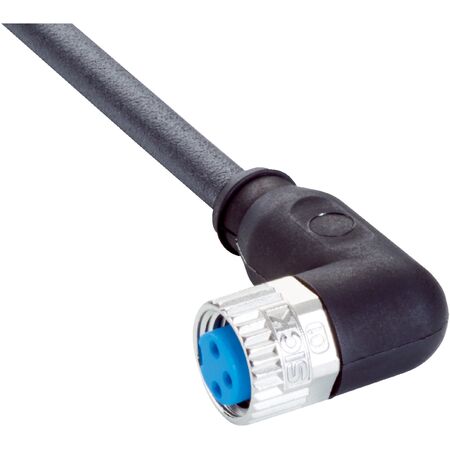

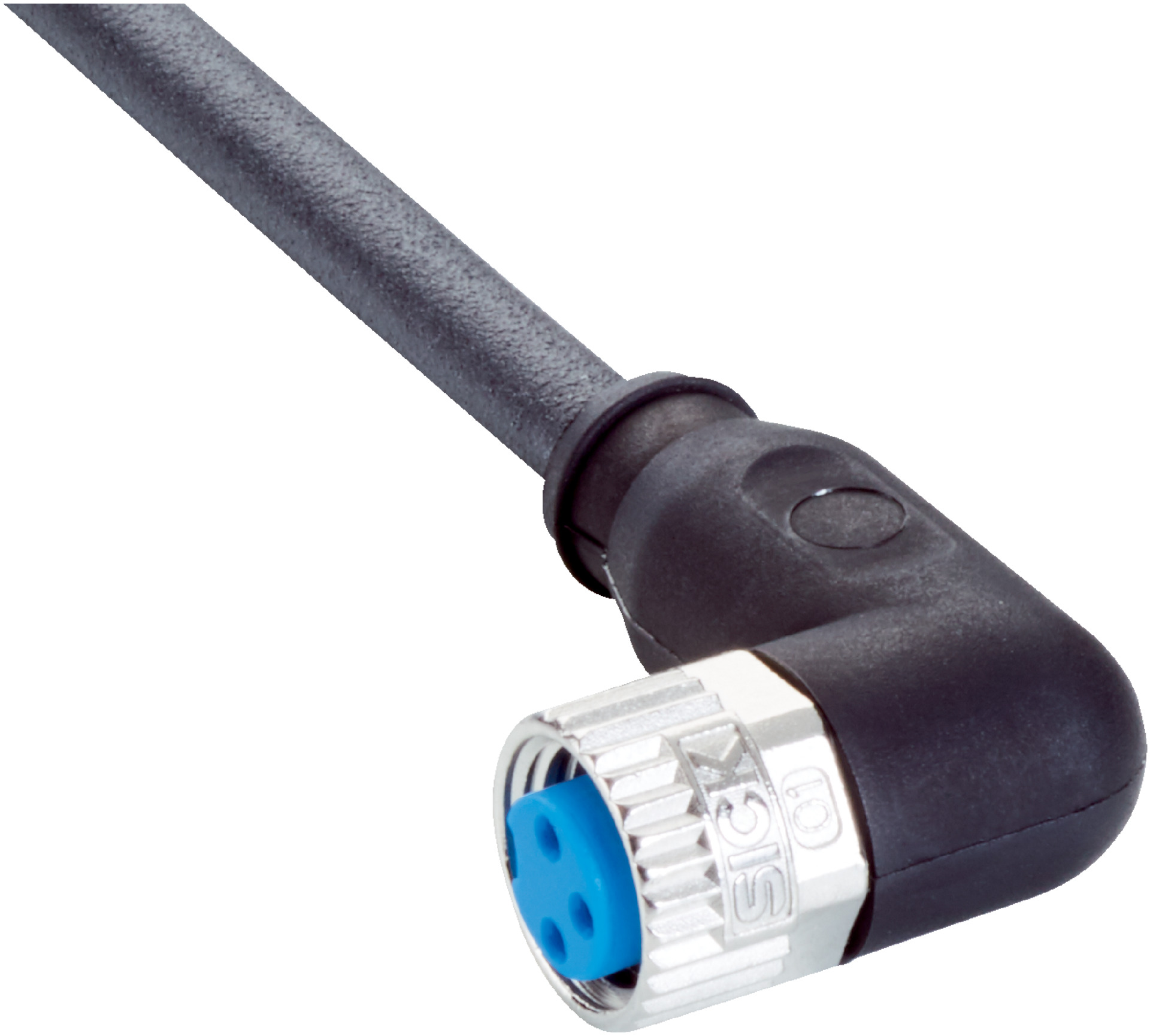

M8 3-Pin Sensor Cable | 5m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M8 3-Pin Sensor Cable is designed for robust industrial applications, featuring a 5m PUR halogen-free cable with a female connector and screw connection locking plug. Ideal for environments with oils and lubricants, this cable ensures reliable performance in robotics and drag chain operations, with an impressive operating temperature range of -40 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 5 m
- Cable type: 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 15mm x 5000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, angled, A-coded
- 5 m, 3-wire, PUR, halogen-free cable
- Screw connection locking plug
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- IP65 / IP66K / IP67 enclosure rating
- High bending radius and torsion cycles for durability
- Operating temperature range from -40 °C to +85 °C
- Flame retardant cable according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG8U13-050UB1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
