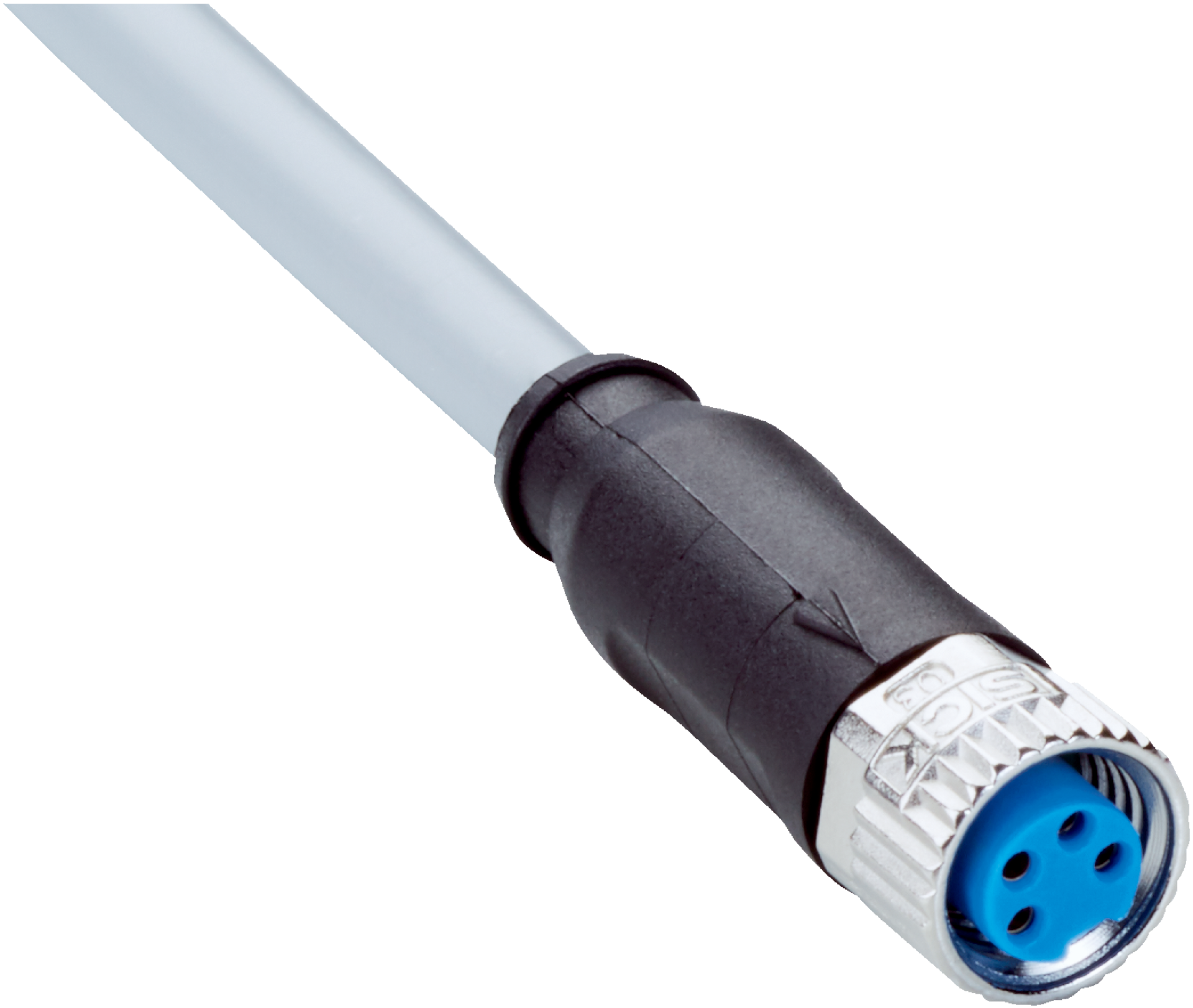

M8 4-Pin Sensor/Actuator Cable | 15m Length | PVC Jacket | IP65/IP66/IP67 Rated | by SICK
The M8 4-Pin Sensor/Actuator Cable is designed for reliable connections in industrial environments, featuring a durable PVC jacket and a length of 15 meters. With an IP65/IP66/IP67 rating, it's perfect for sensor and actuator applications in uncontaminated and chemically exposed zones, ensuring safety and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M8 4-pin, Actuator cable PVC 4x0.25mm², SICK sensor cable 15m, Industrial sensor cable gray PVC
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 15 m, 4-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 10mm x 15000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 4-pin, straight, A-coded
- Flying leads on head B
- Screw connection locking plug
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal made of FKM
- Cable length 15 m, 4-wire PVC jacket in gray
- Cable diameter 4.8 mm with 0.25 mm² conductor cross section
- Unshielded cable
- Bending radius: Flexible use > 10x cable diameter, Stationary position > 5x cable diameter
- Operating temperature range: Flexible use -5°C to +80°C, Stationary position -30°C to +80°C, Head -25°C to +85°C
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Current loading 4 A
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in uncontaminated zones
- Use in zones with chemical exposure
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket extends product life reducing waste
- Flame retardant materials enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

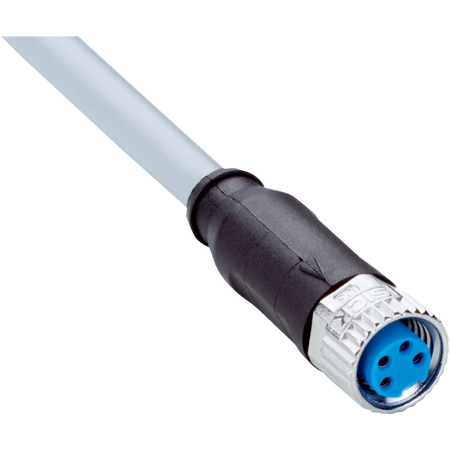

The SICK YF8U14-150VA3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial sensor and actuator connections in uncontaminated and chemical zones.
