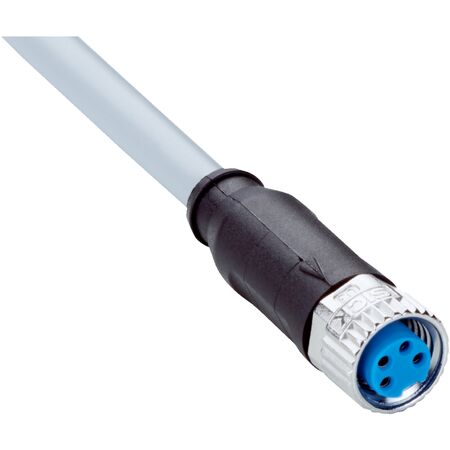

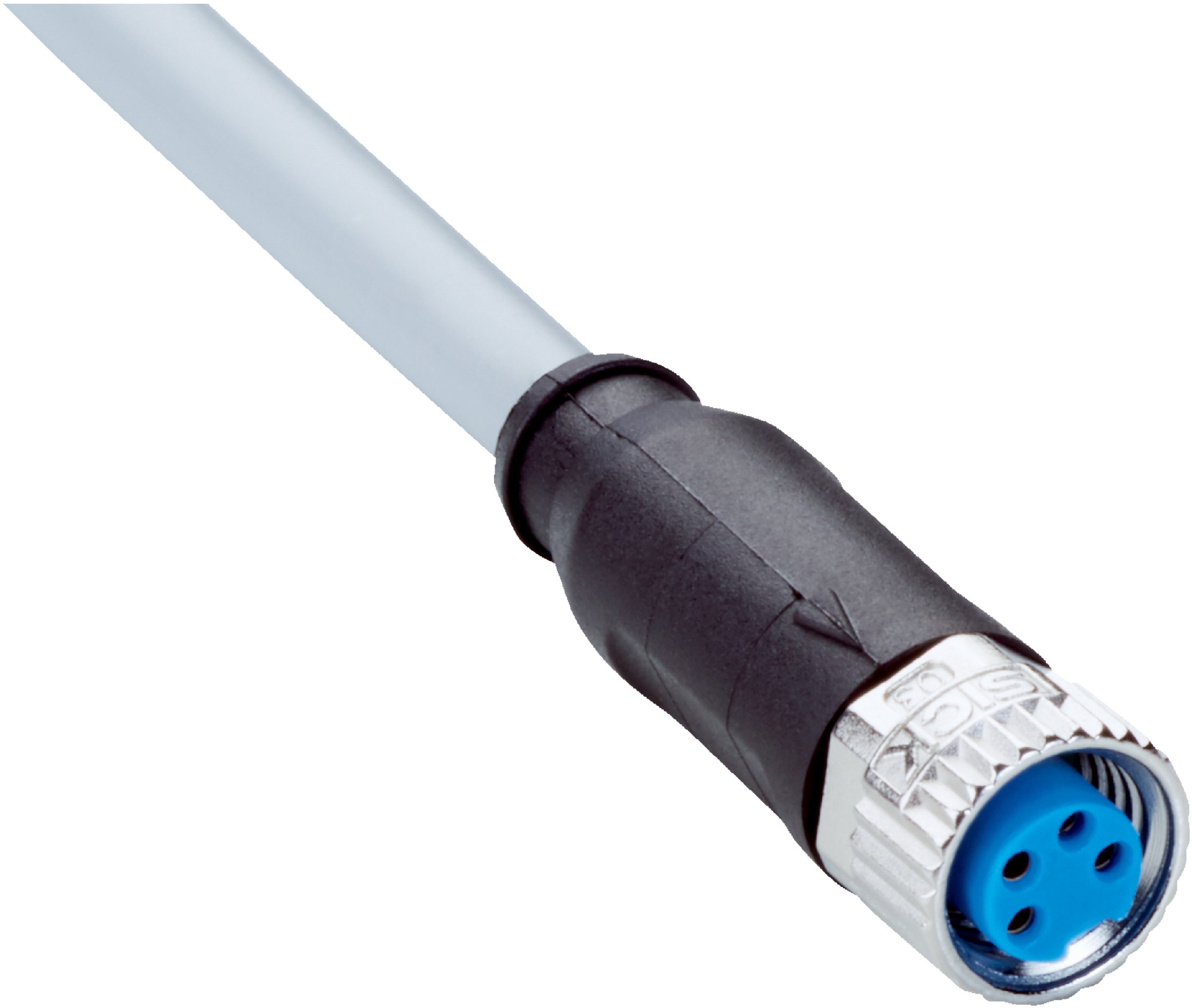

M8 4-Pin Sensor/Actuator Cable | 2m PVC Jacket | IP65/IP66K/IP67 Rated | by SICK
The M8 4-Pin Sensor/Actuator Cable is designed for reliable connections in industrial automation, featuring a 2m length with a durable PVC jacket. Ideal for environments with chemicals, this cable ensures optimal performance with an IP65/IP66K/IP67 enclosure rating, making it perfect for sensor and actuator applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 2 m, 4-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 10mm x 2000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, straight, A-coded on head A
- Flying leads on head B
- Screw connection locking plug connector
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 2 m, 4-wire, PVC jacket in gray
- Cable diameter: 4.8 mm with conductor cross section 0.25 mm²
- Unshielded cable
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Nominal voltage: 300 V AC, Test voltage: 2000 V AC
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with sensor and actuator cable connections to ensure proper sealing and electrical safety.
Applications
- Suitable for zones with chemicals
- Uncontaminated zones
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant cable material reduces fire risk and environmental hazards
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF8U14-020VA3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
