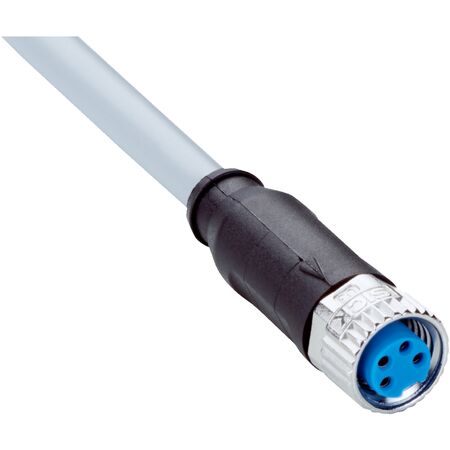

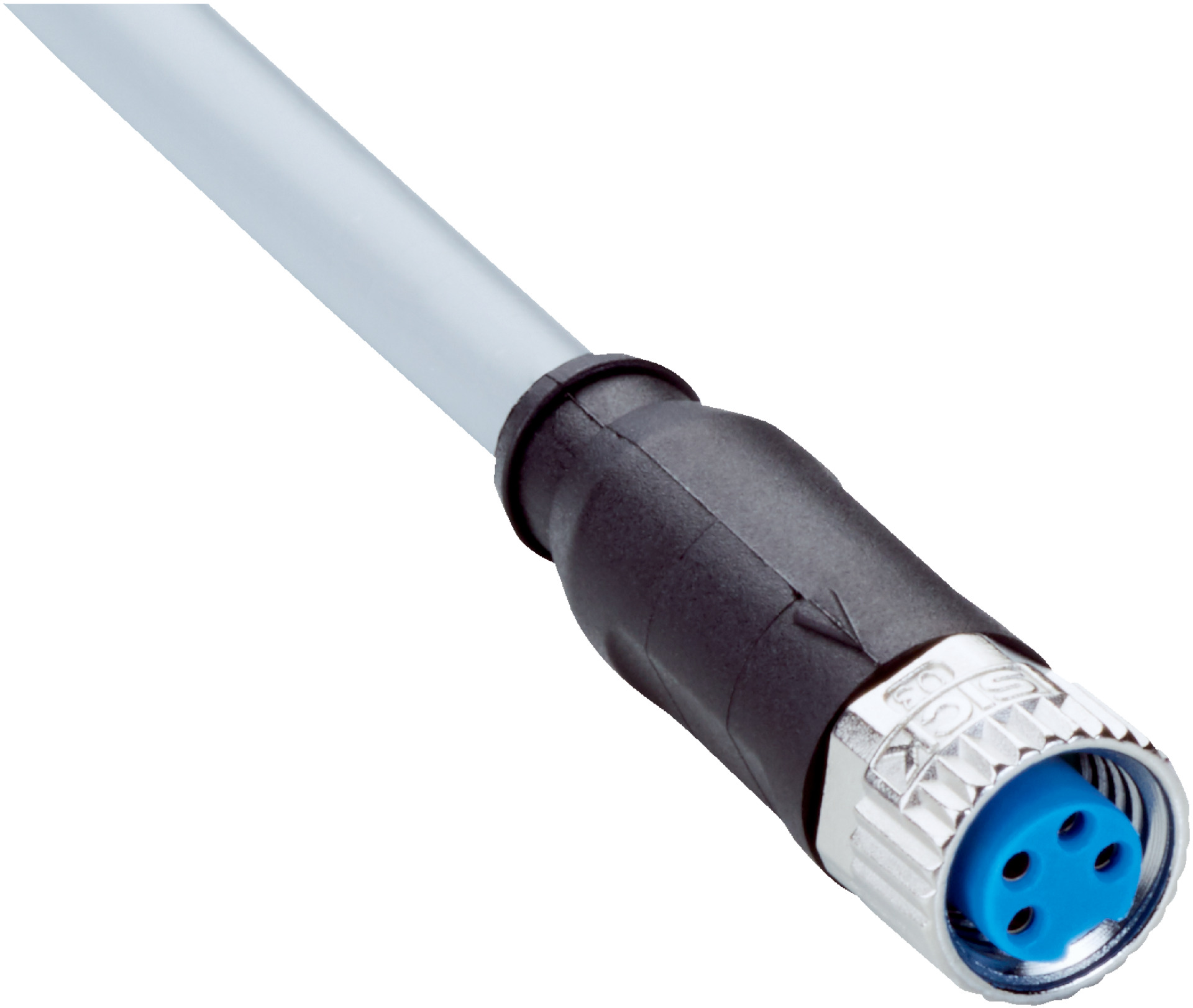

M8 4-Pin Sensor Actuator Cable | 8m Length | IP65/IP66/IP67 Rated | by SICK
The M8 4-Pin Sensor Actuator Cable is designed for reliable connections in industrial automation, featuring a durable 8m length and IP65/IP66/IP67 enclosure ratings. With a female connector and flying leads, this cable is perfect for applications in chemical zones and ensures compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 8 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 9mm x 80mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, straight, A-coded on head A
- Flying leads on head B
- Screw connection locking plug connector
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM
- Cable length 8 m, 4-wire, PVC jacket in gray color
- Unshielded cable with 0.25 mm² conductor cross section
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating IP65 / IP66K / IP67
- Current loading 4 A
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Rated impulse voltage 1.5 kV
- Overvoltage category III
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Suitable for zones with chemicals
- Uncontaminated zones
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant materials reduce fire hazards and environmental damage
- Durable construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF8U14-080VA3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
