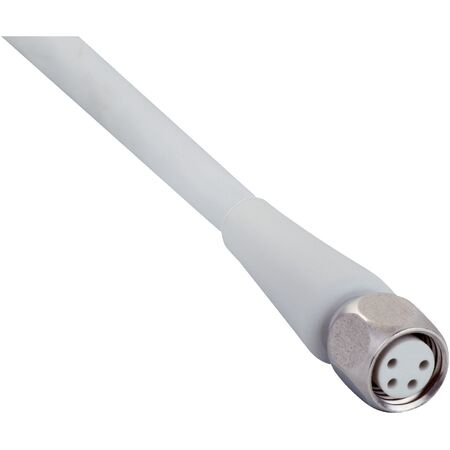

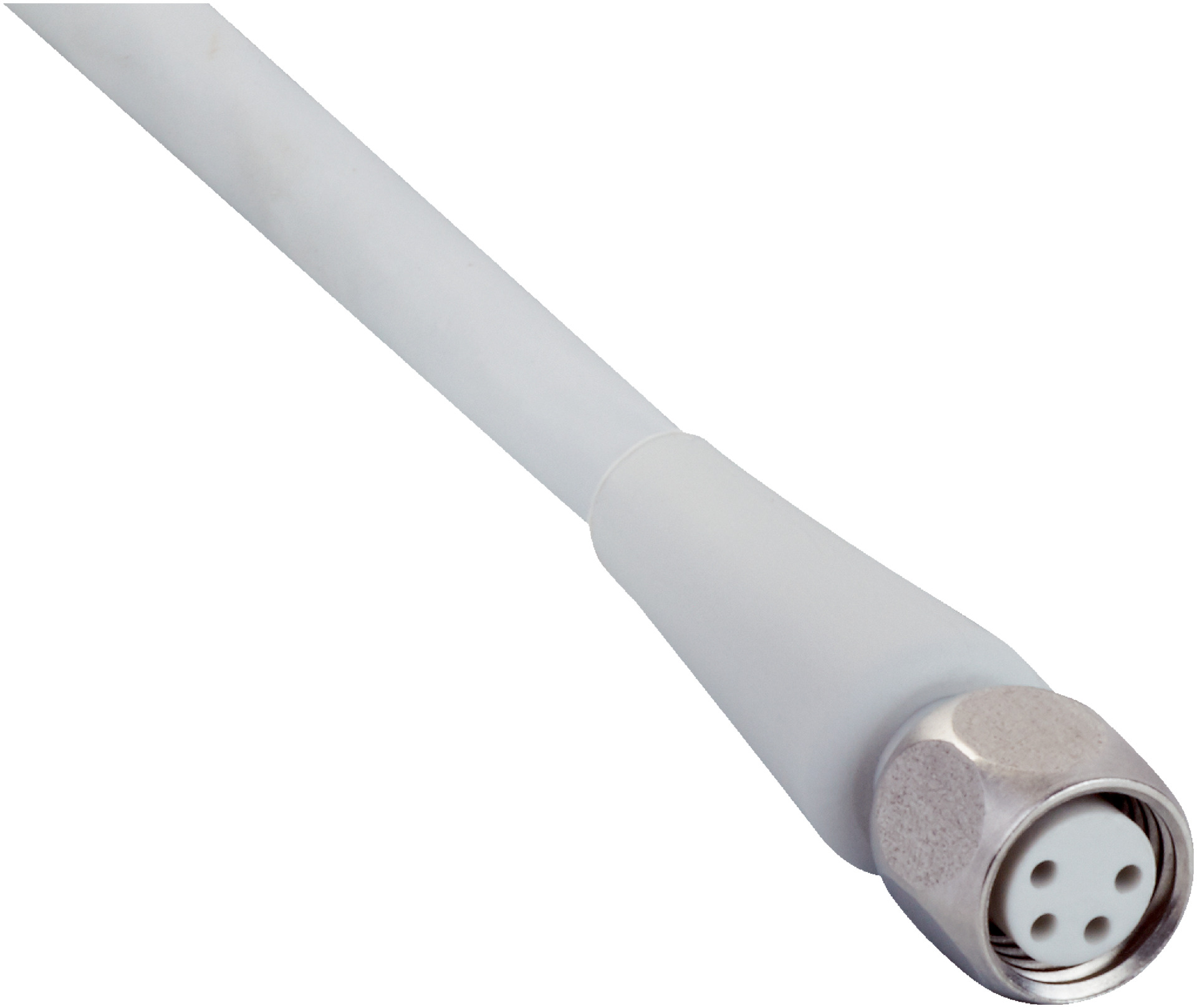

M8 4-Pin Sensor/Actuator Cable | IP67/IP69K Rated | 10m Length | Chemical Resistant | by SICK
The M8 4-Pin Sensor/Actuator Cable is designed for reliable connections in hygienic and washdown environments. With a robust 10m length and IP67/IP69K rating, it withstands harsh conditions and chemical cleaning agents. Ideal for industrial automation, this cable features a durable PP jacket and stainless steel locking nut, ensuring long-lasting performance and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: PP
- Locking nut material: Stainless steel (V4A/1.4404/316L)
- Tightening torque: 0.6 Nm
- Cable length: 10 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +105 °C
- Operating temperature stationary position: -40 °C to +105 °C
- Bending cycles: ≥ 4,000,000
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Enclosure rating: IP67 / IP69K
- Dimensions (H x L x W): 15mm x 10000mm x 9mm
- Weight: 0.2 kg
Key Features
- Female connector, M8, 4-pin, straight
- Flying leads connection
- Connector material: PP with stainless steel locking nut
- Cable length: 10 m, 4-wire, PP jacket
- Operating temperature range: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary)
- High bending cycles ≥ 4,000,000
- Torsion force: 180° / 1 m
- Enclosure rating: IP67 / IP69K
- Resistant to chemical cleaning agents including lactic acid and hydrogen peroxide
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste
- Durable design supports long service life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-0804-G10MRN sensor/actuator cable is available for immediate purchase, ideal for industrial automation in hygienic and washdown environments.
