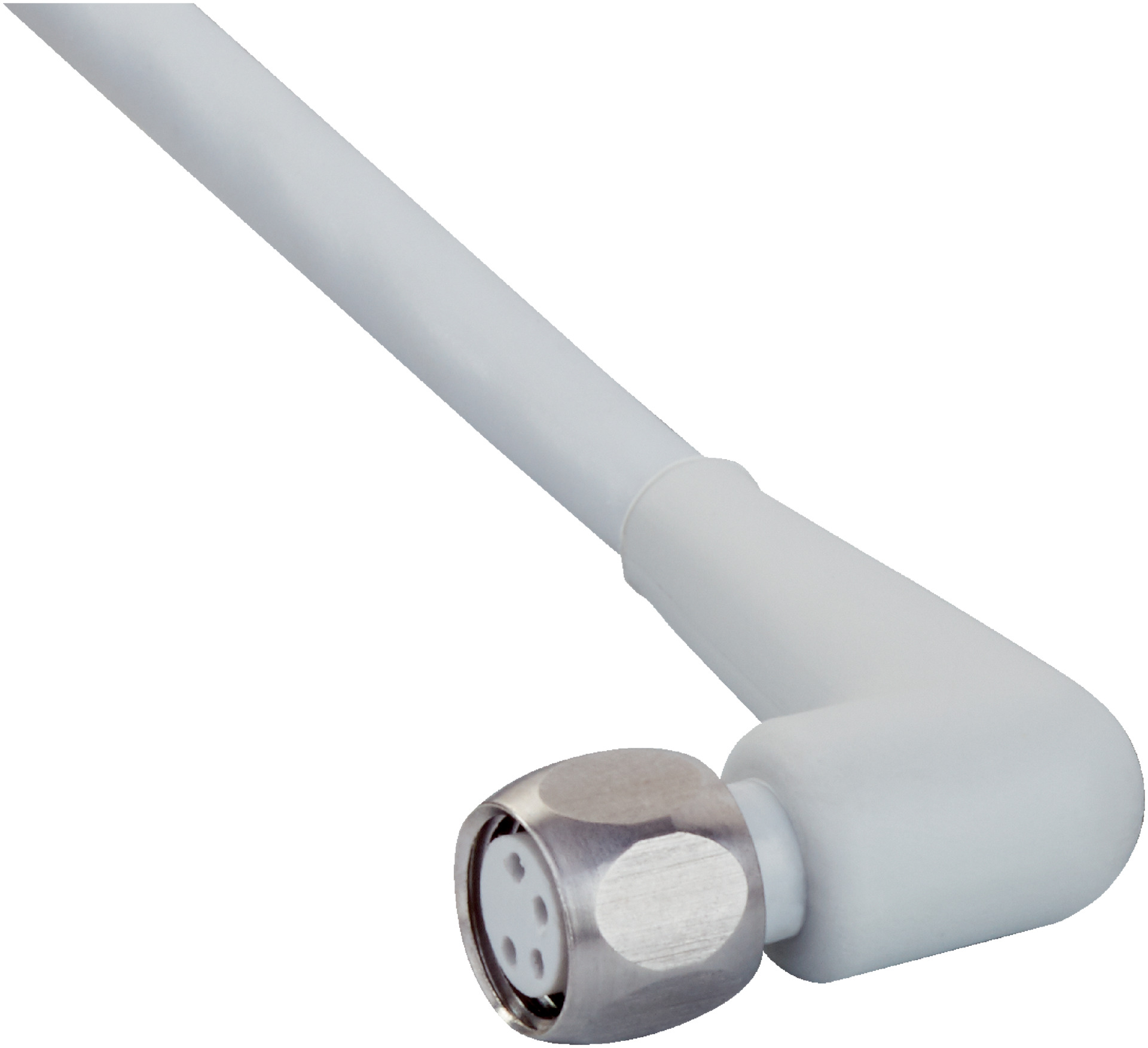

M8 4-Pin Sensor/Actuator Cable | IP67 & IP69K Rated | 2m Length | Chemical Resistant | by SICK
The M8 4-Pin Sensor/Actuator Cable is designed for hygienic and washdown zones, featuring a durable 2m length with a chemical-resistant PP jacket. With an IP67/IP69K rating and a wide operating temperature range of -25°C to +105°C, this cable is perfect for applications requiring reliable performance in challenging environments. Ideal for drag chain operations, it ensures long service life and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled
- Connection type head B: Flying leads
- Connector material: PP
- Locking nut material: Stainless steel (V4A/1.4404/316L)
- Tightening torque: 0.6 Nm
- Cable: 2 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25°C to +105°C
- Operating temperature stationary position: -40°C to +105°C
- Bending cycles: ≥ 4,000,000
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Enclosure rating: IP67 / IP69K
- Dimensions (H x L x W): 15mm x 2000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, angled on head A
- Flying leads on head B
- Connector material: PP with stainless steel locking nut
- Cable length: 2 m, 4-wire, PP jacket
- Operating temperature range: -25°C to +105°C (flexible use), -40°C to +105°C (stationary)
- High bending cycles ≥ 4,000,000
- Torsion force: 180° per meter
- Enclosure rating: IP67 / IP69K
- Resistant to chemical cleaning agents including lactic acid and hydrogen peroxide
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with sensor and actuator cable connections and hygienic zone requirements.
Applications
- Hygienic and washdown zones
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste
- Durable design supports long service life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

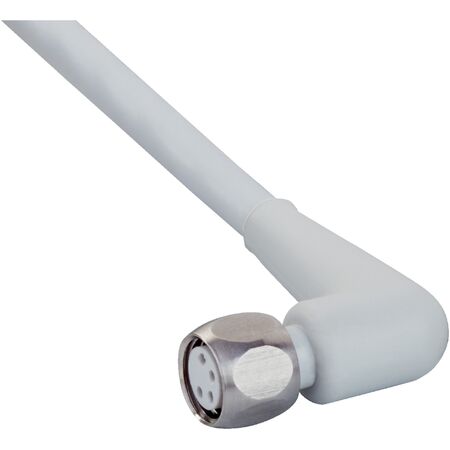

The SICK DOL-0804-W02MRN sensor/actuator cable is available for immediate purchase, ideal for use in hygienic and washdown zones requiring durable and chemical-resistant cabling.
