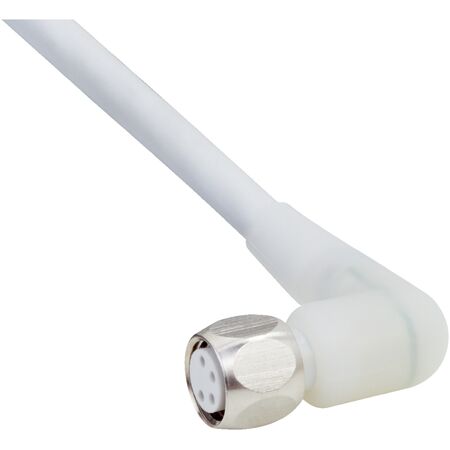

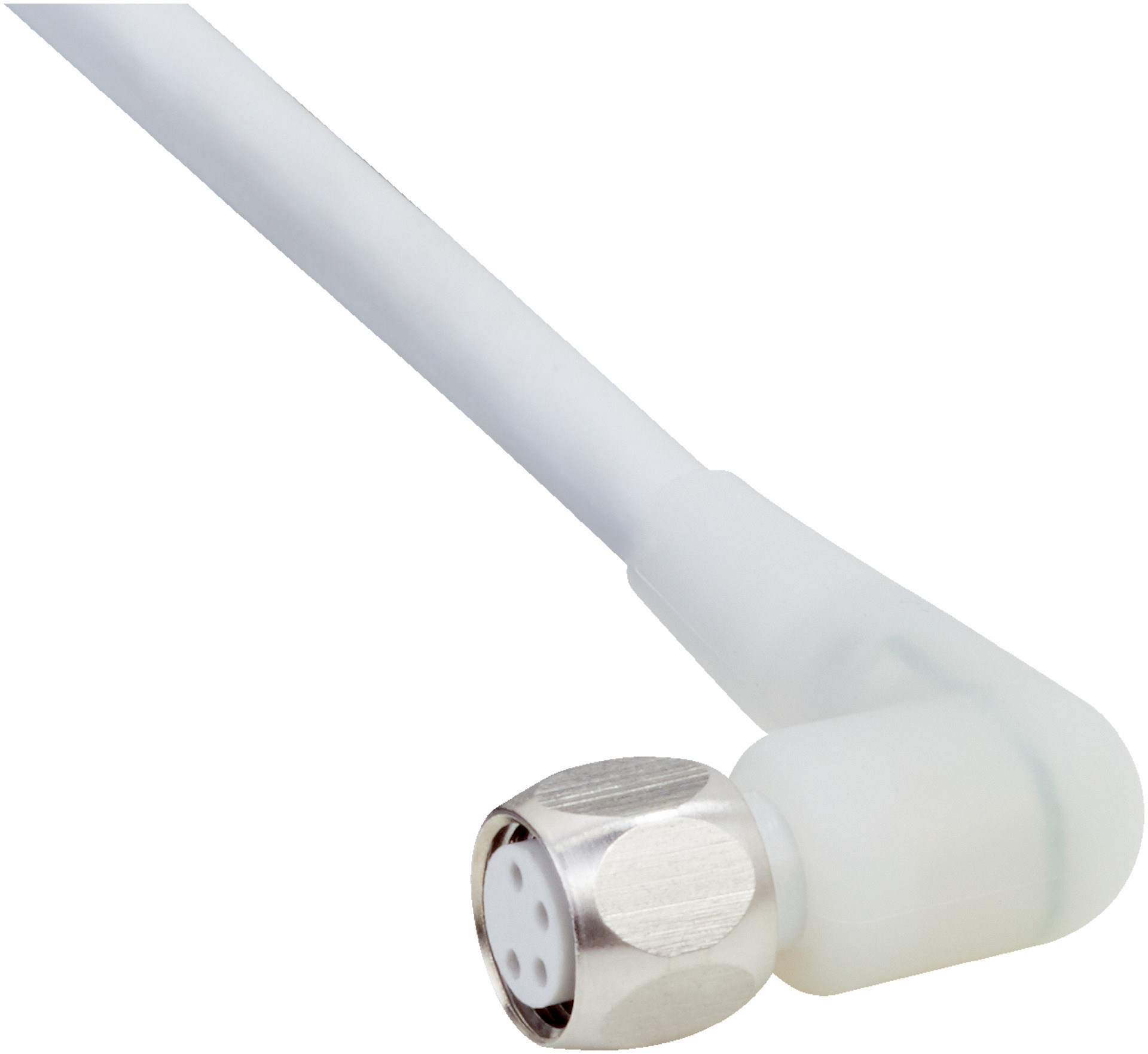

M8 4-Pin Sensor/Actuator Cable | IP67/IP69K Rated | 2m Length | LED Indicator | by SICK
The M8 4-Pin Sensor/Actuator Cable is designed for reliable connections in hygienic and washdown zones. With a robust IP67/IP69K rating, this 2m cable features a female connector, stainless steel locking nut, and an LED function indicator, making it ideal for industrial automation applications. Built to withstand extreme temperatures and chemical exposure, it ensures long-lasting performance and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled
- Connection type head B: Flying leads
- Connector material: PP
- Locking nut material: Stainless steel (V4A/1.4404/316L)
- Tightening torque: 0.6 Nm
- Cable: 2 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: >10x cable diameter
- Bending radius stationary position: >5x cable diameter
- Operating temperature flexible use: -25°C to +105°C
- Operating temperature stationary position: -40°C to +105°C
- Bending cycles: ≥ 4,000,000
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° per meter
- Enclosure rating: IP67/IP69K
- LED function indicator included
- Dimensions (H x L x W): 15mm x 2000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, angled on head A
- Flying leads on head B
- Connector material: PP with stainless steel locking nut
- Cable length: 2 m, 4-wire, PP jacket
- Operating temperature range: -25°C to +105°C (flexible use), -40°C to +105°C (stationary)
- IP67/IP69K enclosure rating for protection against dust and water
- LED function indicator
- Torsion force: 180° per meter
- Bending radius: >10x cable diameter for flexible use, >5x for stationary
- Chemical resistant to cleaning agents including lactic acid and hydrogen peroxide
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Suitable for PNP sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste
- Durable design supports long service life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-0804-L02MRN sensor/actuator cable is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
