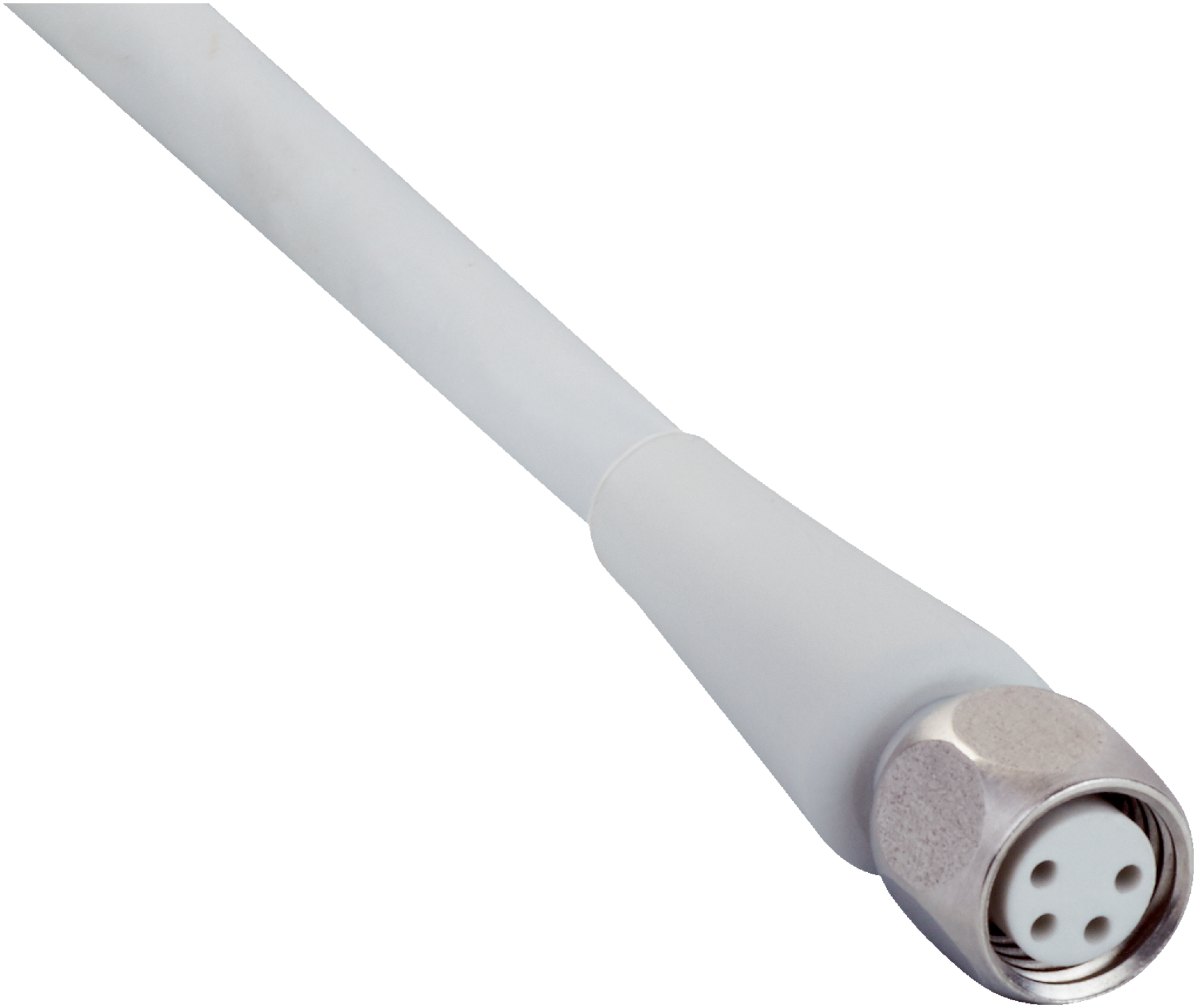

M8 4-Pin Sensor/Actuator Cable | IP67 & IP69K Rated | 5m Length | Chemical Resistant | by SICK
The M8 4-Pin Sensor/Actuator Cable is designed for reliable connections in hygienic and washdown environments. With a robust IP67/IP69K rating and a flexible operating temperature range of -25 °C to +105 °C, this 5m cable is perfect for robotics and industrial automation. Its durable design and chemical resistance ensure long service life, making it an ideal choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M8 4-pin, Actuator cable M8 connector, IP67 sensor cable, Washdown sensor cable, Hygienic sensor cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: PP
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable: 5 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary)
- Bending cycles: ≥ 4,000,000
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Enclosure rating: IP67 / IP69K
- Dimensions (H x L x W): 9mm x 5000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, straight
- Flying leads connection
- Connector material: PP with stainless steel locking nut
- Cable length: 5 m, 4-wire, PP jacket
- Operating temperature range: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary)
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Torsion force: 180° per meter
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Enclosure rating: IP67 / IP69K
- Chemical resistant including lactic acid and hydrogen peroxide
- Bending cycles ≥ 4,000,000
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Robotics
- Cold bending resistant applications
- Seawater resistant environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste.
- Durable design supports long service life, reducing environmental impact.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

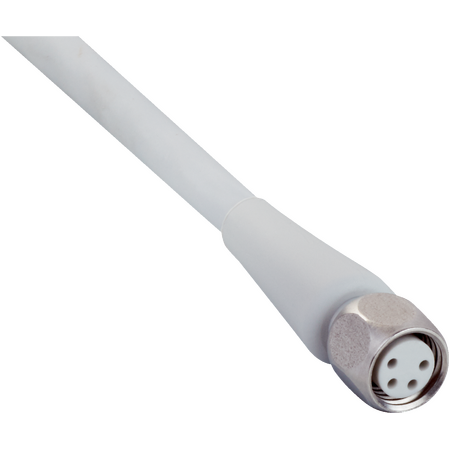

The SICK DOL-0804-G05MRN sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and hygienic environment applications.
