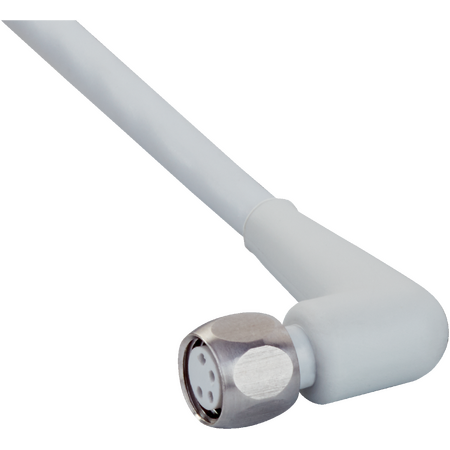

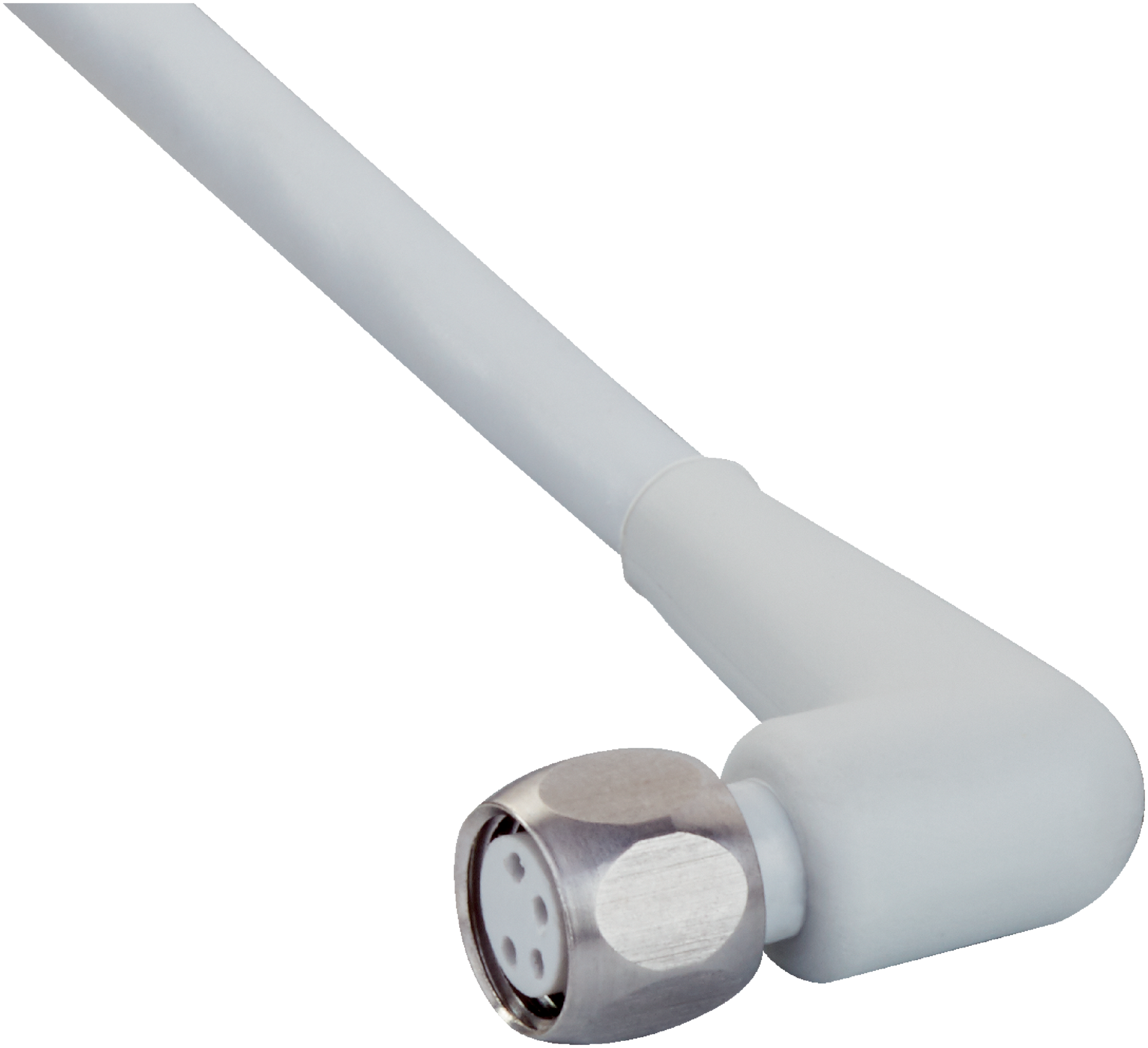

M8 4-Pin Sensor/Actuator Cable | IP67/IP69K Rated | 5m Length | Chemical Resistant | by SICK
The M8 4-Pin Sensor/Actuator Cable is designed for hygienic and washdown applications, featuring a durable 5m length and IP67/IP69K enclosure rating for protection against dust and high-pressure water. With a flexible operating temperature range of -25 °C to +105 °C, this cable is perfect for robotics and industrial automation, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M8 4-pin angled, actuator cable IP67, hygienic sensor cable, washdown sensor cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled
- Connection type head B: Flying leads
- Connector material: PP
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 5 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary)
- Bending cycles: ≥ 4,000,000
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Enclosure rating: IP67/IP69K
- Chemical resistance: Resistant to lactic acid & hydrogen peroxide (H2O2)
- Dimensions (H x L x W): 9mm x 5000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, angled on head A
- Flying leads on head B
- Connector material: PP with gray color
- Locking nut made of stainless steel (V4A/1.4404)
- Cable length: 5 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm with 0.34 mm² conductor cross section
- Unshielded sensor/actuator cable
- High bending radius and torsion force resistance (180°/1 m)
- Operating temperature range: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary)
- IP67/IP69K enclosure rating for protection against dust and high-pressure water jets
- Chemical resistant including resistance to lactic acid and hydrogen peroxide (H2O2)
- Bending cycles ≥ 4,000,000
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper connection and compliance with IP67/IP69K standards.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Robotics
- Cold bending resistant applications
- Seawater resistant environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste.
- Durable design supports long service life, reducing environmental impact.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-0804-W05MRN sensor/actuator cable is available for immediate purchase, ideal for industrial automation and hygienic applications.
