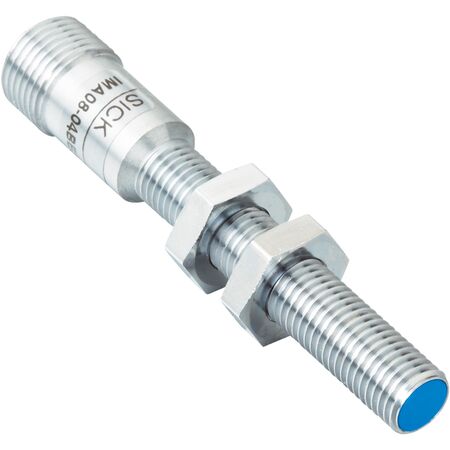

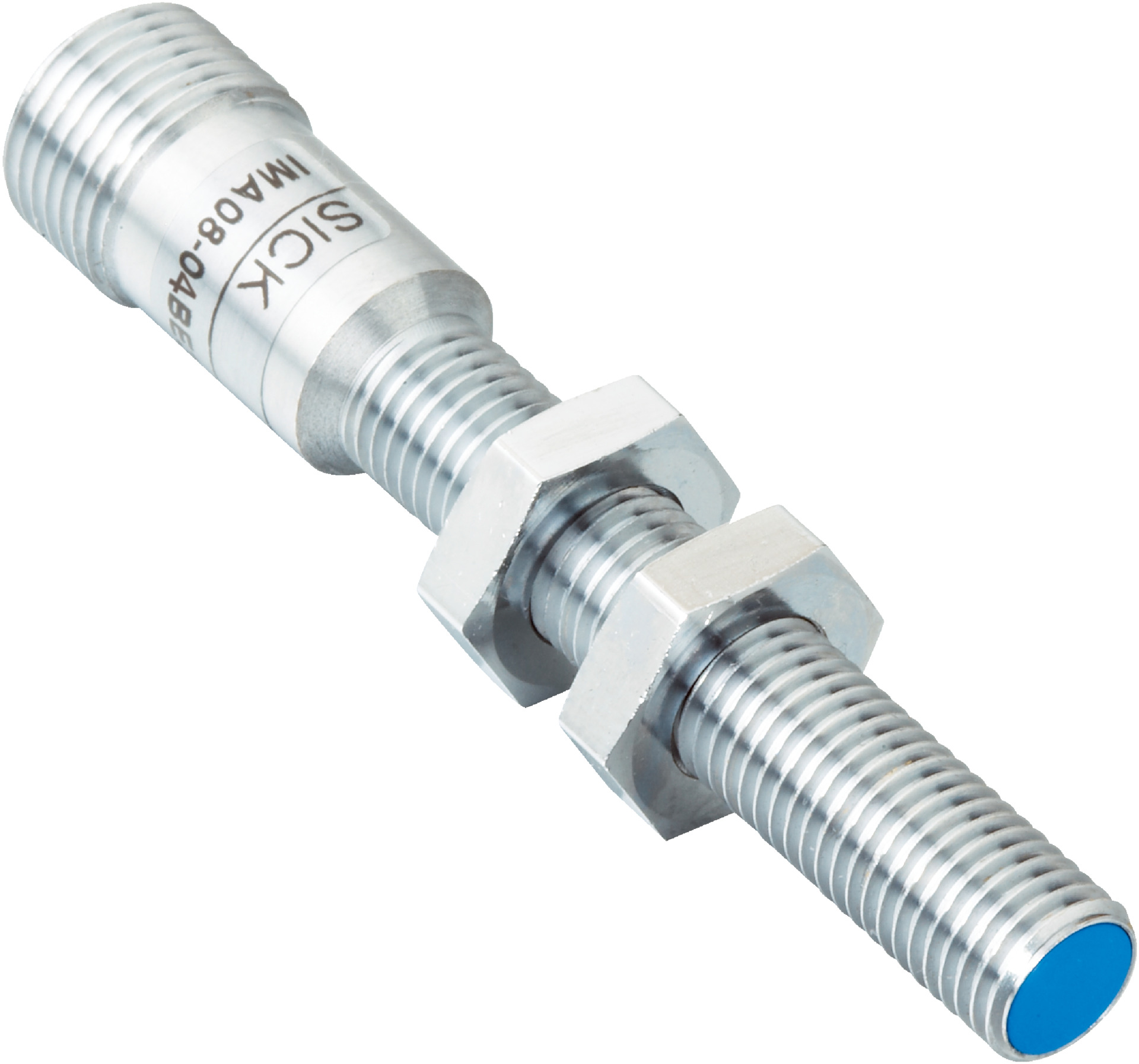

M8 Analog Proximity Sensor | Brass Housing | 0-10V Output | IP67 Rated | by SICK
The M8 Analog Proximity Sensor is designed for precise position sensing in industrial automation, featuring a sensing range of 0 mm to 4 mm and an analog output voltage range of 0 V to 10 V. With high repeatability of ±0.01 mm and an IP67 rated enclosure, this sensor is perfect for machine safety, metal detection, and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M8 x 1, brass chromium-plated
- Sensing range Sn: 0 mm to 4 mm
- Installation type: Quasi-flush
- Connection type: Male connector M12, 4-pin
- Output function: Analog 0 V to 10 V
- Repeatability: ±0.01 mm
- Resolution: ≤ 1 µm
- Enclosure rating: IP67
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 50 ms
- Temperature drift: ±5% to ±10%
- No load current: ≤ 10 mA
- Load current: ±10 mA
- Output voltage QA1 at 0 mm: 0 V to +0.4 V
- Output voltage QA1 at 2 mm: +5.2 V ±0.4 V
- Output voltage QA1 at 4 mm: +10 V ±0.4 V
- Bandwidth: 1600 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: -25 °C to +70 °C
- Housing length: 66 mm
- Thread length: 44 mm
- Dimensions (H x L x W): 8mm x 66mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric M8 x 1 threaded brass housing with chromium plating
- Analog output voltage range 0 V to 10 V
- Sensing range from 0 mm to 4 mm with quadruple sensing range
- High repeatability ±0.01 mm and resolution ≤ 1 µm
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from -25 °C to +70 °C
- Bandwidth of 1600 Hz for fast response
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor integration and wiring standards to ensure safety and optimal performance.
Applications
- Industrial automation for precise position sensing
- Machine safety and control systems
- Metal detection and measurement in manufacturing
- Robotics and assembly line monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing with chromium plating extends product life reducing waste
- Low power consumption with efficient analog output
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMA08-04BE3ZC0K Analog Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
