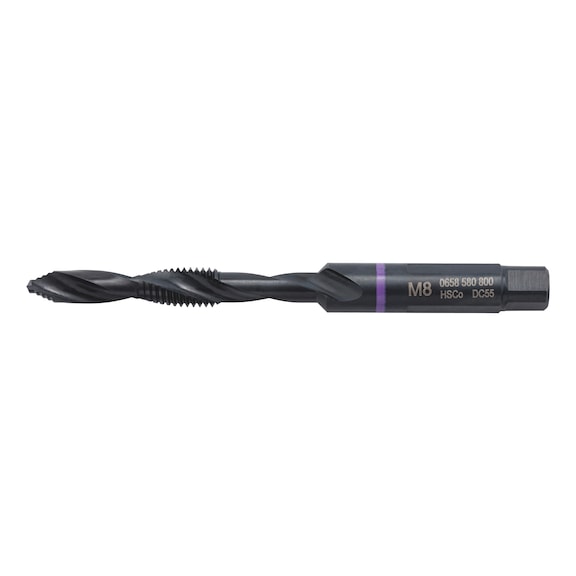

M8 Combination Screw Tap | 3-in-1 Operation | SMART STEP Technology | High-Speed Steel | by Wurth
The M8 Combination Screw Tap is engineered for efficiency, featuring 3-in-1 operation for drilling, thread cutting, and countersinking in a single step. With SMART STEP technology, it offers up to 100% faster work compared to conventional taps, making it ideal for machining steel, stainless steel, and non-ferrous metals. Designed for professional use, this tap ensures optimal centering on curved surfaces and boasts a significantly longer service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Combination Screw Tap | 3-in-1 Operation | SMART STEP Technology | High-Speed Steel | by Wurth
Brand: Wurth
SKU: 658580800
Alternatively Known As: Combination screw tap, SMART STEP screw tap, 3-in-1 thread cutter, M8 screw tap, high-speed combination tap
Technical Specifications
- Thread type x nominal diameter: M8
- Thread type: Metric thread
- Material to be processed: Steel, Cast metal, Stainless steel, Titanium, Non-ferrous metal
- Hole type: Clearance hole up to 2xD
- Quality: ZEBRA-Premium
- Suitable for machine type: Cordless screwdrivers, Drill, Pedestal drilling machine
- Pitch: 1.25 mm
- Length: 103 mm
- Shank diameter: 10.0 mm
- Size of square: 8.0 mm
- Cutting material: HSCo
- Surface: Vaporised
- Shank style: Combination of 3-face and cylinder shank with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Service life (points system): 4 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 4 of 4 points
- Cutting behaviour (points system): 4 of 4 points
- Chip formation (points system): 4 of 4 points
- Suitable for tensile strength up to: 1200 N/mm²
- Material of sub-group: General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, White cast iron, Stainless steels (various types), Titanium and alloys, Special alloys, Hardox, Spring steels, Aluminium and alloys, Copper, Brass, Bronze, Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 10mm x 103mm x 10mm
- Weight: 0.1 kg
Key Features
- 3 in 1 operation: drilling, thread cutting, and countersinking/deburring in a single step
- SMART STEP technology enables up to 100% faster work than conventional combination screw taps
- Optimal centring on curved surfaces with high-precision, perfectly circular holes
- Suitable for thicker workpieces with material thickness up to 2xD
- Newly developed shank combining 3-flat and straight shank with square drive
- Significantly longer service life compared to conventional combination screw taps
- True-to-the-gauge through hole thread according to ISO 2 (6H)
- Product packaging made from 100% PCR recycled plastic and is fully recyclable
- Exclusive availability from Wurth
Professional Installation Requirements
- Use with appropriate coolant and lubricant is required. Suitable for use with cordless drill drivers, hand-held, pillar, and upright drills. Proper handling and safety measures should be followed during operation.
Applications
- Suitable for machining steel, cast metal, stainless steel, titanium, and non-ferrous metals
- Ideal for use with cordless screwdrivers, drills, and pedestal drilling machines
- Designed for through hole threads in various materials including plastics and special alloys
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is 100% recyclable, reducing environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth Premium Combination Screw Tap with SMART STEP Technology M8 is available for immediate purchase. Ideal for professional machining applications requiring efficient and precise thread cutting.
