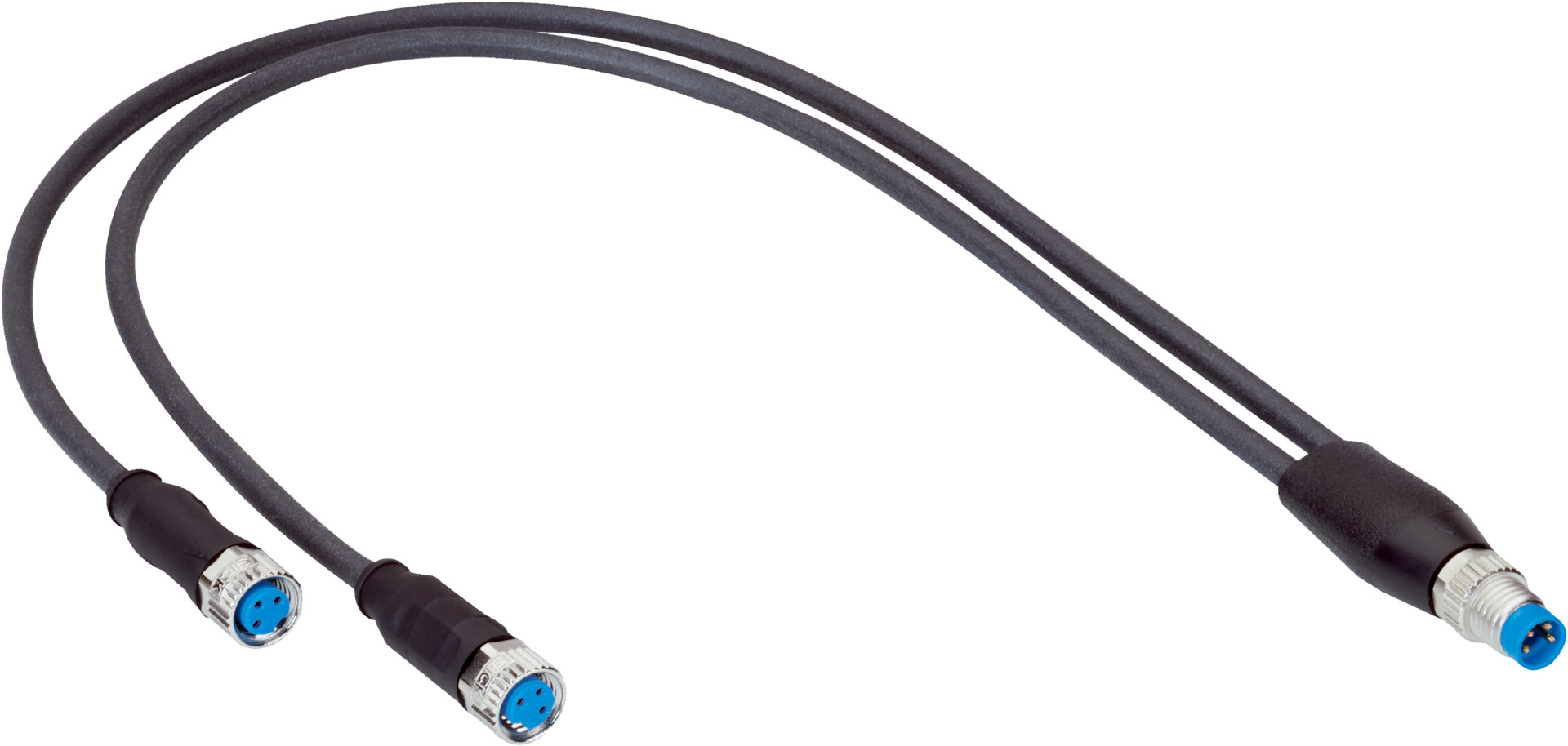

M8 Connector Cable Assembly | Male & Female A-Coded Connectors | IP65/IP66K/IP67 Rated | by SICK
The M8 Connector Cable Assembly features male and female A-coded connectors, ensuring reliable connections for industrial automation and sensor applications. With a robust halogen-free PUR cable and an impressive IP65/IP66K/IP67 protection rating, this cable is designed to withstand harsh environments, making it perfect for machine building and factory automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M8, 4-pin, A-coded
- Connection type head B: Female connector, M8, 3-pin, A-coded
- Connection type head C: Female connector, M8, 3-pin, A-coded
- Locking plug connector: Screw connection
- Connecting cable: 0.3 m, 3-wire, PUR, halogen-free
- Cable material: PUR, halogen-free
- Connector material head A/B/C: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Width across flats: 9 mm
- Tightening torque: 0.4 Nm
- Shielding: Unshielded
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Insulation resistance: 100 MΩ
- Contamination rating: 3
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Dimensions (H x L x W): 9mm x 30mm x 9mm
- Weight: 0.1 kg
Key Features
- Male and female M8 connectors with A-coding for reliable connections
- Screw locking plug connector for secure attachment
- Halogen-free PUR cable material for environmental safety
- High protection rating: IP65 / IP66K / IP67 for dust and water resistance
- Wide operating temperature range from -40°C to +85°C
- Unshielded cable with 4 A current loading capacity
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor connections
- Machine building and factory automation
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable material reduces environmental impact and improves safety in case of fire
- Durable construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

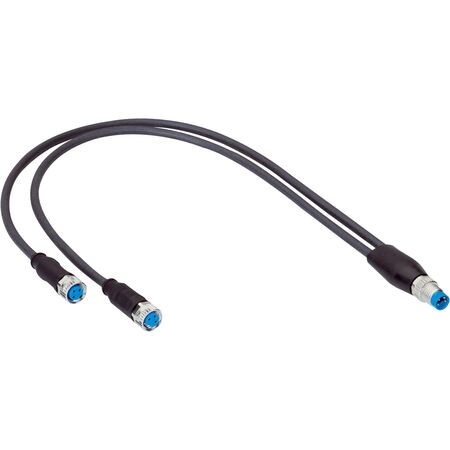

The SICK YM8U14-C30UA1FY8A3 M8 Connector Cable Assembly is available for immediate purchase, ideal for industrial automation and sensor connection applications.
