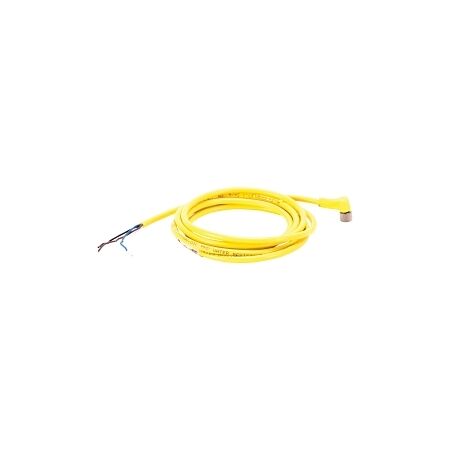

M8 Cordset Cable 4 Pin | 24AWG Pico Female | IP67 Rated | 2m Yellow by NHP
M8 cordset cable with 4-pin female connector and 24AWG wire—ideal for industrial automation and machinery connections. Built for durability, with IP67 rating and -20 to 105°C operating range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AB 889P Cordset Cable PVC Yellow 4 Pin 24AWG Pico Female Right Angle M8 Unshielded 2m
Brand: NHP
SKU: 889PR4AB2
Alternatively Known As: M8 Cordset, 4 Pin Connector Cable, Pico Female Cable
Technical Specifications
- Rated Current: 4 A
- Rated Voltage: 60 V
- Number of Poles: 4
- Type of Plug: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Other
- Material of Contact Surface: Gold
- Degree of Protection: IP67
- Mounting Method: Freely positionable
- AWG Size: 24
- Cable Diameter: 4.6 mm
- Cable Length: 2000 mm
- Operating Temperature: -20 to 105 °C
- Dimensions (H x L x W): 5mm x 2000mm x 5mm
- Weight: 0.3 kg
Key Features
- 4-pin female connector for reliable connections.
- IP67 rated for protection against dust and water.
- Operating temperature range of -20 to 105 °C.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, machinery connections
- Commercial: Equipment and device connectivity
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 889P Cordset Cable is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable connectivity.
Non-Returnable & Non-Cancellable
