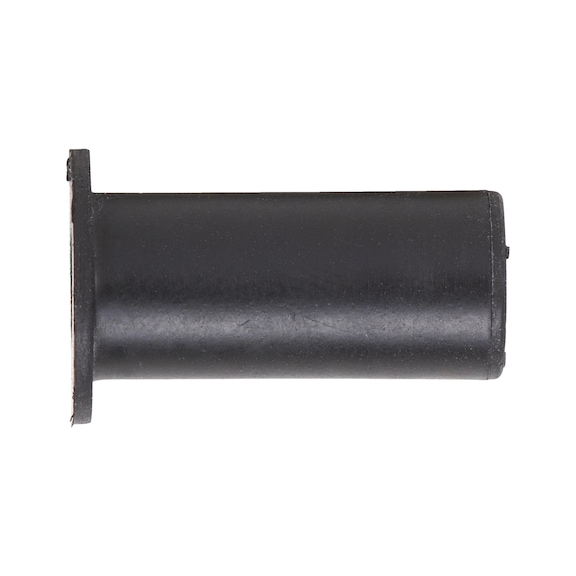

M8 Detachable Electrically Insulating Rivet | Vibration Damping | Ozone-Resistant Material | by Wurth
The M8 Detachable Electrically Insulating Rivet is designed for reliable fastening in automotive and industrial applications. With its vibration and noise-damping features, this rivet ensures a secure connection while being suitable for various materials. Built from ozone-resistant chloroprene, it performs well in temperatures ranging from -30°C to +80°C, making it ideal for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Detachable Electrically Insulating Rivet | Vibration Damping | Ozone-Resistant Material | by Wurth
Brand: Wurth
SKU: 9487580
Alternatively Known As: Electrically Insulating Rivet, Vibration Damping Rivet, Detachable Rivet Fastener, M8 Rivet Connector
Technical Specifications
- Thread type x nominal diameter (D): M8
- Head diameter (d1): 22.0 mm
- Outer diameter (d2): 15.9 mm
- Length (l1): 27.9 mm
- Head height (k1): 5.7 mm
- Min./max. grip range (s1): 3.9-9.5 mm
- Material: Chloroprene with brass insert
- Max. drill hole diameter: 16.2 mm
- Min. tightening torque: 1 Nm
- Min./max. tightening torque: 1-1.5 Nm
- Min. processing temperature: -30 °C
- Max. processing temperature: 80 °C
- Shore A hardness: 60
- Head type: Dome head
- Dimensions (H x L x W): 5.7mm x 27.9mm x 22mm
- Weight: 0.1 kg
Key Features
- Detachable and electrically insulating rivet connection
- Vibration and noise-damping function
- Dual function as thread carrier or fastener
- Air and moisture-tight connection
- Ozone-resistant material
- Installation temperature range from -30°C to +80°C
- Ideal for various materials
Professional Installation Requirements
- Installation should be performed by trained personnel familiar with rivet fastening techniques to ensure proper torque and secure fastening.
Applications
- Fastening metal and plastic connections in automotive, industrial, and construction applications
- Suitable for use in blind or pocket holes
- Ideal for vibration and noise damping fastening solutions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable and reusable fastening solution reduces waste
- Ozone-resistant material enhances product longevity
- Supports secure fastening reducing maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Detachable Electrically Insulating Rivet Connection M8 is available for immediate purchase, ideal for industrial and automotive fastening applications.
