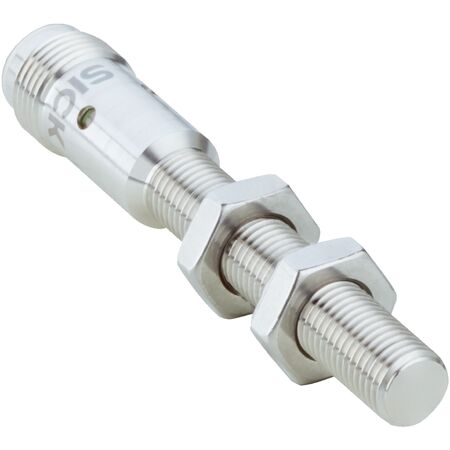

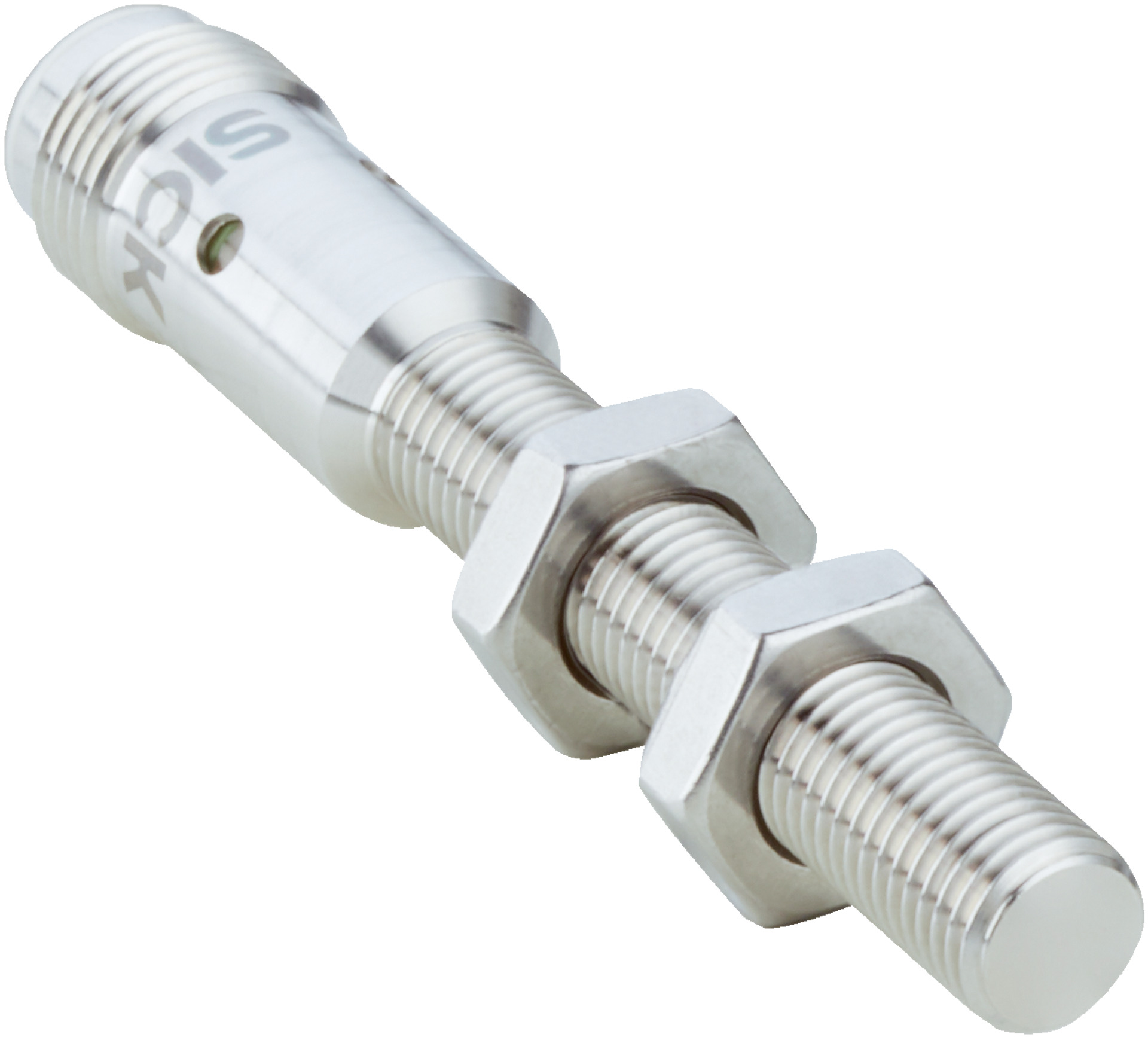

M8 Flush Mount Proximity Sensor | IP68 & IP69K Rated | Stainless Steel V4A | PNP NC Function | by SICK
The M8 Flush Mount Proximity Sensor is designed for reliable sensing in hygienic and washdown zones, featuring an IP68 and IP69K rating for high protection. With a sensing range of 2 mm and a robust stainless steel V4A housing, this sensor is perfect for industrial automation and process control, ensuring durability and compliance with stringent safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm / 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Thread length: 43 mm
- Tightening torque max: ≤ 7 Nm
- Dimensions (H x L x W): 70mm x 70mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric housing with M8 x 1 thread size
- Flush installation type
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Switching frequency of 100 Hz
- PNP switching output with NC function
- Male connector M12, 4-pin connection
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A, resistant to cleaning agents
- Suitable for hygienic and washdown zones
- Mounting nut included made of V4A stainless steel
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper mounting and electrical connection.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation and process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces waste and extends product life
- High ingress protection minimizes environmental contamination and sensor failure
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMI08-02BPONC0S sensor is available for immediate purchase, ideal for industrial automation in hygienic and washdown environments.
