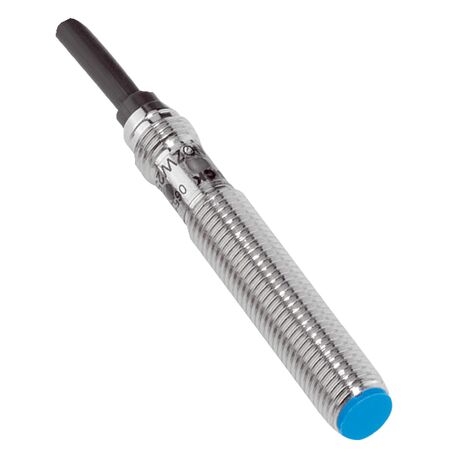

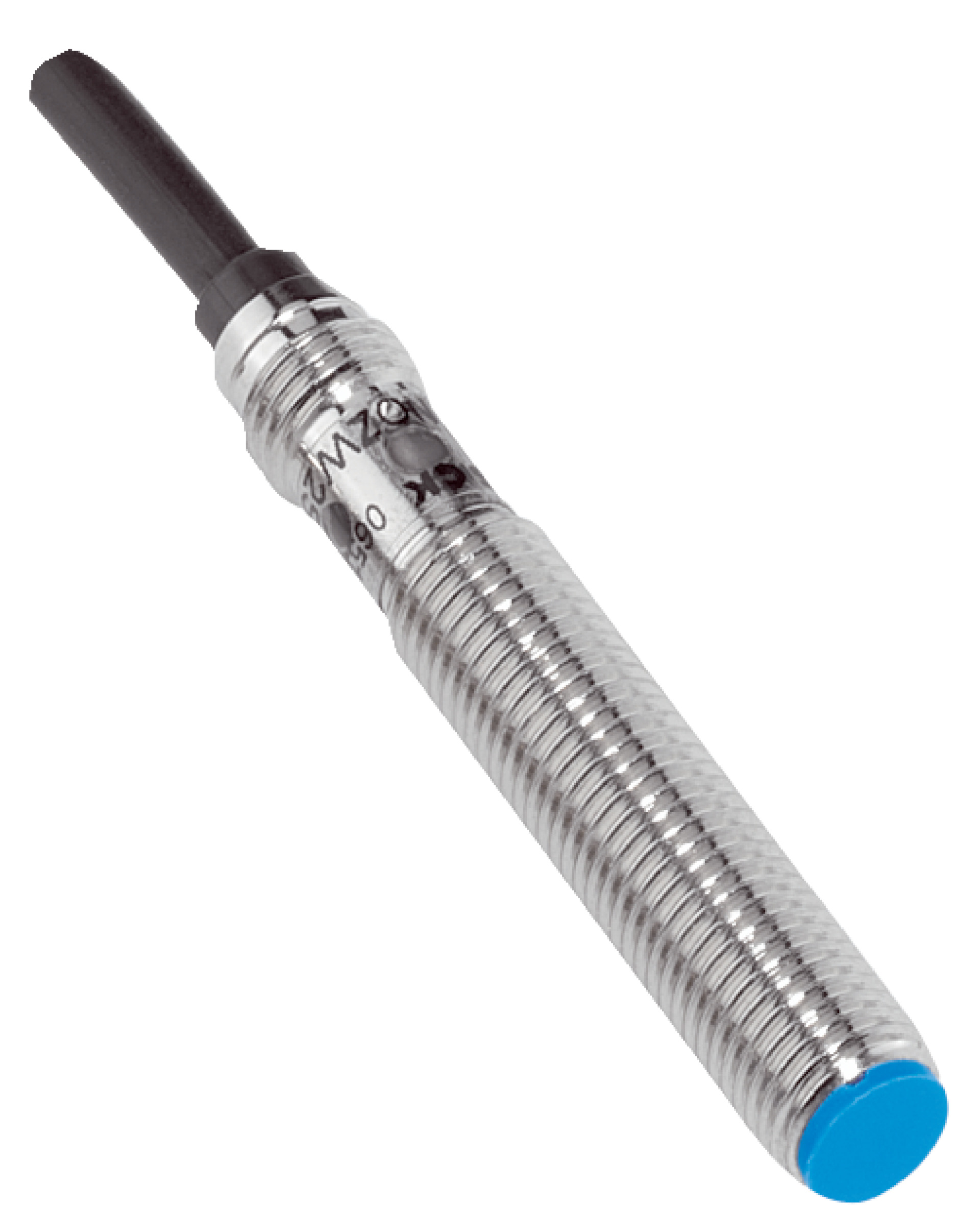

M8 Inductive Proximity Sensor | 2mm Sensing Range | IP67 Rated | Flush Mount Design | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 2mm sensing range and IP67 enclosure rating. Ideal for position sensing and metal detection in manufacturing lines, this sensor offers a robust design with shock and vibration resistance, ensuring durability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Cable material: PVC, diameter Ø 3.9 mm
- Conductor size: 0.25 mm²
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing length: 52 mm
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- Output function: Normally closed (NC)
- Electrical wiring: DC 2-wire
- Enclosure rating: IP67
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M8 x 1 thread size with 2 mm sensing range
- Flush installation type with IP67 enclosure rating
- Switching frequency up to 4,000 Hz
- 2-wire DC electrical wiring with NC output function
- Oil-resistant 2 m cable connection
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide ambient operating temperature range from -25°C to +75°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Oil-resistant cable extends sensor lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IME08-02BDOZY2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
