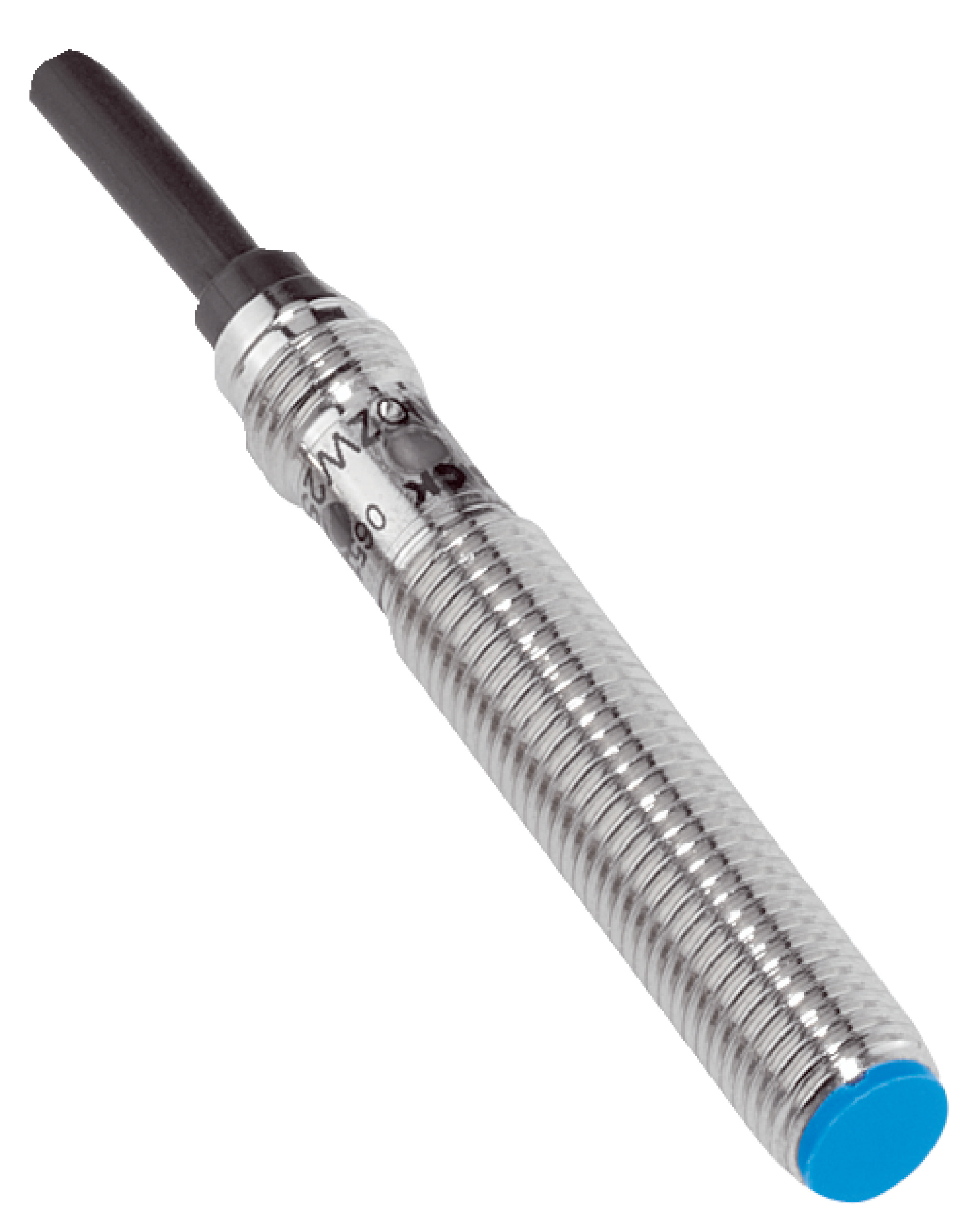

M8 Inductive Proximity Sensor | 2mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a 2mm sensing range and an IP67 rating for dust and water protection. With a high switching frequency of 4,000 Hz and a durable brass housing, this sensor is perfect for machine safety and control systems, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing length: 52 mm
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M8 x 1 thread size with 8 mm diameter
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- Cable connection, 2-wire, 2 m length, oil-resistant
- Normally open (NO) output function
- Electrical wiring: DC 2-wire
- Enclosure rating IP67 for dust and water protection
- Includes mounting nuts, steel, nickel-plated (2 pieces)
- Short-circuit protection included
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Oil-resistant cable extends product life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

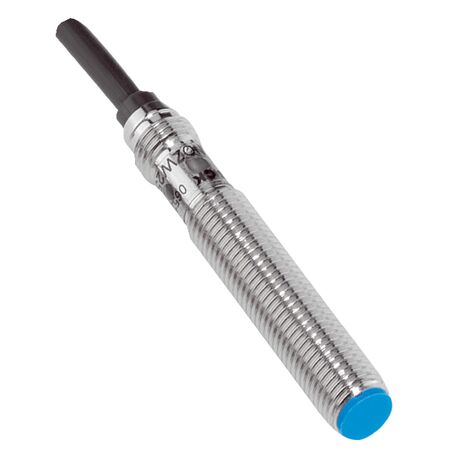

The SICK IME08-02BDSZY2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
