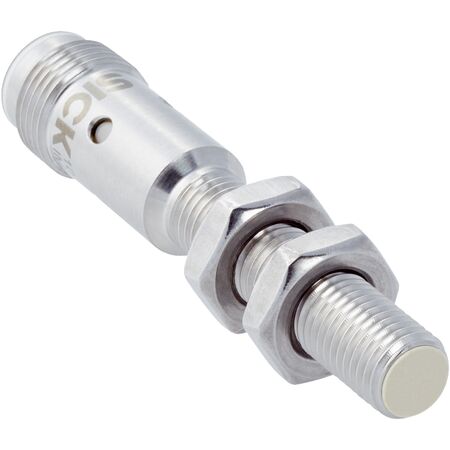

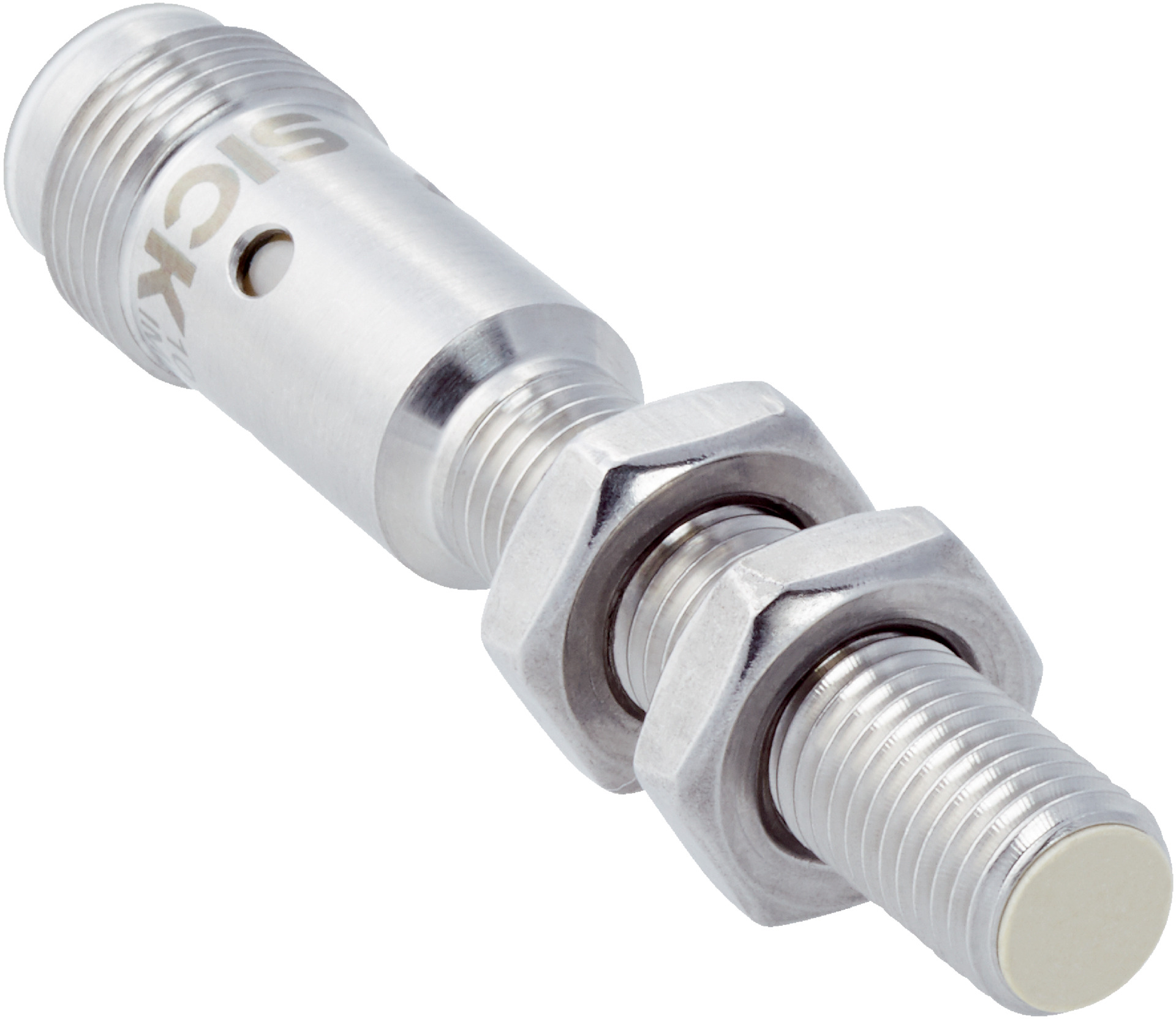

M8 Inductive Proximity Sensor | 2mm Sensing Range | IP68 & IP69K Rated | 4000Hz Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for reliable automation and manufacturing process control, featuring a 2mm sensing range and a high switching frequency of 4,000 Hz. With an IP68 and IP69K rating, it withstands dust and high-pressure washdown, making it ideal for hygienic zones and industrial machinery monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Switching frequency: 4,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP complementary
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 11 ms / 1000 cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 15 g
- Ambient operating temperature: -40°C to +100°C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 60mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Flush installation type with 2 mm sensing range
- High switching frequency of 4,000 Hz
- PNP complementary switching output with DC 4-wire electrical wiring
- IP68 and IP69K rated for protection against dust and high-pressure washdown
- Resistant to cleaning agents and temperature resistant from -40°C to +100°C
- Equipped with IO-Link V1.0 communication interface
- Shock and vibration resistant with high durability
- Includes mounting nuts made of V4A stainless steel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Automation and manufacturing process control
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial machinery and equipment monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to cleaning agents enabling hygienic maintenance without damage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMF08-02BPPNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
